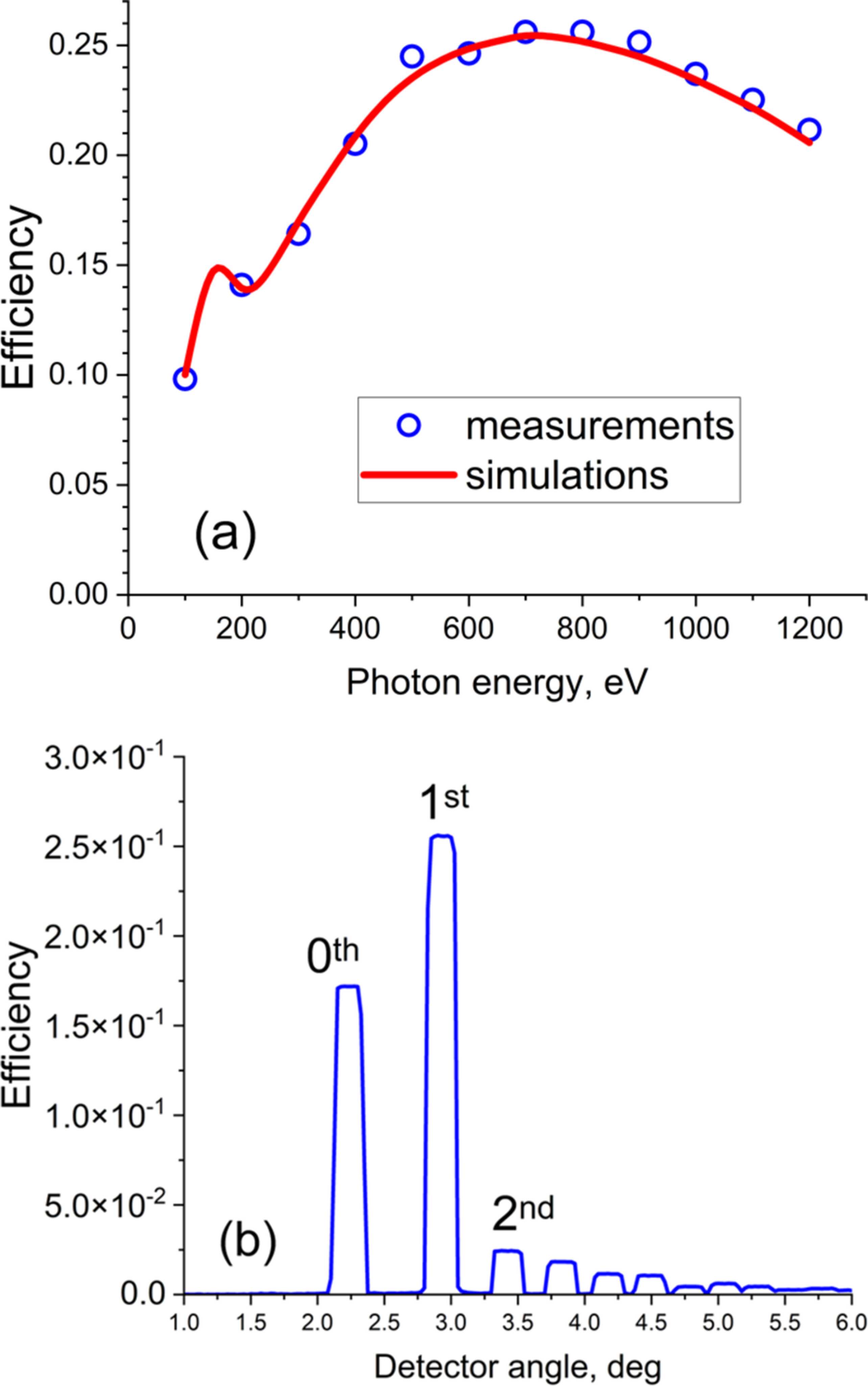

Figure 8
(a) Experimental (symbols) and simulated (curve) efficiency of the 1st diffraction order of the Au coated grating. The simulations were performed for a groove depth of 18.3 nm and land-to-pitch ratio of 0.33 measured in the center of the grating. (b) Detector scan at an energy of 700 eV.
