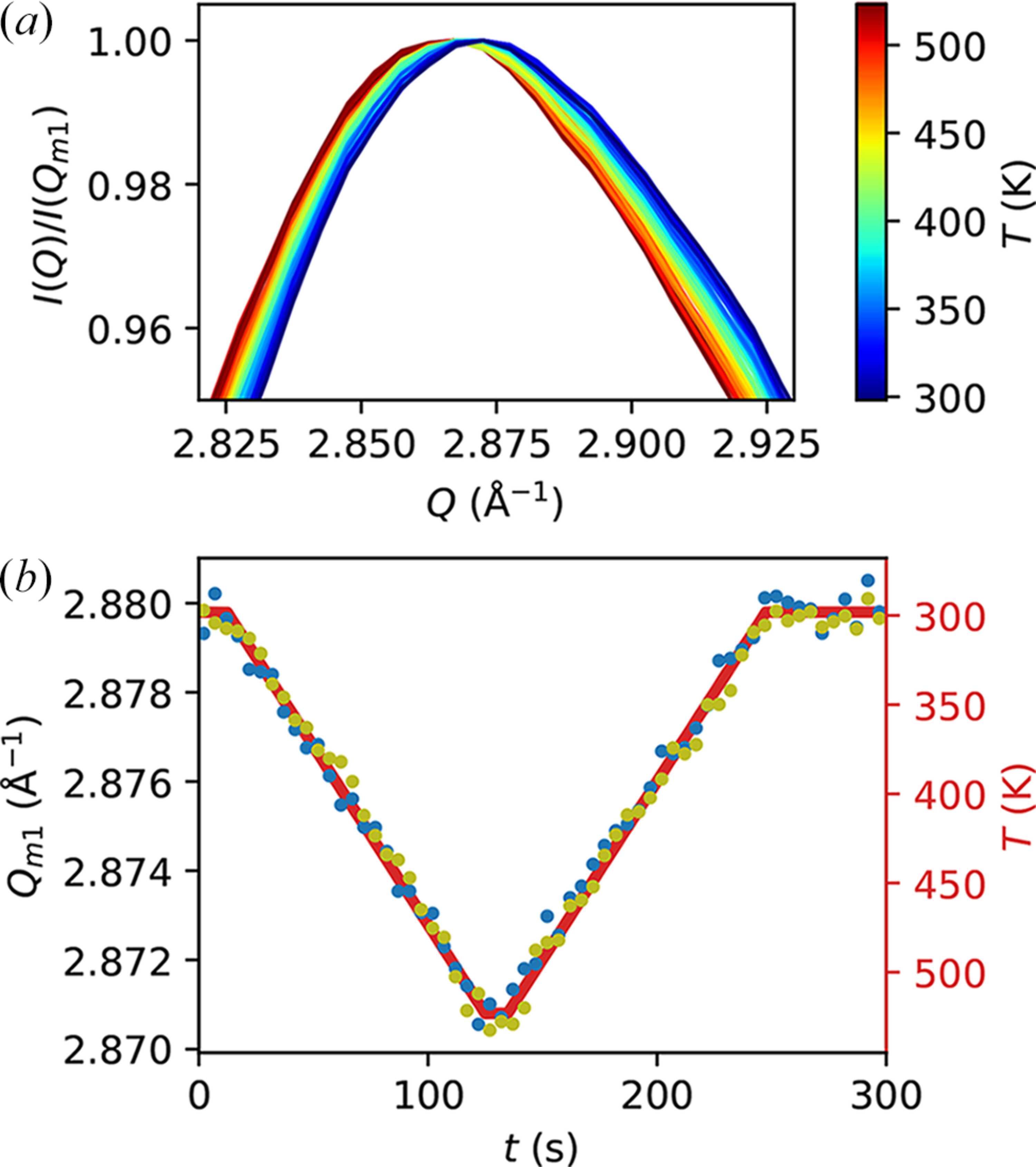

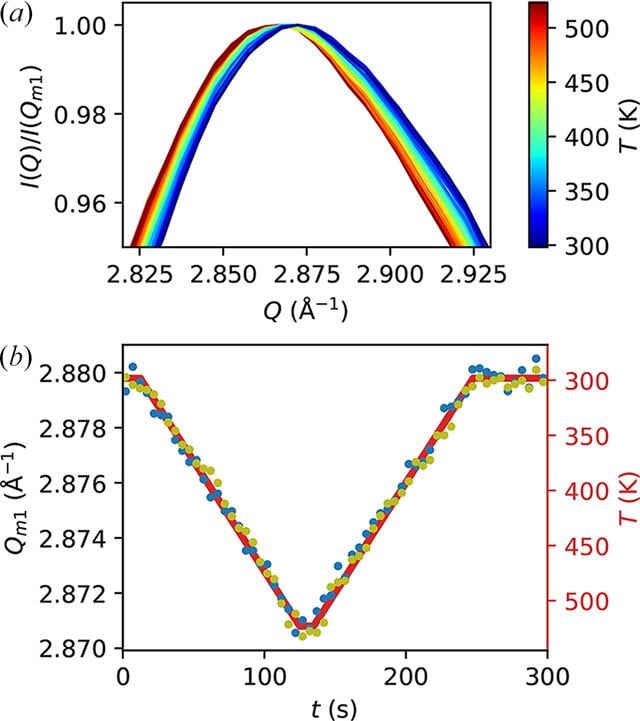

Figure 3
Demonstration of in situ X-ray diffraction during an FSC scan. (a) Intensity profile I(Q) normalized by its maximum value, focusing on the vicinity of the first sharp diffraction peak to show its temperature dependence during the heating and cooling ramps of a scan. From dark blue to dark red, the curves show increasing temperatures, as indicated by the color bar. (b) Blue and yellow dots show the center position of the first sharp diffraction peaks, Qm1, as a function of time during two different scans. The temperature program is shown as the red line (right y axis).
