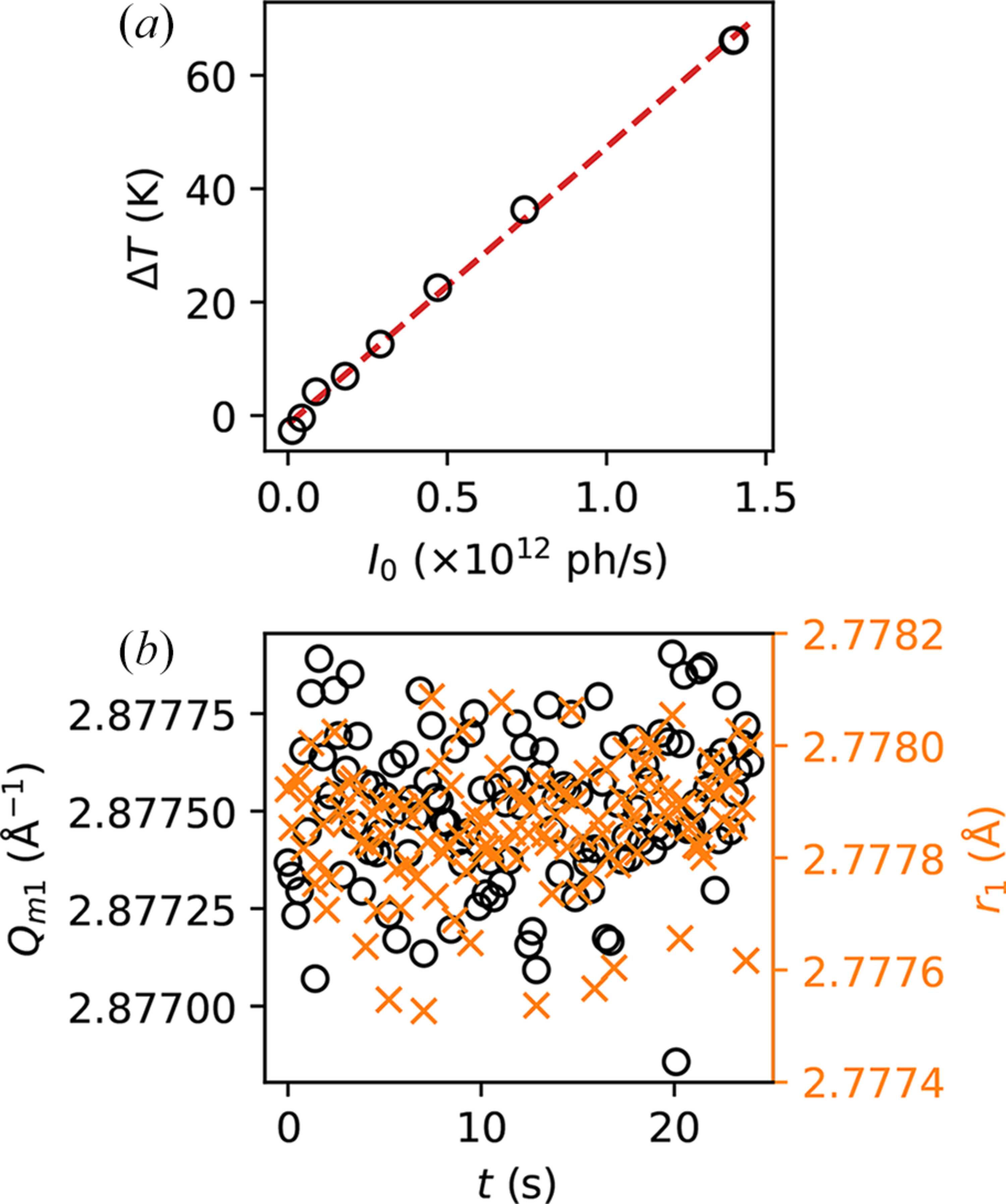

Figure 5
(a) Effective temperature rise due to X-ray beam. Data points (black circles) are calculated by extracting the difference of Qm1 at each incoming flux with respect to Qm1 at the lowest flux (0.3% transmission, about ∼4.2 × 109 photons s−1), and converted to ΔT using the linear relation obtained from Fig. 3[link]. The red dashed line shows a linear fit. (b) Qm1 position (black circles, left y axis) and r1 position (orange crosses, right y axis) as a function of time under full beam. No significant changes are observed.
