Figure 1

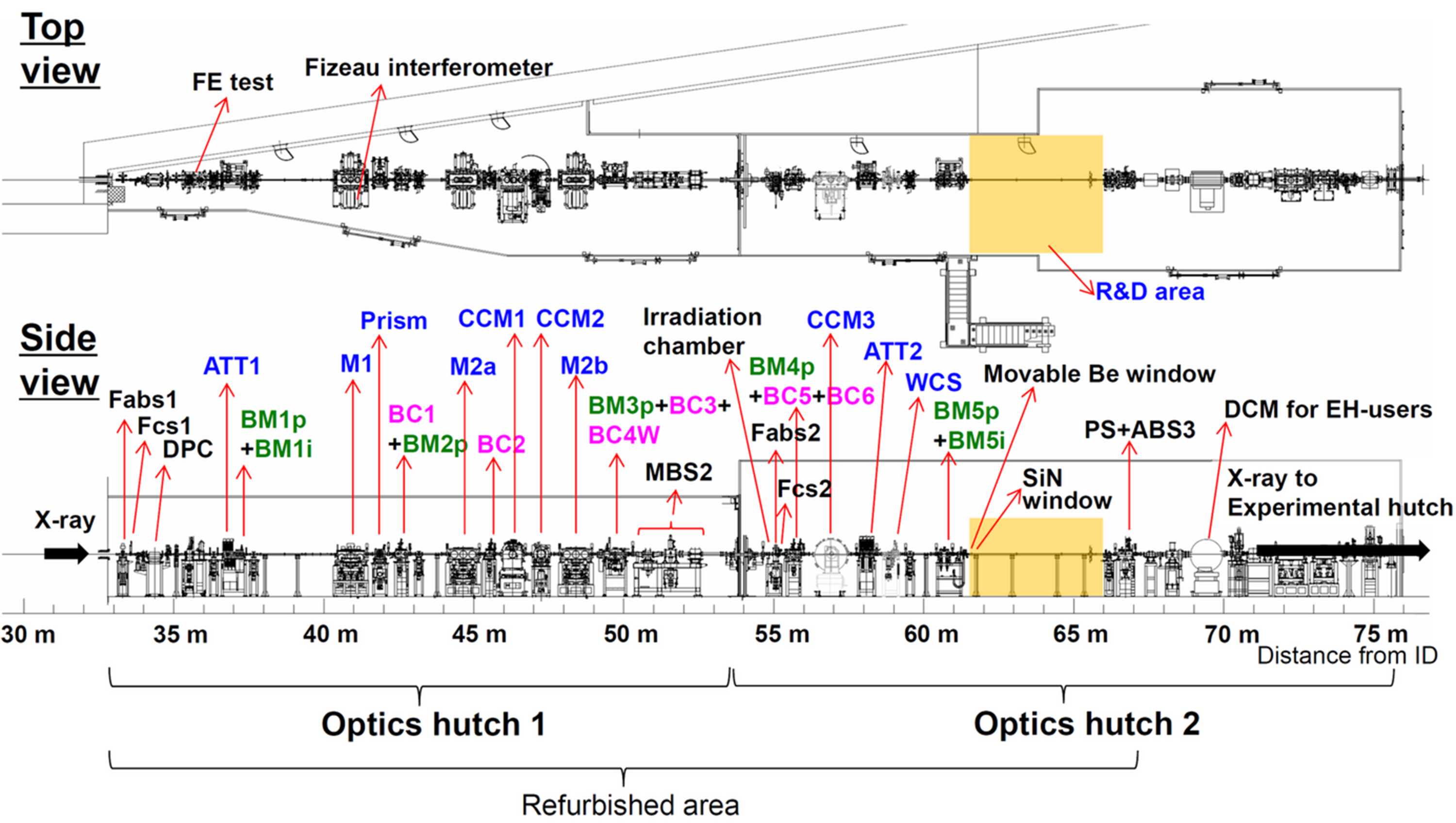

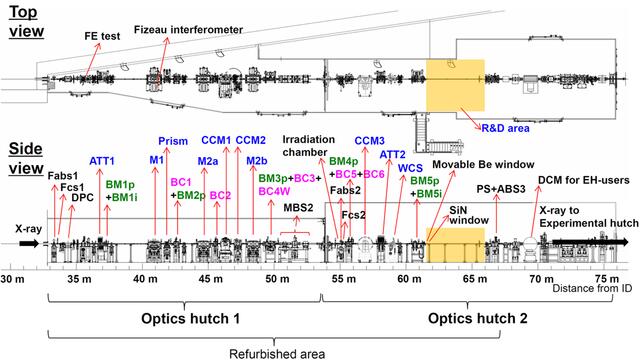

Configuration of beamline instruments. ATT: attenuator; M (M1, M2a, M2b): mirror; CCM: channel-cut monochromator; BM1p–BM5p: beam profile monitors; BM1i, BM5i: beam intensity monitors; BC: beam catcher; BC4W: BC with tungsten shutter; Fabs: fast absorber; Fcs: fast closing shutter; DPC: differential pump chamber; MBS2: main beam shutter 2; WCS: water cooling slits; PS: pink-beam stopper; ABS: absorber; DCM: double crystal monochromator.
