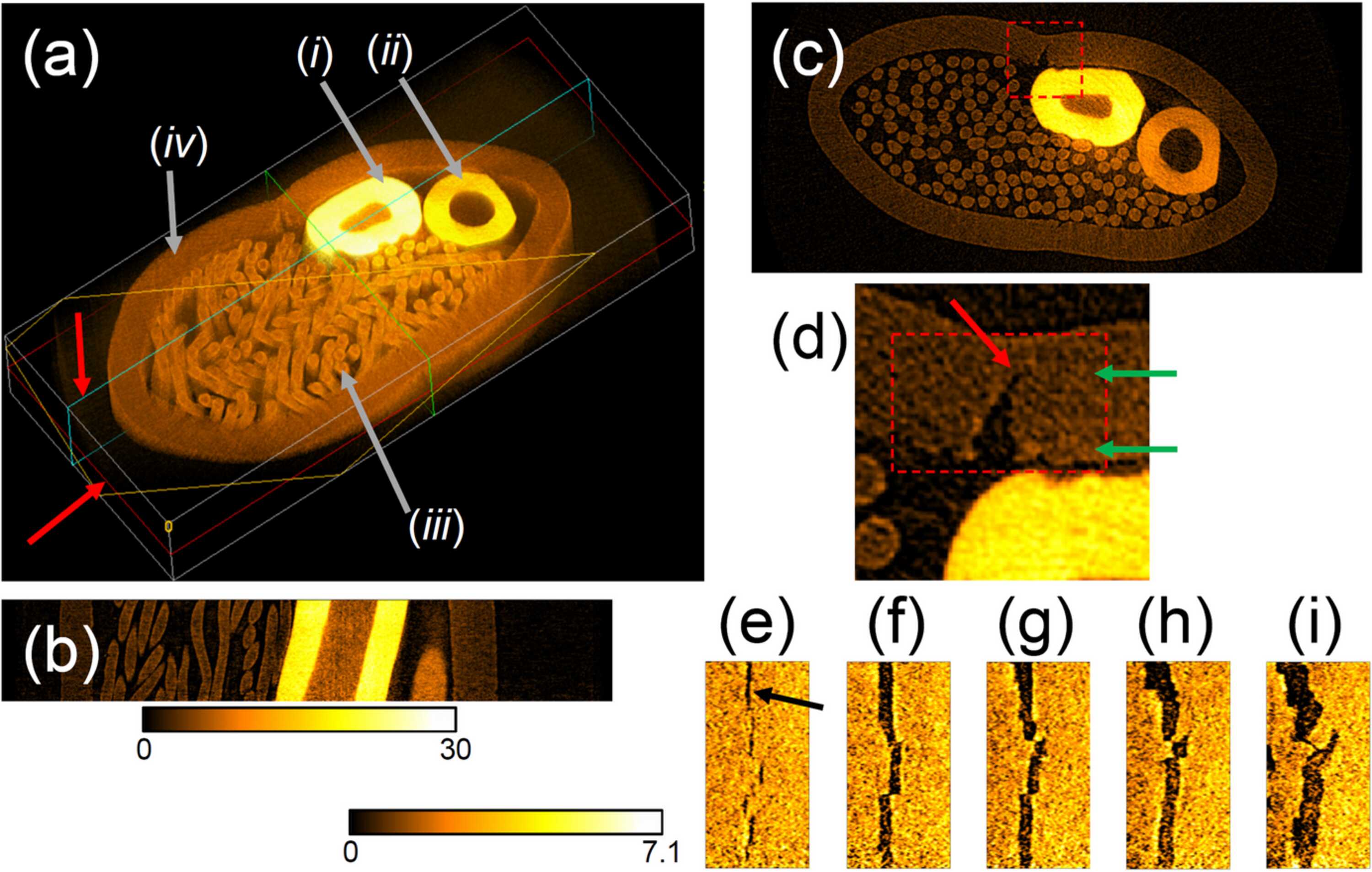

Figure 14
Computed tomography of a sample containing four metallic materials with a data acquisition time of 29.9 ms. (a) A three-dimensional reconstruction with a cross-sectional view along the yellow cross section. The white box in (a) measures 4.1 mm × 1.9 mm × 0.68 mm. (b, c) Cross-sectional views along the green and red sections indicated by the red arrows in (a). (d) Magnified view of the rectangular area indicated by the red dashed line in (c). The red arrow in (d) and black arrow in (e) indicate a crack. Panels (e)–(i) illustrate cross-sectional views of the rectangular area indicated by the red dashed line in (d) parallel to the green arrows. The dimensions of (e)–(i) are 336 µm × 676 µm. The distances between each cross-sectional view are 48 µm (ef), 8 µm (fg), 16 µm (gh) and 20 µm (hi). The color bars below (b) and to the left of (e) represent the linear attenuation coefficient (cm−1) for (b)–(d) and (e)–(i), respectively.
