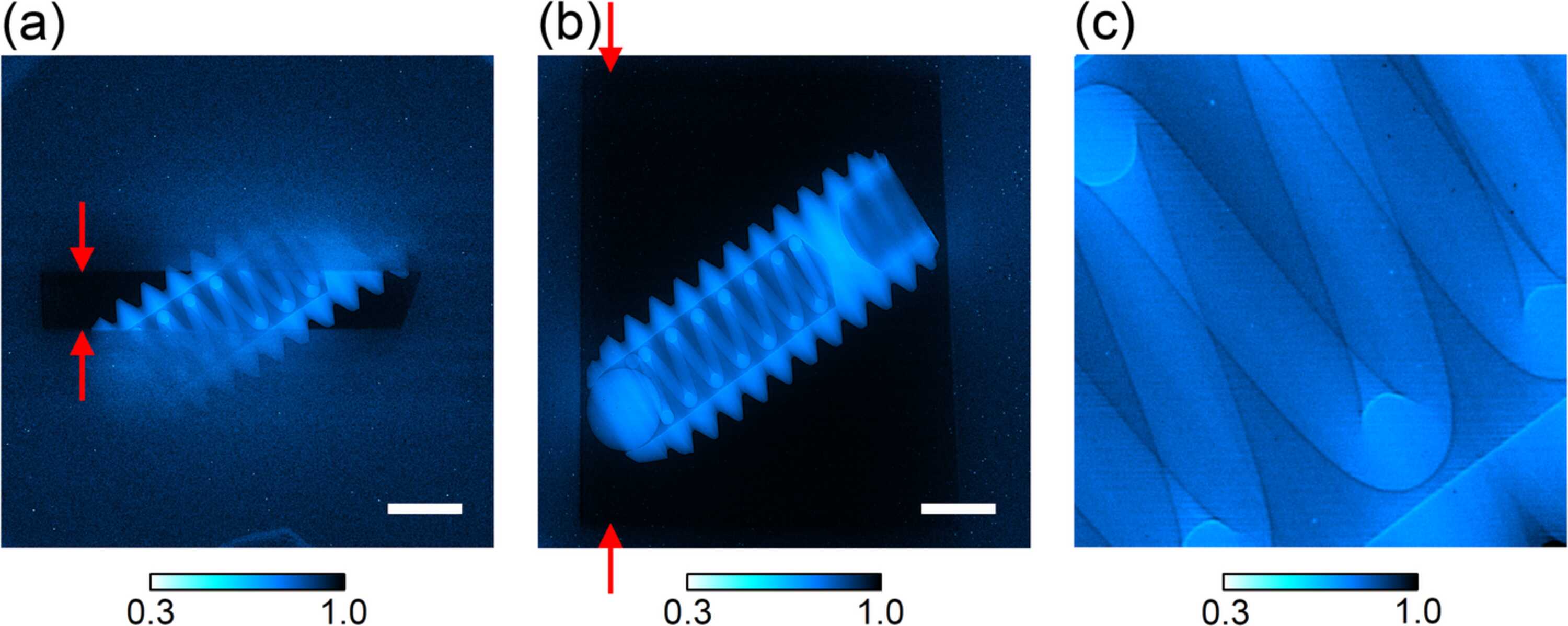

Figure 15
Evaluation result of RBE. Transmitted images of a sample ball plunger using (a) the standard beam and (b) the beam enlarged by the RBE. The vertical beam size, as indicated by the arrows, increased from 0.78 mm to 6.1 mm after the RBE enlargement. A magnified view of the 1 mm × 1 mm area at the center of (b) is shown in (c). The color bars represent transmittance ranging from 0.3 to 1.0. The scale bars represent 1 mm.
