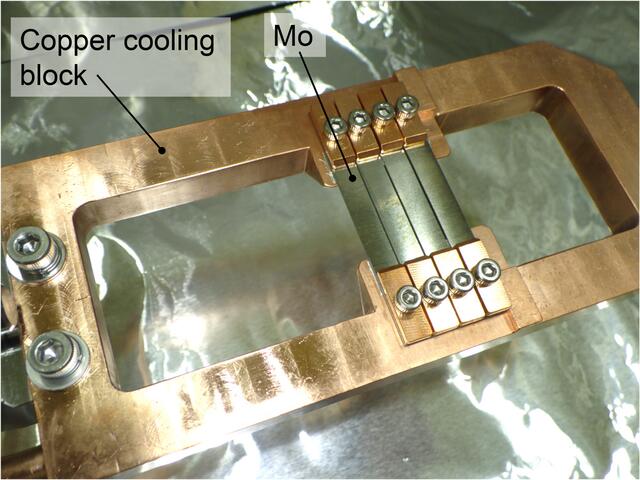

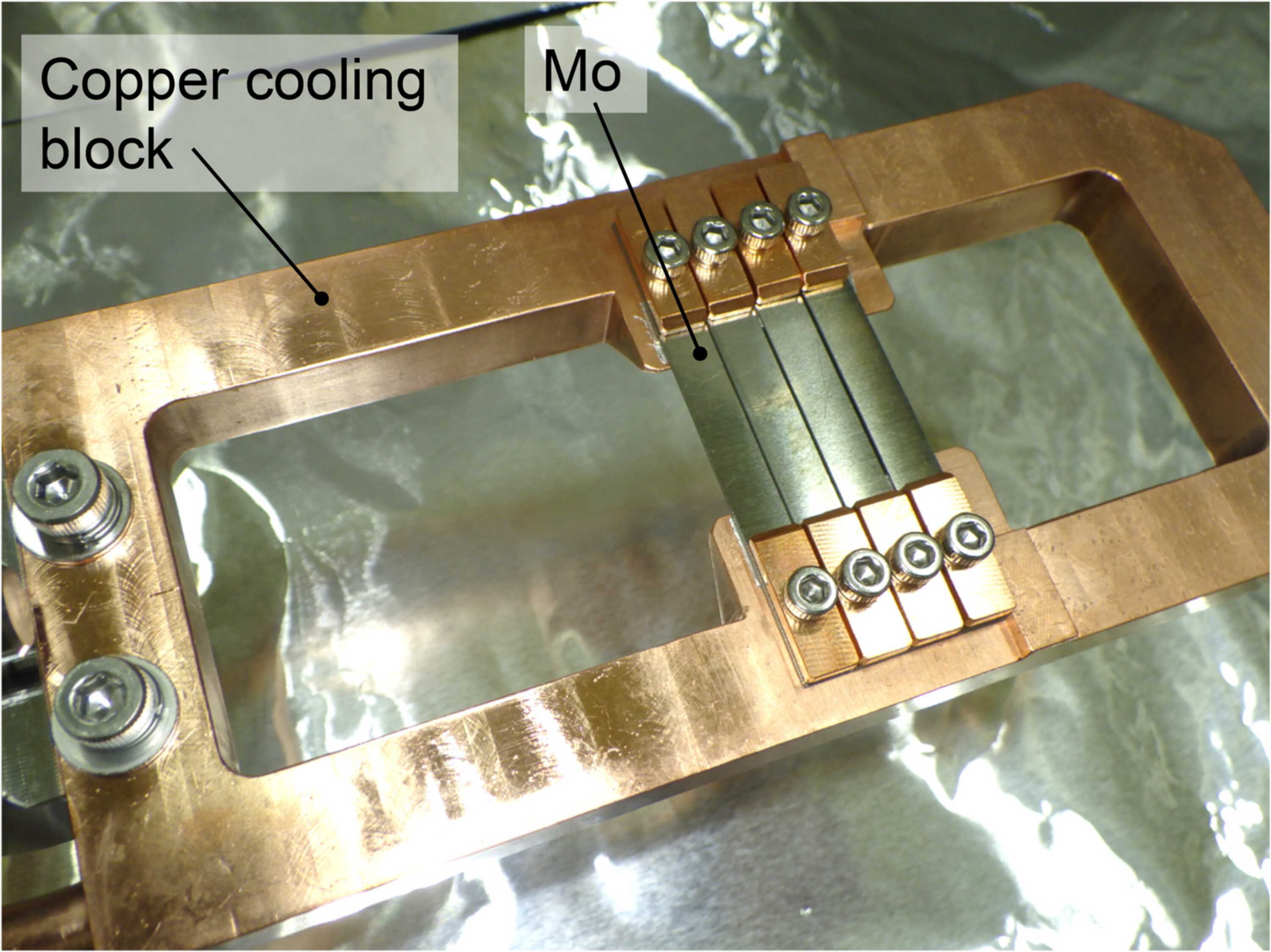

Figure 5
Photograph of axis number 5 (Mo) in the ATT2 assembly. Attenuation plates are attached to a copper block, which has a brazed copper tube on its back side to circulate cooling water. The attenuators consist of stacked molybdenum plates, each with a thickness of 0.4 mm, resulting in total thicknesses of 0.4, 0.8, 1.2 and 1.6 mm.
