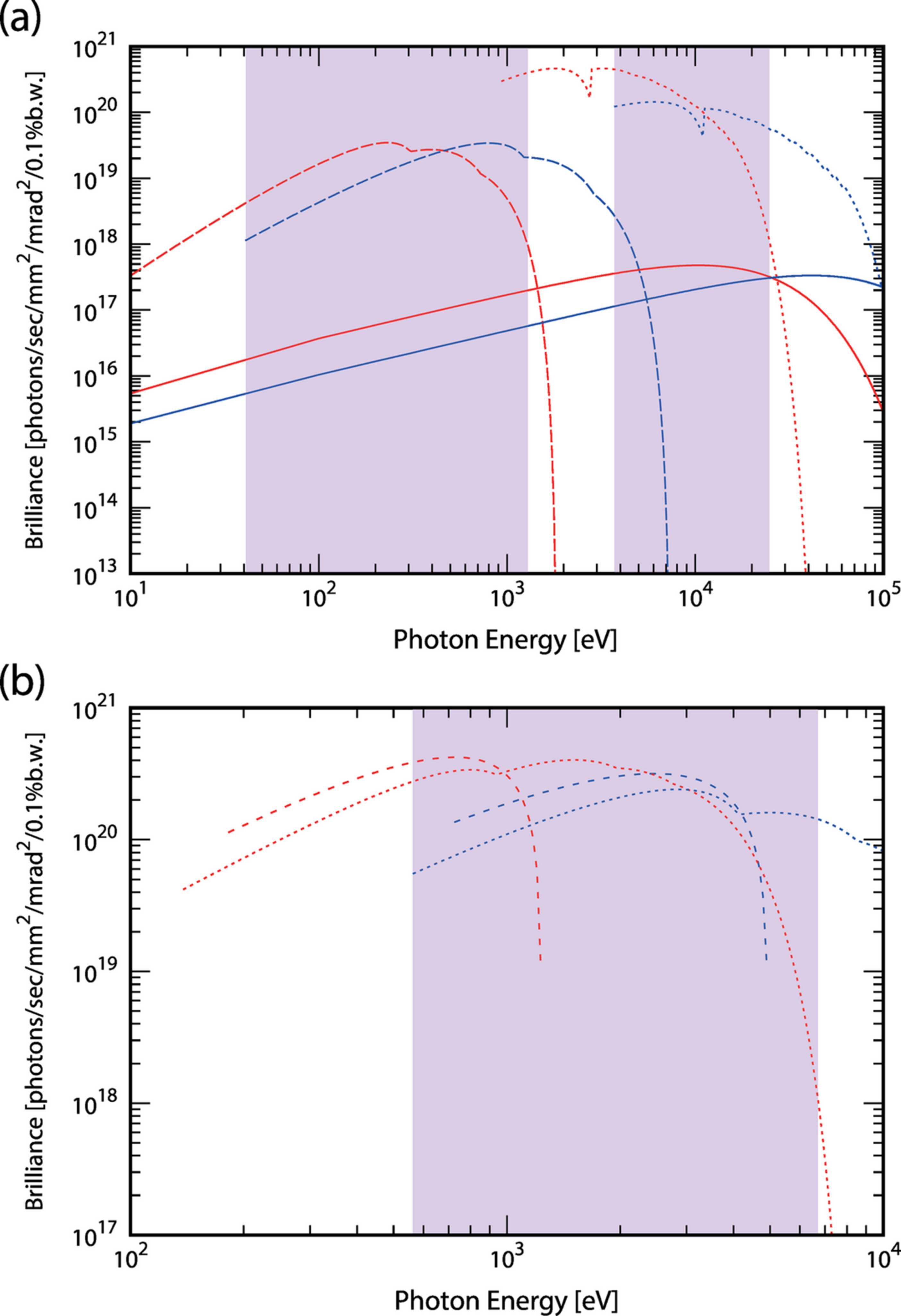

Figure 3
Brilliance of the typical insertion devices operated at 2.5 GeV (red lines) and 5.0 GeV (blue lines). The areas highlighted in purple indicate the wavelength range available for both 2.5 GeV and 5.0 GeV. (a) Spectra from the six-row type variable polarization type undulator (1st–5th harmonics), in-vacuum undulator (1 m, 1st–15th) and superconducting multipole wiggler, in broken, dotted and solid lines, respectively, and (b) those from the APPLE-II type variable polarization undulator, broken and dotted lines for circular (1st) and linear (1st–5th) polarization modes, respectively.
