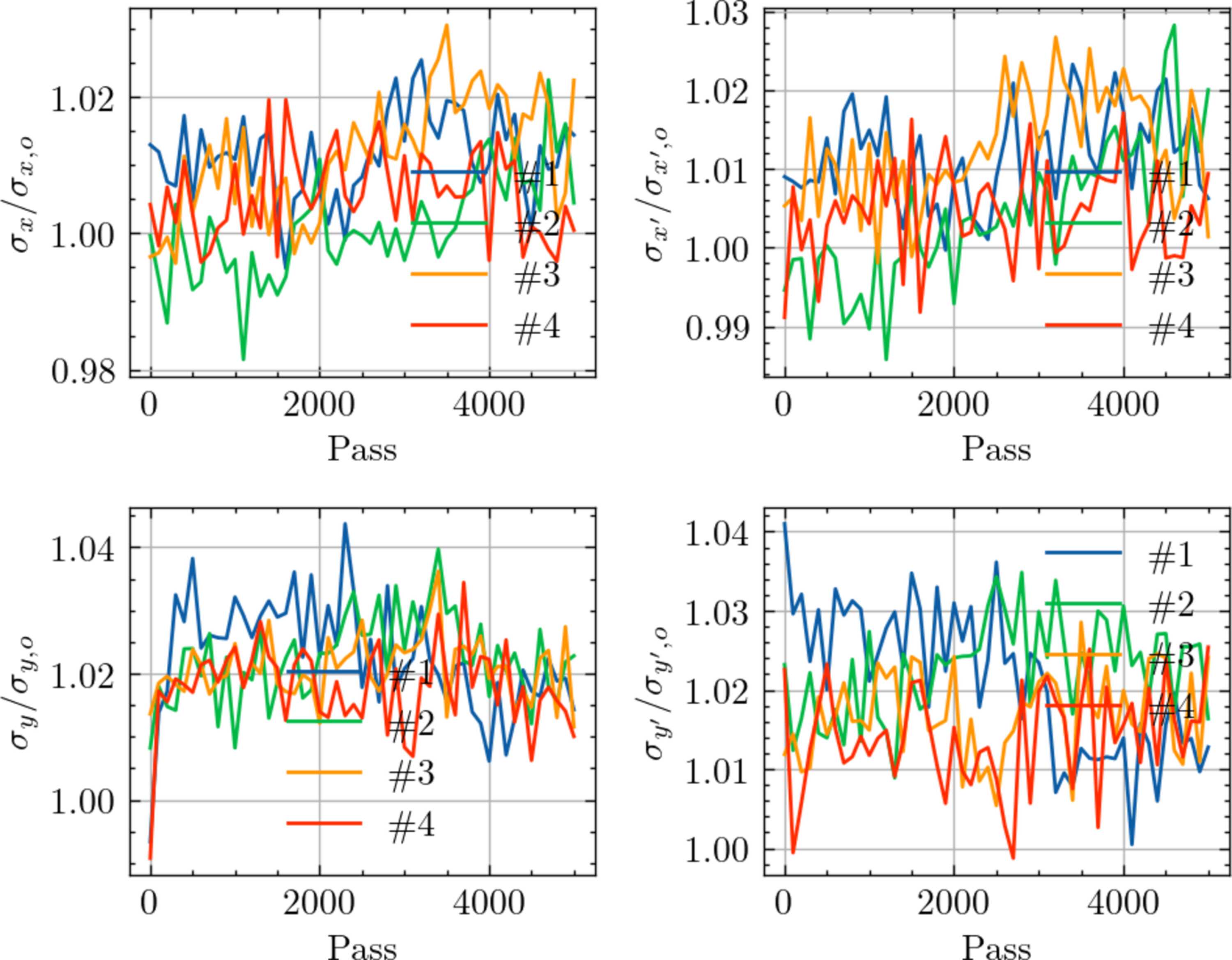

Figure 11
Comparative analysis of beam parameters growth at the midpoint of the adjacent downstream straight section of the TDC2, showing variations with and without TDCs across four cases. The top left and bottom left plots display the evolution of horizontal and vertical beam sizes (σx and σy), respectively, relative to their ideal values (σx,o and σy,o) over the number of turns. The top right and bottom right plots illustrate the evolution of horizontal and vertical divergences ([\sigma_{x^{\prime}}] and [\sigma_{y^{\prime}}]), relative to their ideal values ([\sigma_{x^{\prime},o}] and [\sigma_{y^{\prime},o}]). The ideal values represent beam parameters without the use of TDCs. Different colored lines correspond to the tracking results of Case #1, Case #2, Case #3 and Case #4.
