Figure 4

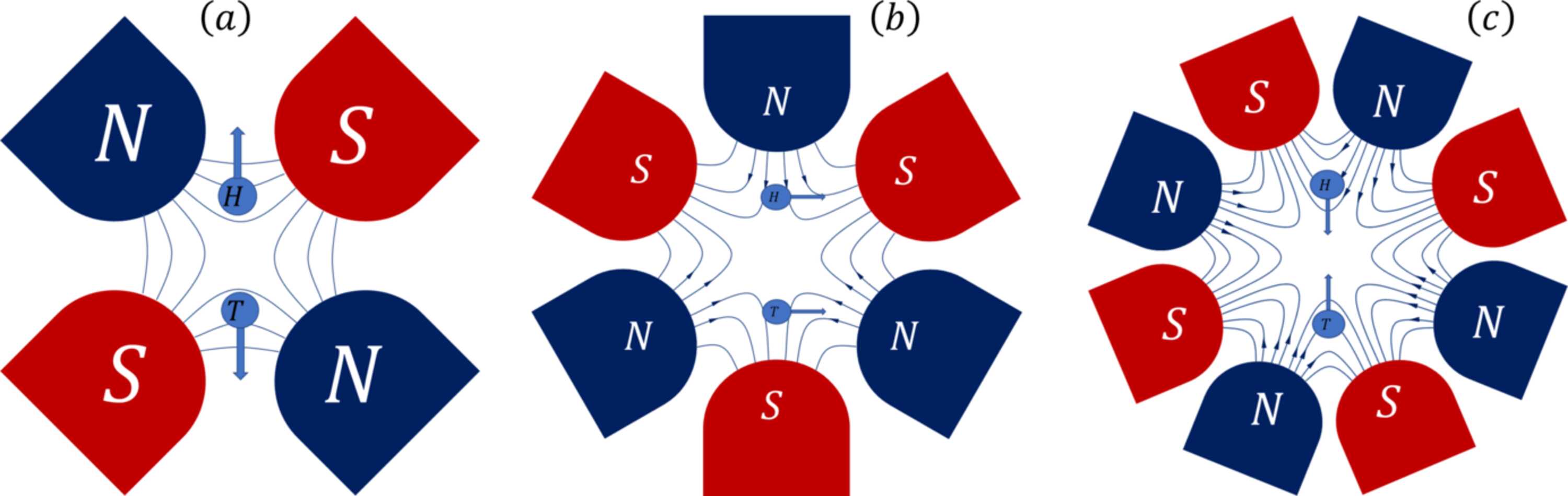

Schematic representation of the magnetic field lines and the forces experienced by vertically separated microbunches as they pass through different types of magnets. (a) In a quadrupole magnet, the upper microbunch is subjected to an upward force, while the lower microbunch experiences a downward force, affecting their vertical separation. (b) In a sextupole magnet, both microbunches experience forces in the same horizontal direction, potentially leading to horizontal offsets or coupling effects. (c) In an octupole magnet, the forces resemble those in a quadrupole, similarly affecting beam dynamics.
