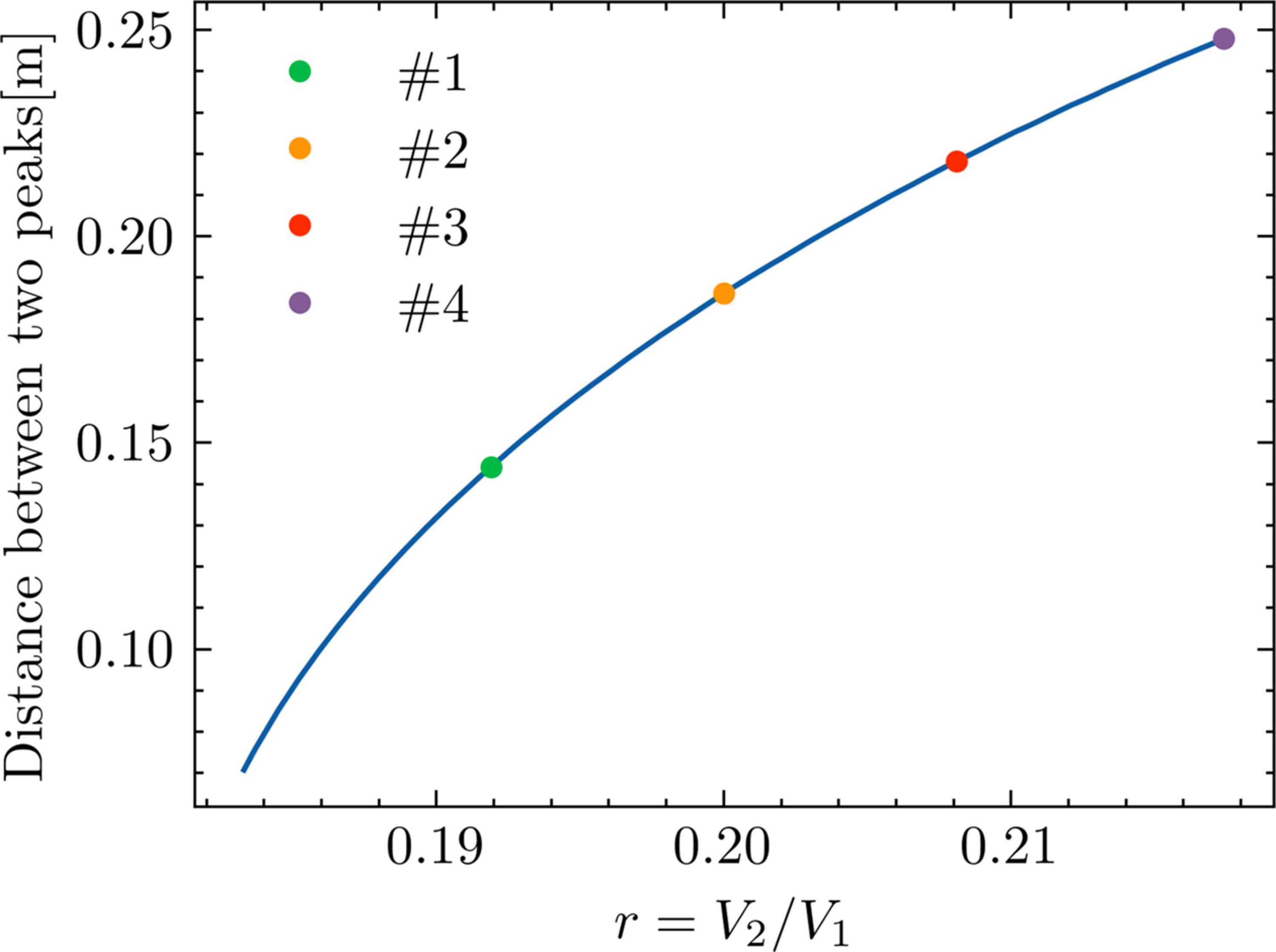

Figure 5
The relationship between the distance between two microbunches (vertical axis) and the ratio r of the peak voltage between the harmonic cavities and the main RF cavities (horizontal axis) is shown. The dark blue solid line represents theoretical results. By adjusting r, a wide range of separations can be achieved. Four representative settings, labeled as Cases #1 to #4, are highlighted on the curve for further detailed case studies.
