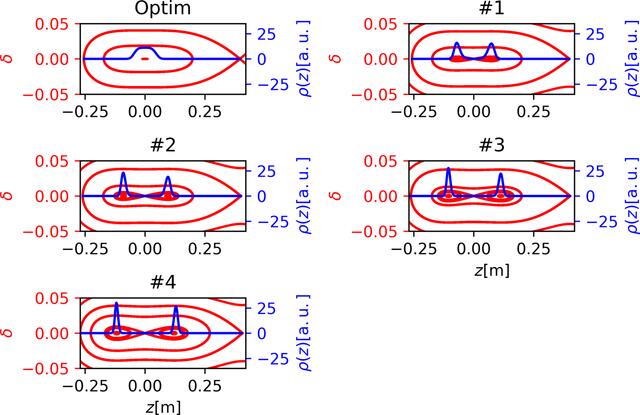

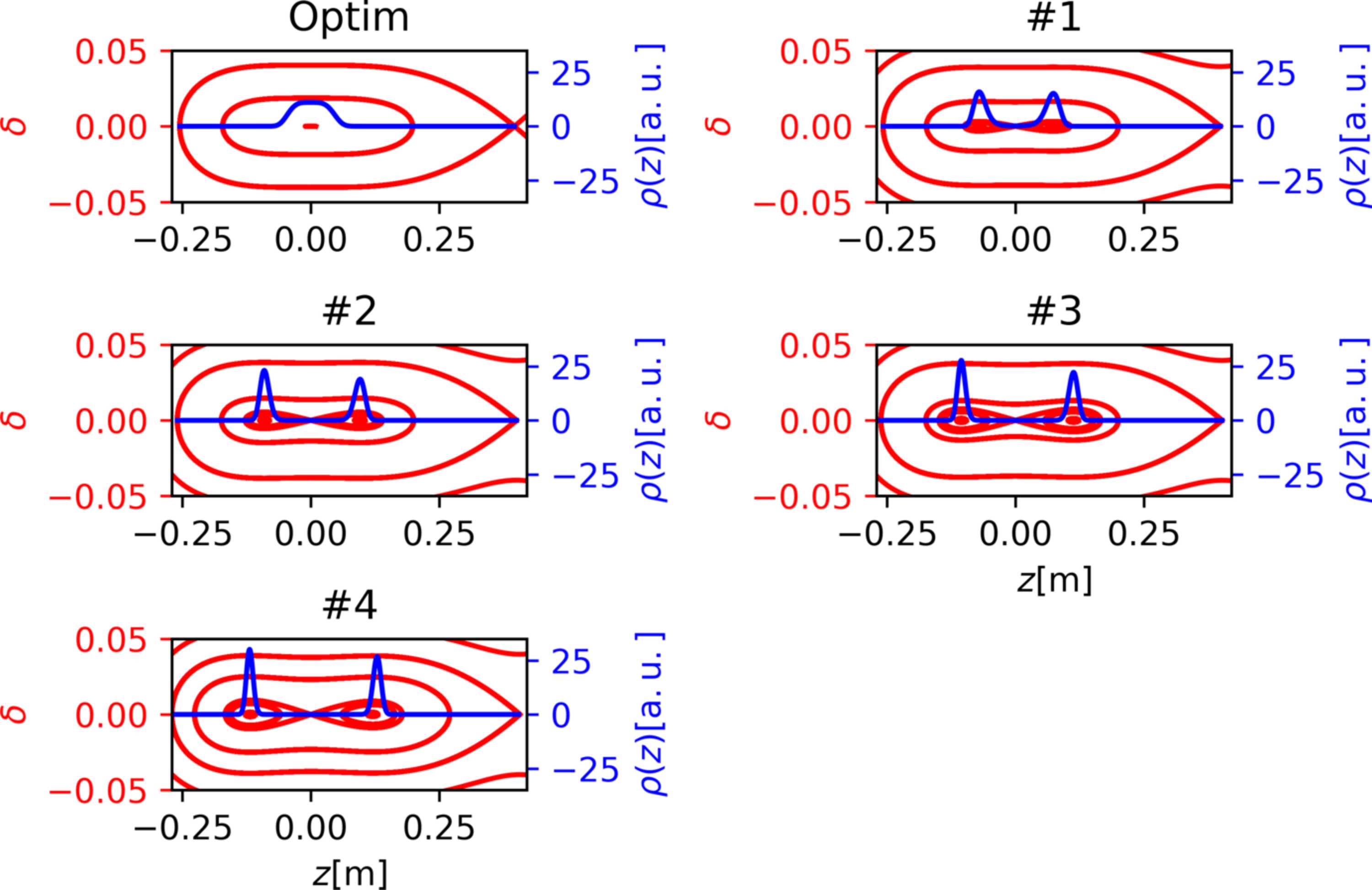

Figure 6
Hamiltonian torus (red) and normalized longitudinal distribution (blue) with five different settings. The first one, labeled `Optim', shows the Hamiltonian tori and bunch longitudinal distribution under the `ideal lengthening' condition of the double RF system. The other four subplots represent Case #1 to Case #4 in Fig. 5[link].
