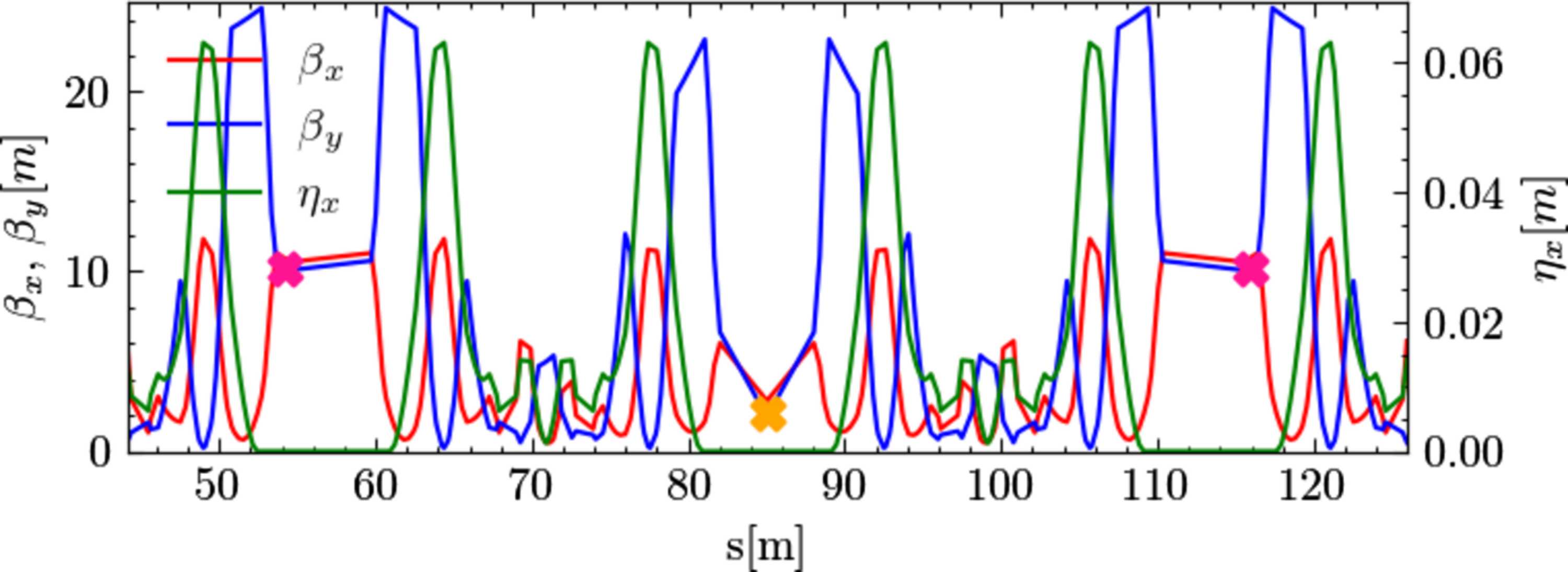

Figure 7
Twiss parameters for part of the `toy' lattice. The red and blue curves represent the horizontal and vertical beta functions, respectively. The green curve is the horizontal dispersion function. The orange cross mark indicates the position of the light source point. The two red cross marks indicate the respective locations of the two TDCs.
