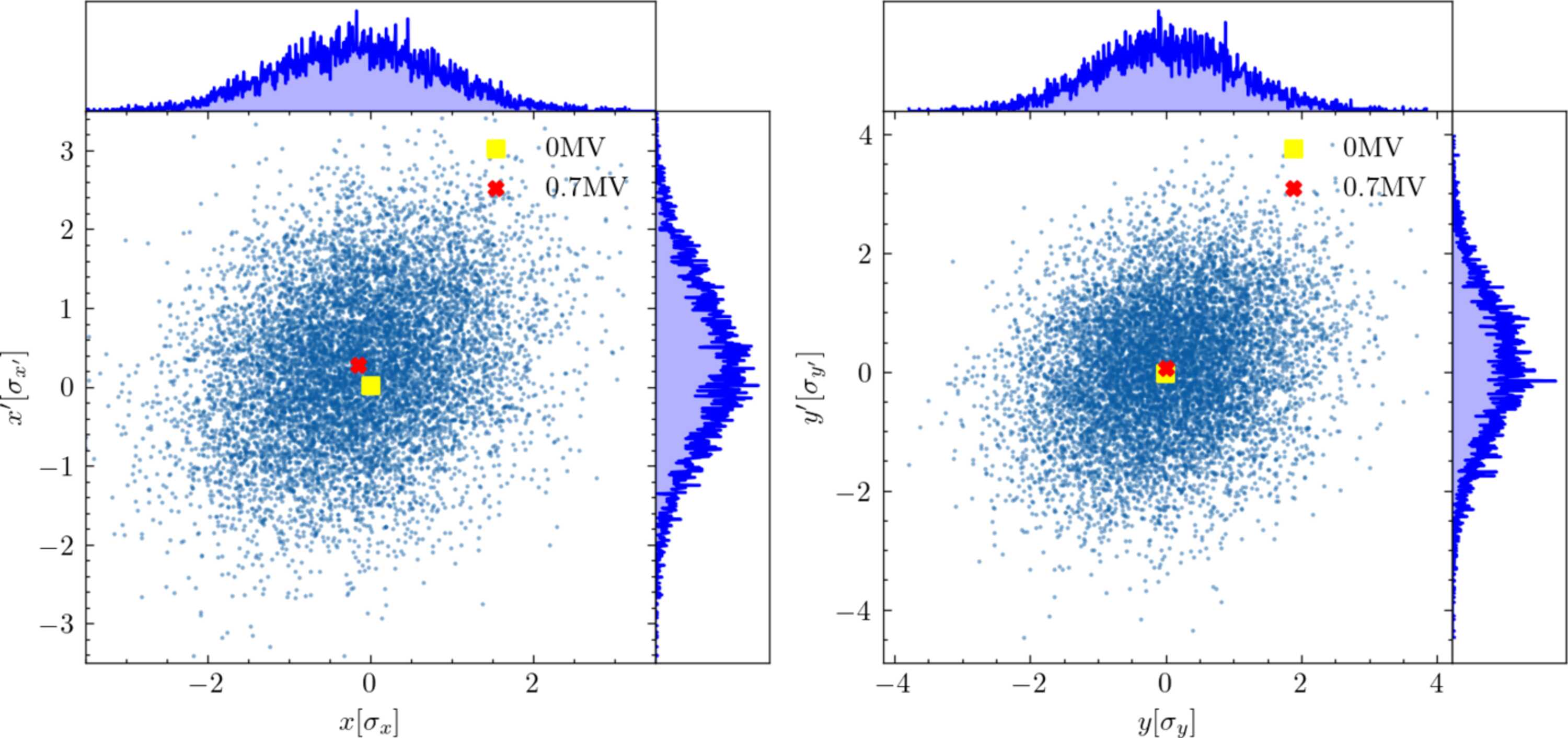

Figure 9
The left and right plots depict the macroparticles at the exit of the downstream deflecting cavity (TDC2) in the horizontal and vertical phase spaces, respectively. The yellow square marks the centroid coordinates of the bunch without the proposed scheme, while the red cross represents the centroid with the scheme applied.
