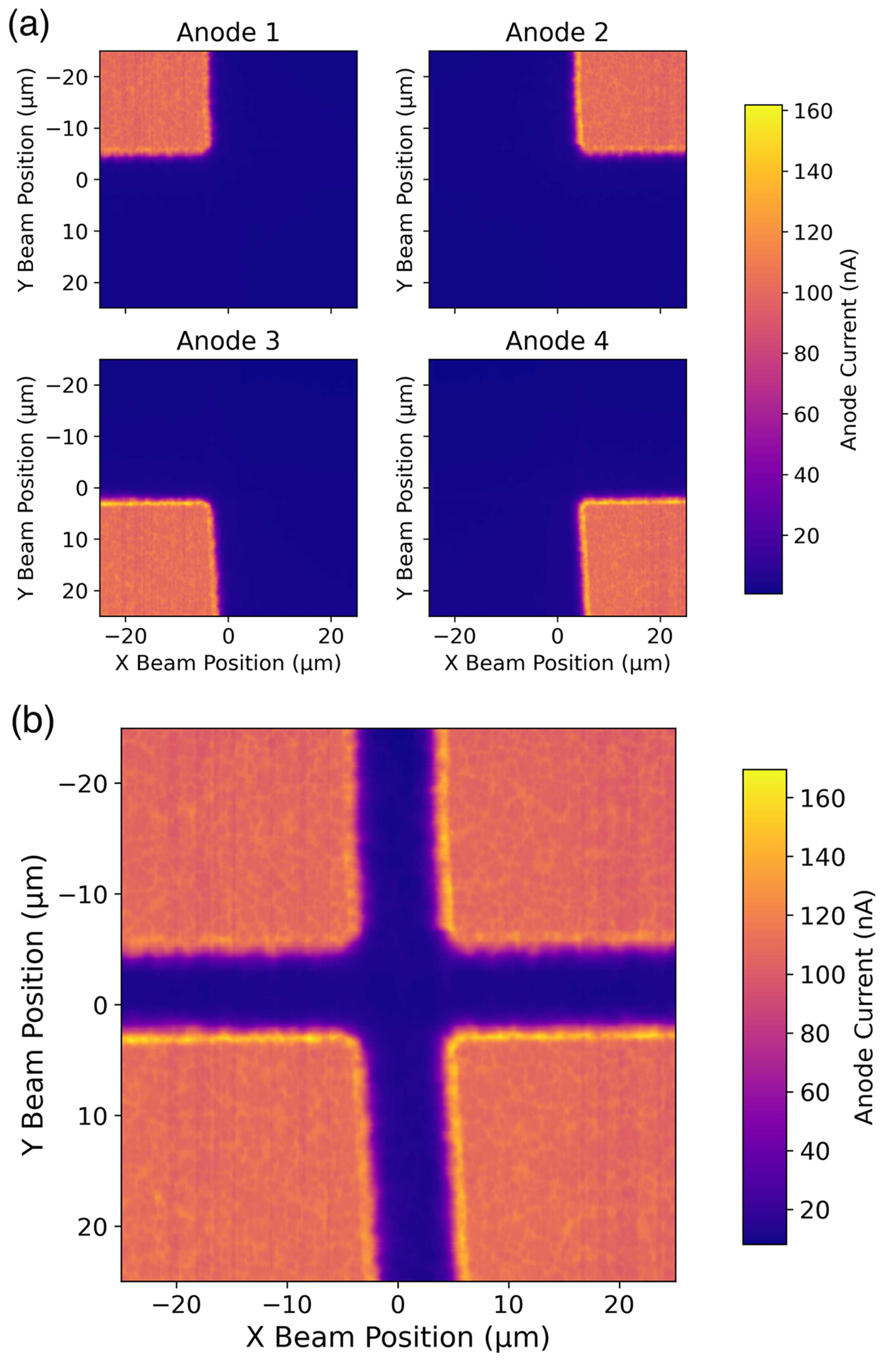

Figure 3
(a) Current measured on the individual sensor electrodes (Anode 1, Anode 2, Anode 3, Anode 4) when scanning an 8 keV X-ray beam on its surface. (b) Total current measured on the sensor computed as the sum of the individual electrode currents.
