High magnification optical imaging systems for the characterization of soft X-ray focii

Al Haddad, A.; Sarracini, A.; Schnorr, K.; Knopp, G.; Krempasky, J.; Arrell, C.; Augustin, S.; Bassement, L.; Brupbacher, K.; Vila-Comamala, J.; David, C.; Flechsig, U.; Follath, R.; Guo, Z.; Herzog, M.; Knurr, J.; Lombosi, C.; Manetti, E.; Mandal, S.; Morillo-Candas, A.S.; Qi, P.; Sorokin, B.V.; Stubbs, S.; Sun, Z.; Tiefenbacher, S.C.; Vonka, J.; Wagner, U.H.; Xie, X.; Yang, N.; Zhang, H.; Bostedt, C.

doi:10.1107/S160057752500774X

Journal of Synchrotron Radiation Journal of
Synchrotron Radiation

IUCr IT WDC

home archive editors for authors for readers submit open access

view article

Figure 10

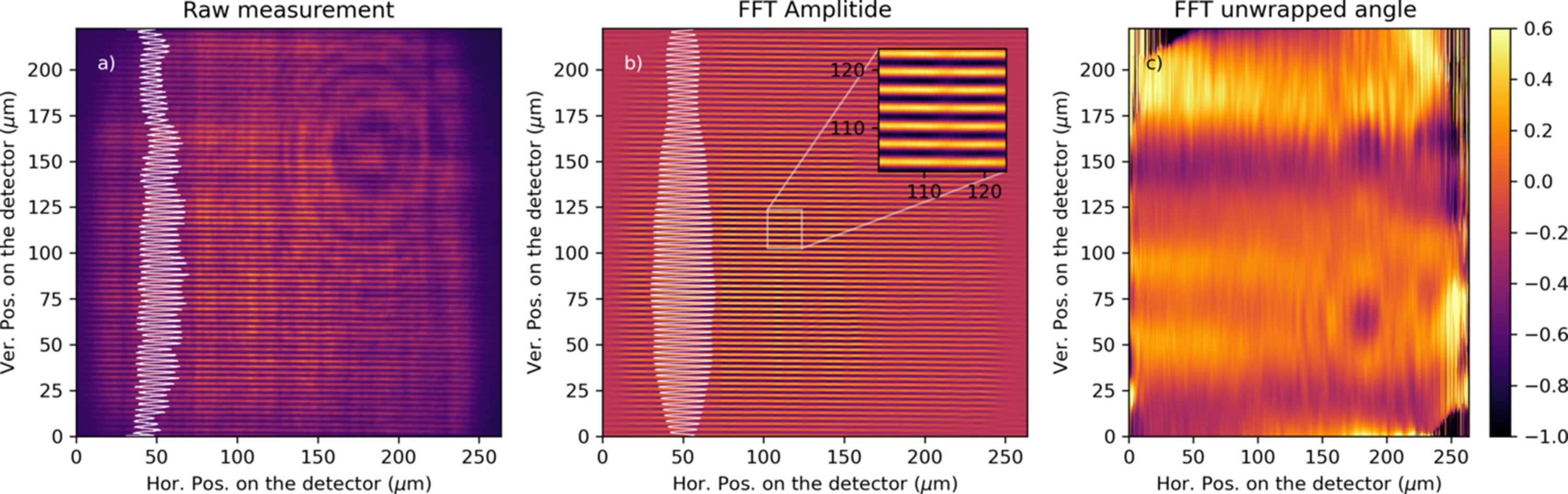

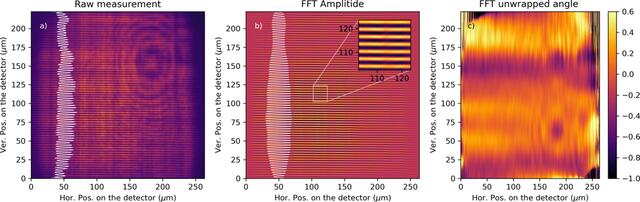

(a) Image generated by a single X-ray pulse using a 2 µm pitch grating. (b) The real part of the Fourier-filtered image is extracted, and the self-image of the grating is observed. (c) Phase of the image oscillatory pattern across the image with linear contribution removed. The color map represents the phase in radians.
