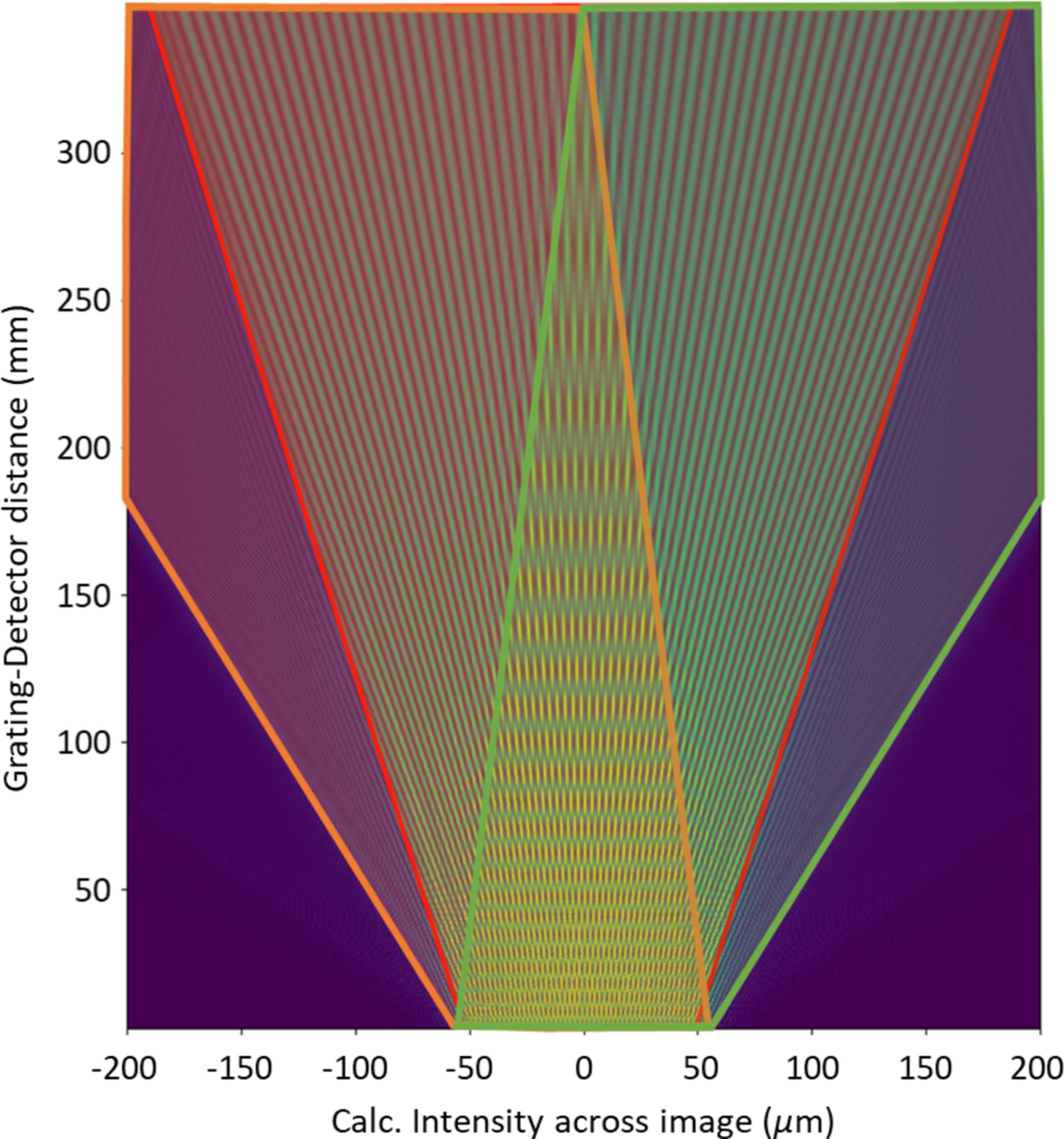

Figure 11
Wavefront propagation was simulated while incorporating experimental conditions. The fundamental, +1 and −1 diffraction order beams are outlined in red, green and orange, respectively. The central triangular region contains the Talbot carpet, which exhibits the Talbot self-imaging effect modulated along the optical axis. The interference patterns observed outside the Talbot carpet remain consistent and arise from the interaction between the fundamental beam and one of the diffraction orders.
