High magnification optical imaging systems for the characterization of soft X-ray focii

Al Haddad, A.; Sarracini, A.; Schnorr, K.; Knopp, G.; Krempasky, J.; Arrell, C.; Augustin, S.; Bassement, L.; Brupbacher, K.; Vila-Comamala, J.; David, C.; Flechsig, U.; Follath, R.; Guo, Z.; Herzog, M.; Knurr, J.; Lombosi, C.; Manetti, E.; Mandal, S.; Morillo-Candas, A.S.; Qi, P.; Sorokin, B.V.; Stubbs, S.; Sun, Z.; Tiefenbacher, S.C.; Vonka, J.; Wagner, U.H.; Xie, X.; Yang, N.; Zhang, H.; Bostedt, C.

doi:10.1107/S160057752500774X

Journal of Synchrotron Radiation Journal of
Synchrotron Radiation

IUCr IT WDC

home archive editors for authors for readers submit open access

view article

Figure 12

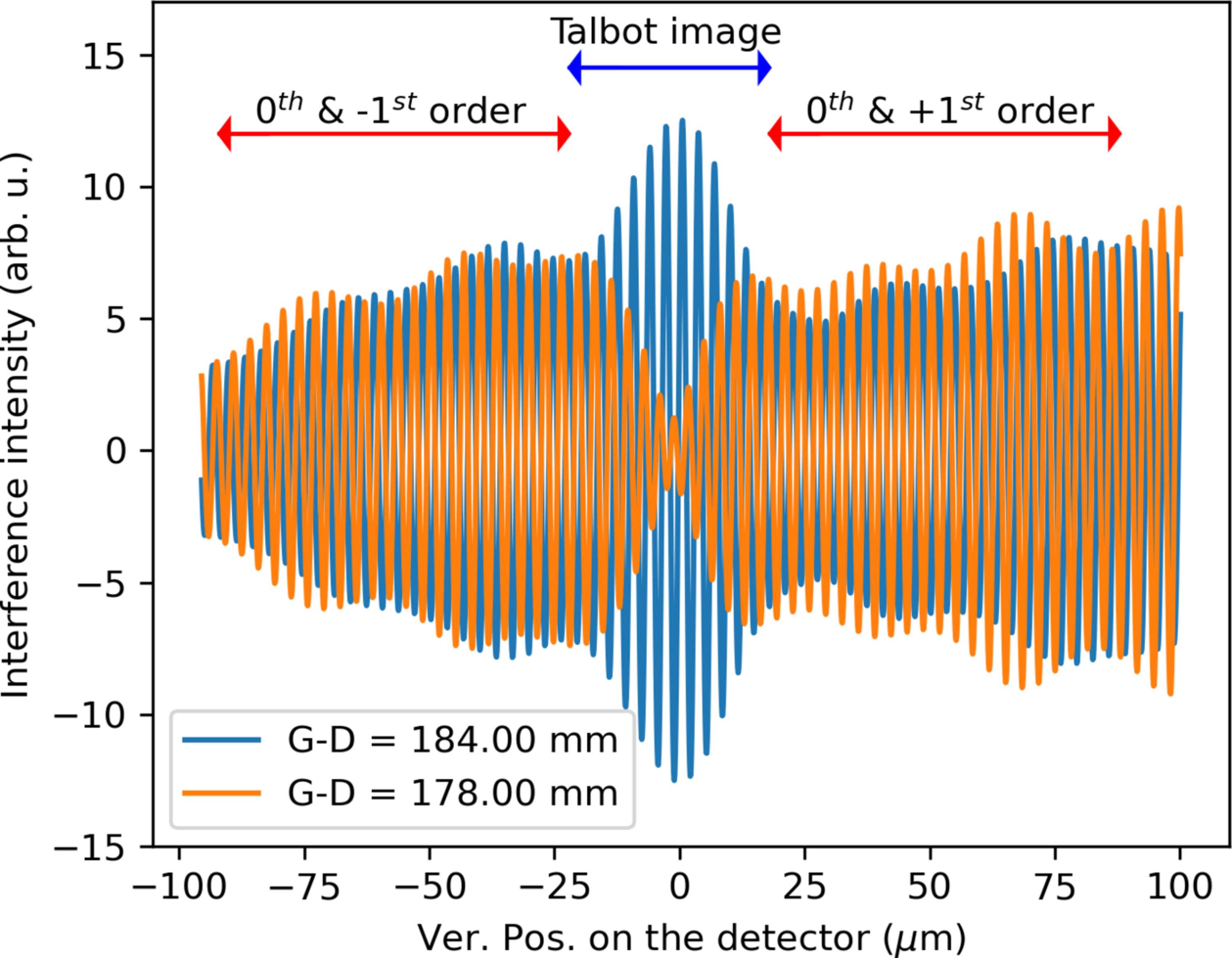

Fourier-filtered spectral interference patterns were measured at grating–detector distances of 178 mm and 184 mm. At 178 mm, the interference pattern appears split around the image center, indicating a position outside the Talbot plane. At 184 mm, corresponding to Talbot order 33, a central interference pattern is observed, with symmetric interference features surrounding it.
