High magnification optical imaging systems for the characterization of soft X-ray focii

Al Haddad, A.; Sarracini, A.; Schnorr, K.; Knopp, G.; Krempasky, J.; Arrell, C.; Augustin, S.; Bassement, L.; Brupbacher, K.; Vila-Comamala, J.; David, C.; Flechsig, U.; Follath, R.; Guo, Z.; Herzog, M.; Knurr, J.; Lombosi, C.; Manetti, E.; Mandal, S.; Morillo-Candas, A.S.; Qi, P.; Sorokin, B.V.; Stubbs, S.; Sun, Z.; Tiefenbacher, S.C.; Vonka, J.; Wagner, U.H.; Xie, X.; Yang, N.; Zhang, H.; Bostedt, C.

doi:10.1107/S160057752500774X

Journal of Synchrotron Radiation Journal of
Synchrotron Radiation

IUCr IT WDC

home archive editors for authors for readers submit open access

view article

Figure 14

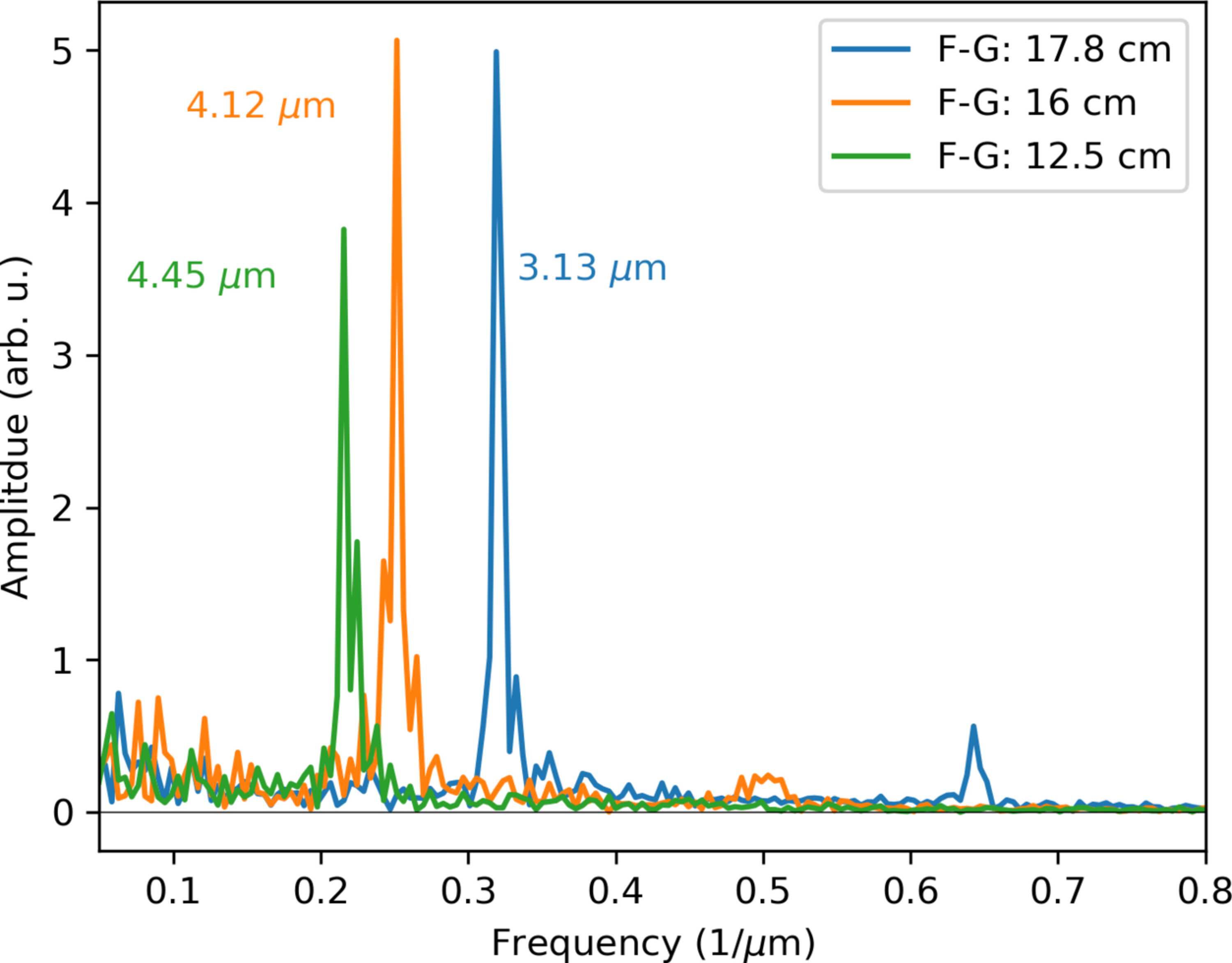

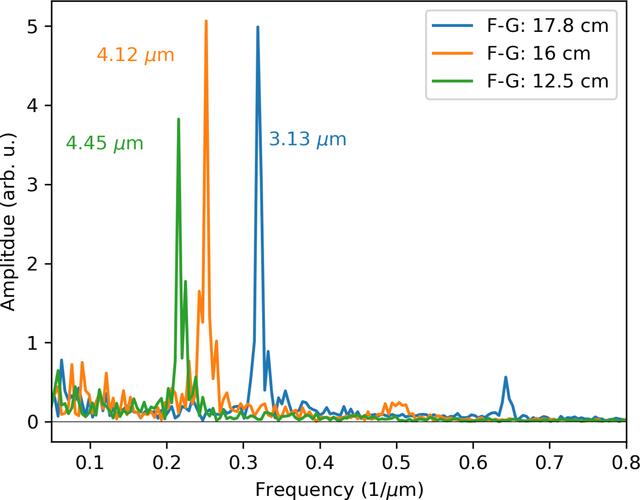

Fourier transforms of the images at three distinct beam focal points. The grating–detector distance was fixed to 15 cm, while the focus was moved along the optical axis to 12.5, 16 and 17.8 cm away from the grating.
