High magnification optical imaging systems for the characterization of soft X-ray focii

Al Haddad, A.; Sarracini, A.; Schnorr, K.; Knopp, G.; Krempasky, J.; Arrell, C.; Augustin, S.; Bassement, L.; Brupbacher, K.; Vila-Comamala, J.; David, C.; Flechsig, U.; Follath, R.; Guo, Z.; Herzog, M.; Knurr, J.; Lombosi, C.; Manetti, E.; Mandal, S.; Morillo-Candas, A.S.; Qi, P.; Sorokin, B.V.; Stubbs, S.; Sun, Z.; Tiefenbacher, S.C.; Vonka, J.; Wagner, U.H.; Xie, X.; Yang, N.; Zhang, H.; Bostedt, C.

doi:10.1107/S160057752500774X

Journal of Synchrotron Radiation Journal of
Synchrotron Radiation

IUCr IT WDC

home archive editors for authors for readers submit open access

view article

Figure 2

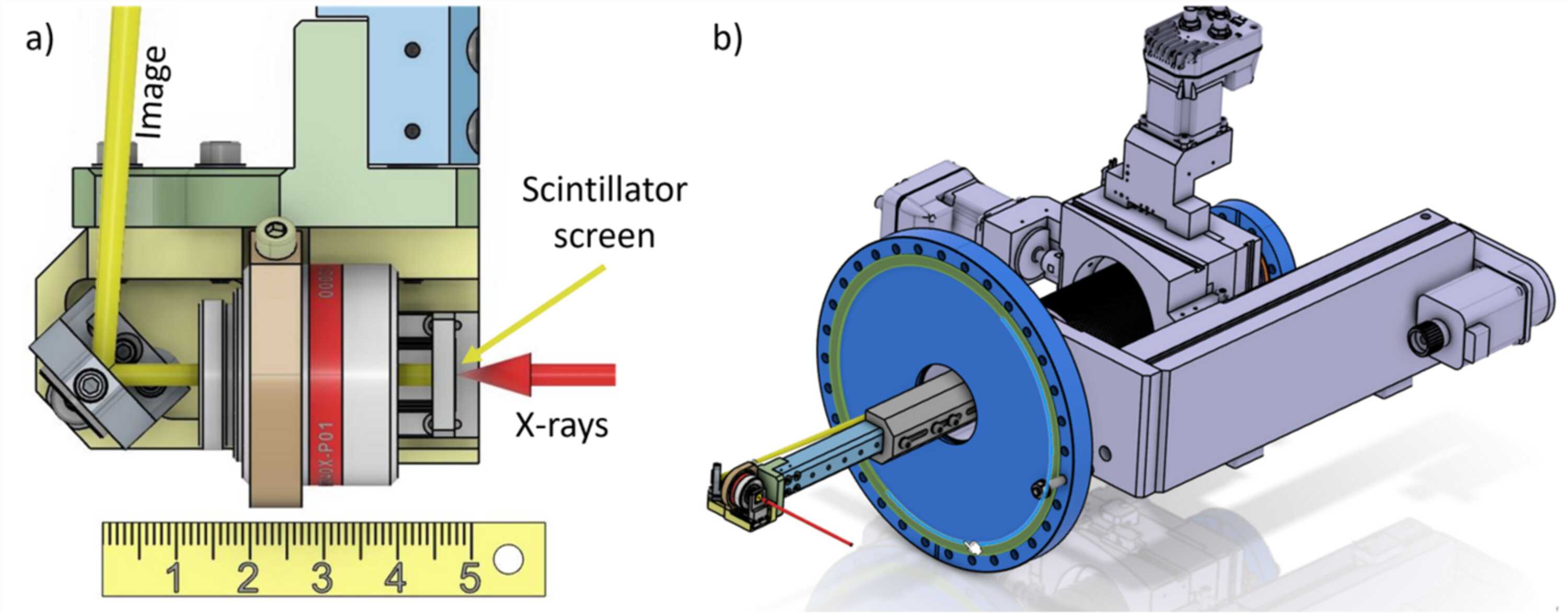

CAD-drawing of a compact imaging system utilizing a reflective objective. (a) Top view showing the incoming X-ray beam (in red), the scintillator, the reflective microscope, and a mirror directing the image outside the chamber. A linear motion stage aligns the scintillator at the focal plane of the objective. (b) 3D view of the system mounted on a three-axis manipulator. The image travels through the manipulator and exits via a window, where a field lens and camera are positioned. The manipulator enables precise placement of the entire system at the X-ray interaction point and allows for its removal to accommodate the main experiments.
