Figure 4

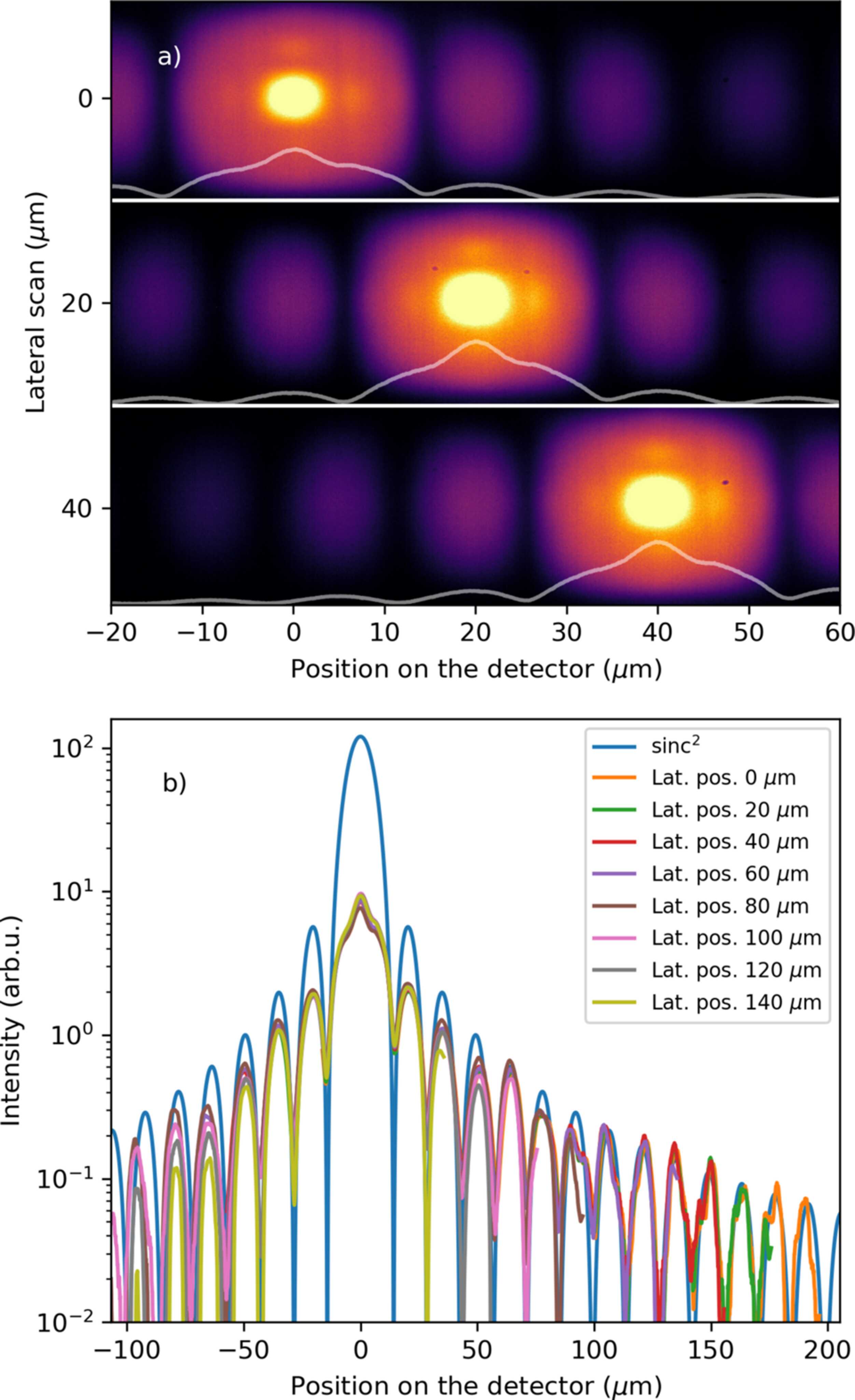

(a) Three diffraction patterns at 20 µm step in the lateral position of the imaging system relative to the X-ray beam. The white line is the projection along the vertical axis. (b) The diffraction pattern projection aligned at the lateral scan's central peak from −40 µm to 40 µm with 20 µm step.
