Figure 5

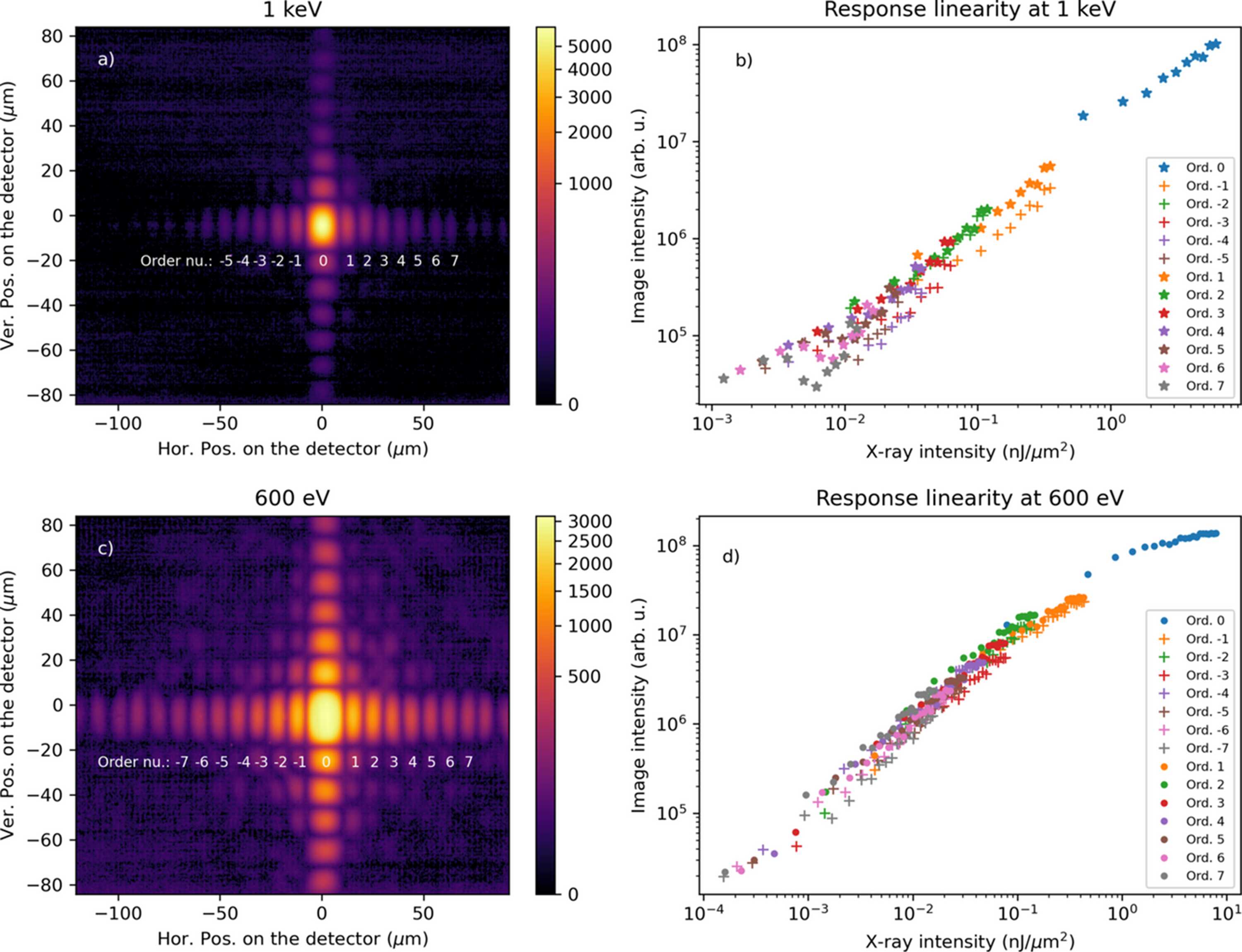

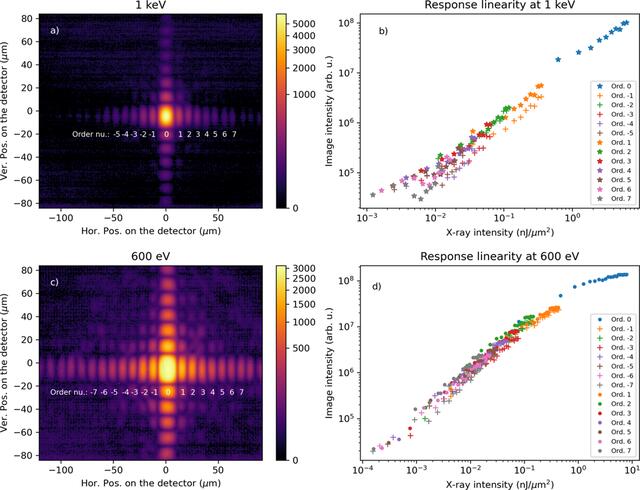

Panels (a) and (c) show diffraction patterns from 1 keV and 0.6 keV, respectively. The horizontal diffraction orders were used to calculate the system's response, labeled in white in the image. Panels (b) and (d) show the image intensity versus local pulse energy density in the image. Positive and negative orders are labeled using a * and + markers, respectively.
