High magnification optical imaging systems for the characterization of soft X-ray focii

Al Haddad, A.; Sarracini, A.; Schnorr, K.; Knopp, G.; Krempasky, J.; Arrell, C.; Augustin, S.; Bassement, L.; Brupbacher, K.; Vila-Comamala, J.; David, C.; Flechsig, U.; Follath, R.; Guo, Z.; Herzog, M.; Knurr, J.; Lombosi, C.; Manetti, E.; Mandal, S.; Morillo-Candas, A.S.; Qi, P.; Sorokin, B.V.; Stubbs, S.; Sun, Z.; Tiefenbacher, S.C.; Vonka, J.; Wagner, U.H.; Xie, X.; Yang, N.; Zhang, H.; Bostedt, C.

doi:10.1107/S160057752500774X

Journal of Synchrotron Radiation Journal of
Synchrotron Radiation

IUCr IT WDC

home archive editors for authors for readers submit open access

view article

Figure 8

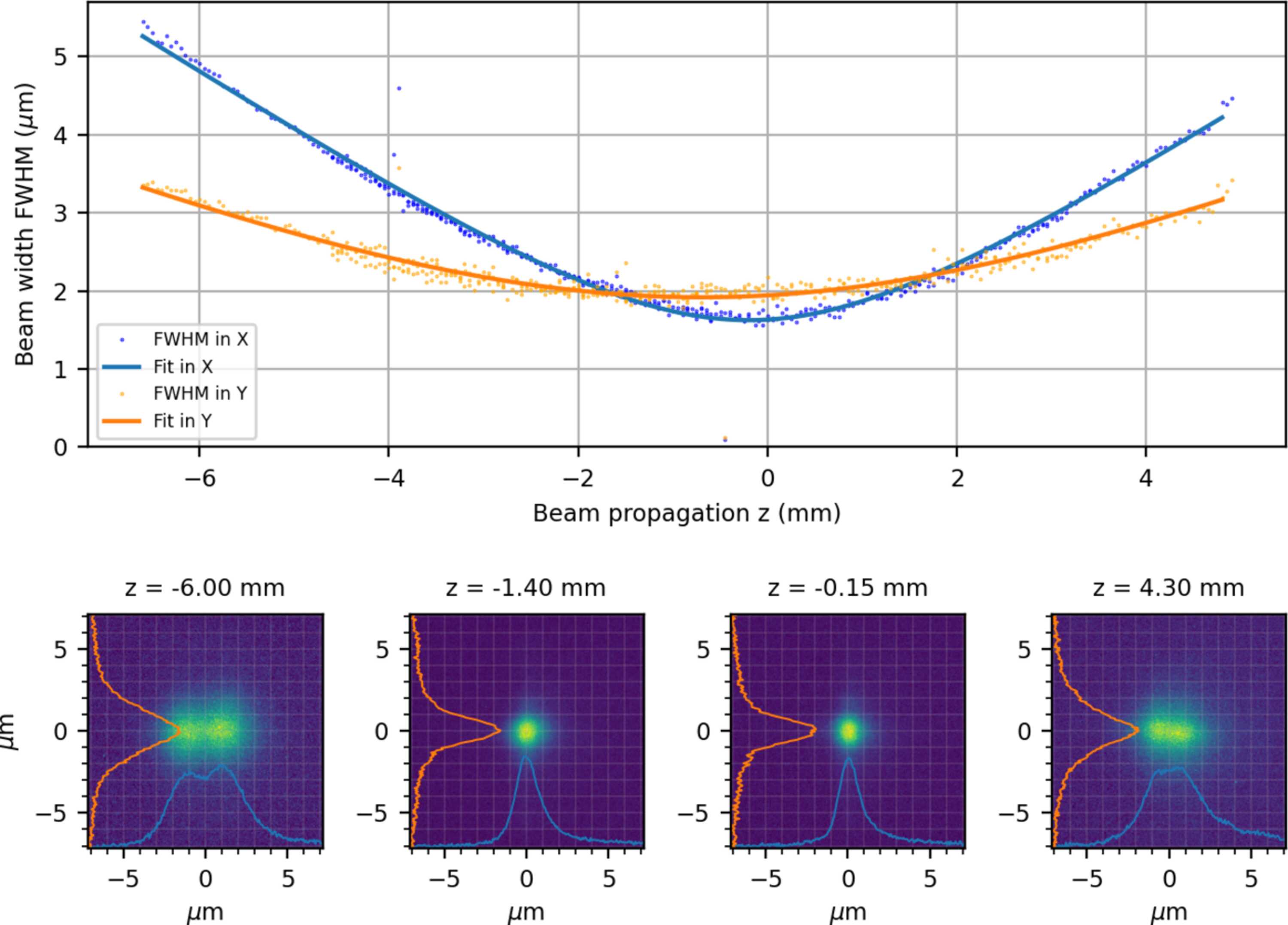

(Top) Focal image along the X and Y axis over a caustic scan along the X-ray propagation direction. The dots represent single-image acquisitions, and solid lines are based on Gaussian beam propagation in focus. (Bottom) Image of the X-ray focal spot at four different Z positions with projections of the beam intensity along the X and Y axes.
