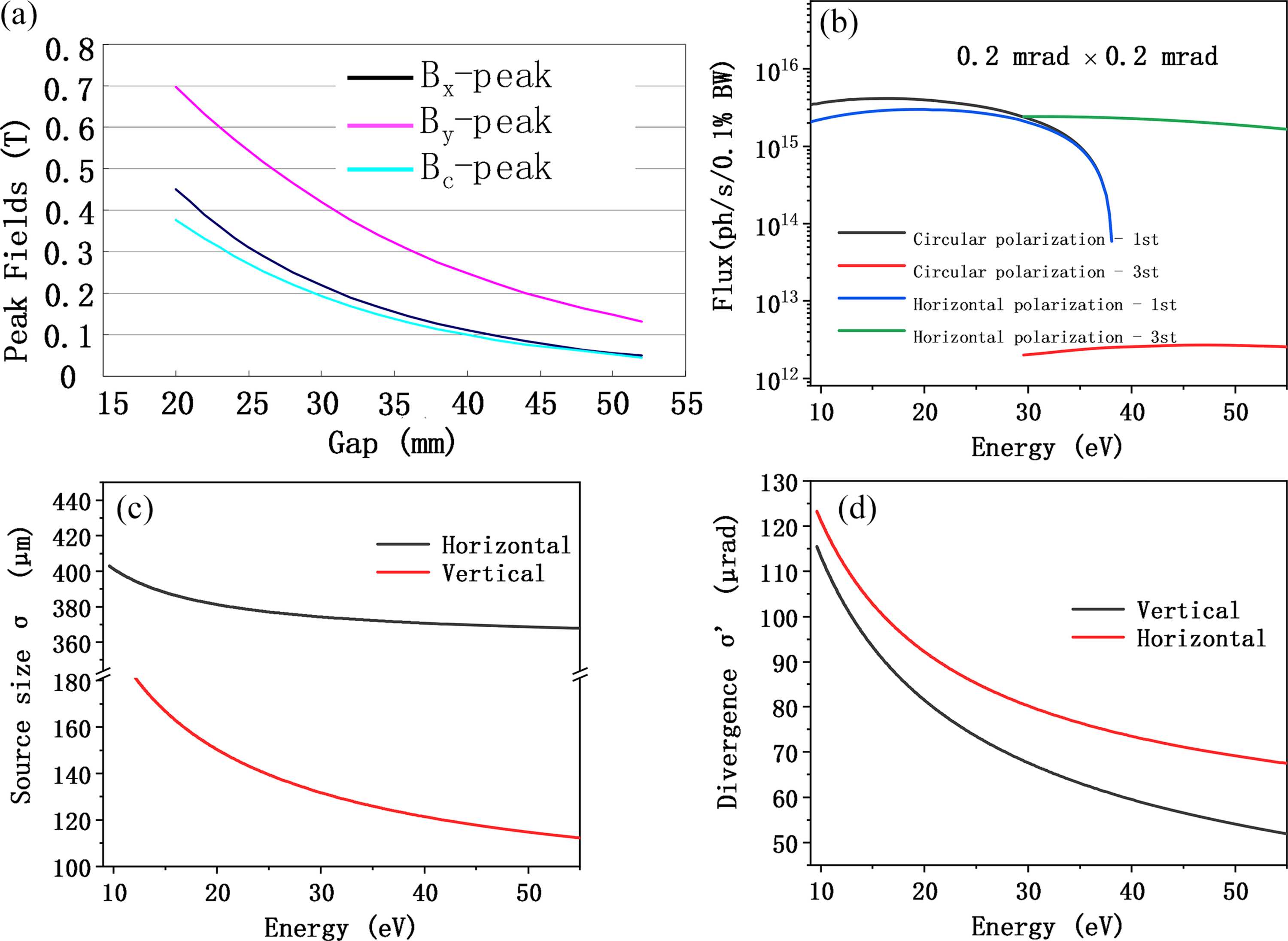

Figure 1
(a) Variation of the peak magnetic field as a function of the gap for the three palarization modes; (b) estimated photon flux within a collection solid angle of 0.2 mrad × 0.2 mrad of the undulator in linear and circular polarization modes; (c) effective source size and (d) angular divergence of the undulator radiation.

Journal logoJOURNAL OF
SYNCHROTRON
RADIATION
ISSN: 1600-5775
Volume 32| Part 6| November 2025| Pages 1549-1560
https://doi.org/10.1107/S1600577525007556
