Figure 2

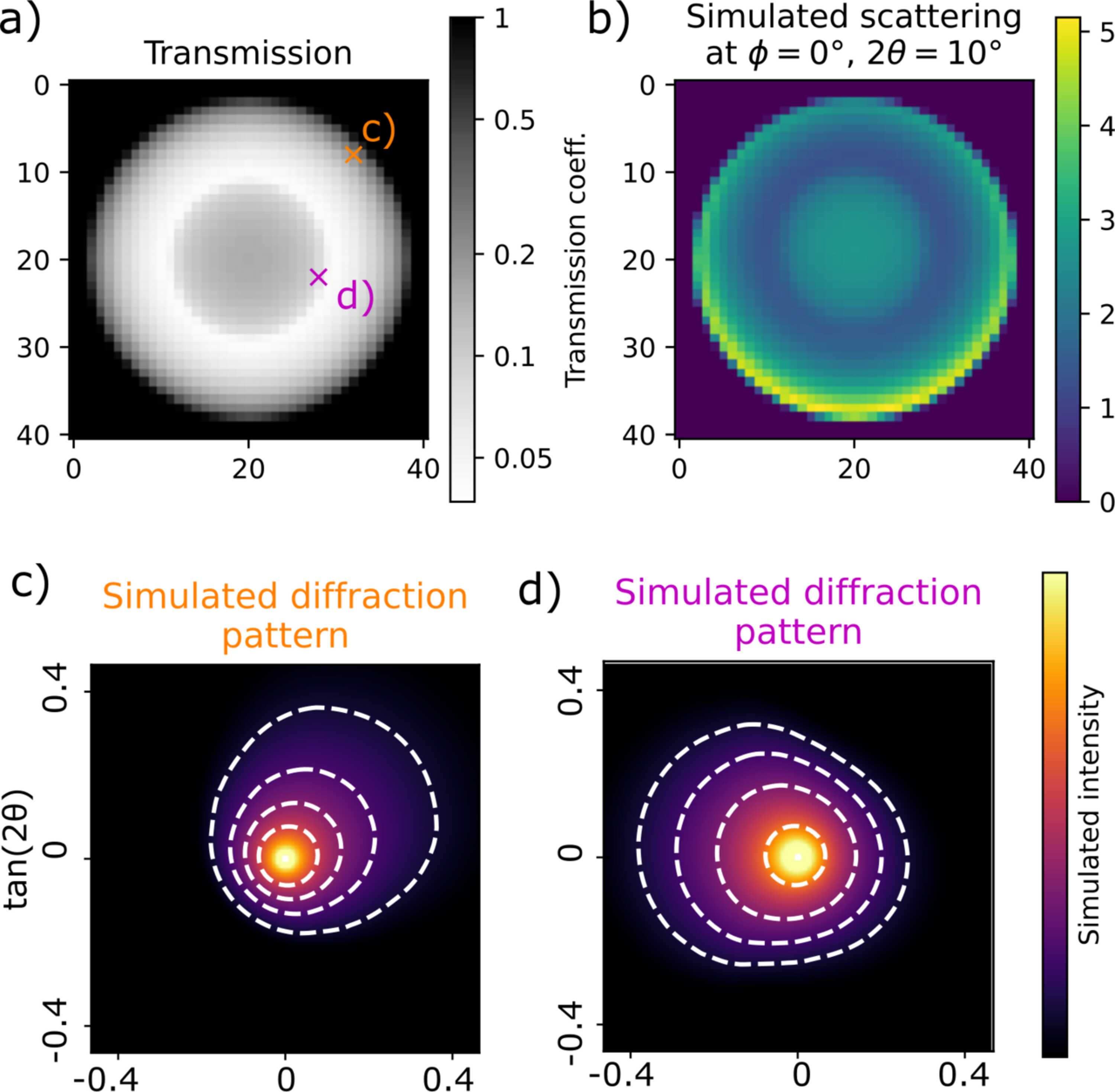

Simulated scattering from a hollow sphere displaying isotropic scattering and Dμ = 4. (a) The simulated transmission of the direct beam. (b) Simulated intensity at a fixed azimuthal angle (corresponding to the downward direction in the figures) and a scattering angle of 2θ = 10°. (c, d) Simulated diffraction patterns corresponding to the two points marked in (a). Contours are overlaid with white lines highlighting the anisotropy at large scattering angles. The edge of the simulated detector corresponds to a scattering angle of 2θ = 25°.
