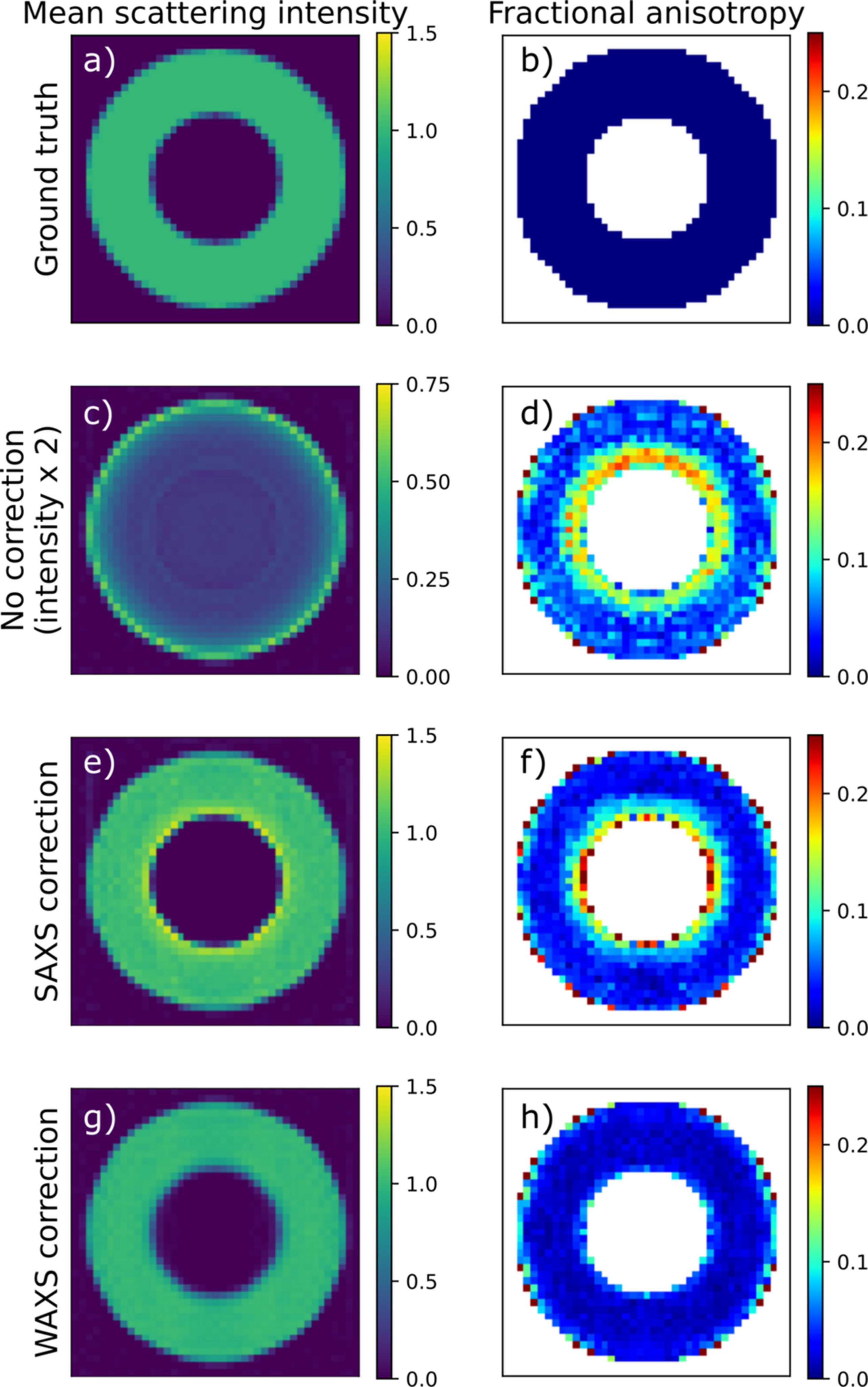

Figure 4
Slices of reconstructed simulated data with Dμ = 2.0 and 2θ = 20°. (a, b) Ground truth; (c, d) no absorption correction; (e, f) SAXS correction; and (g, h) WAXS correction. (a, c, e, g) Reconstructed directionally averaged scattering density. (b, d, f, h) Fractional anisotropy. The color coding of (c) is different from the rest to improve visibility.
