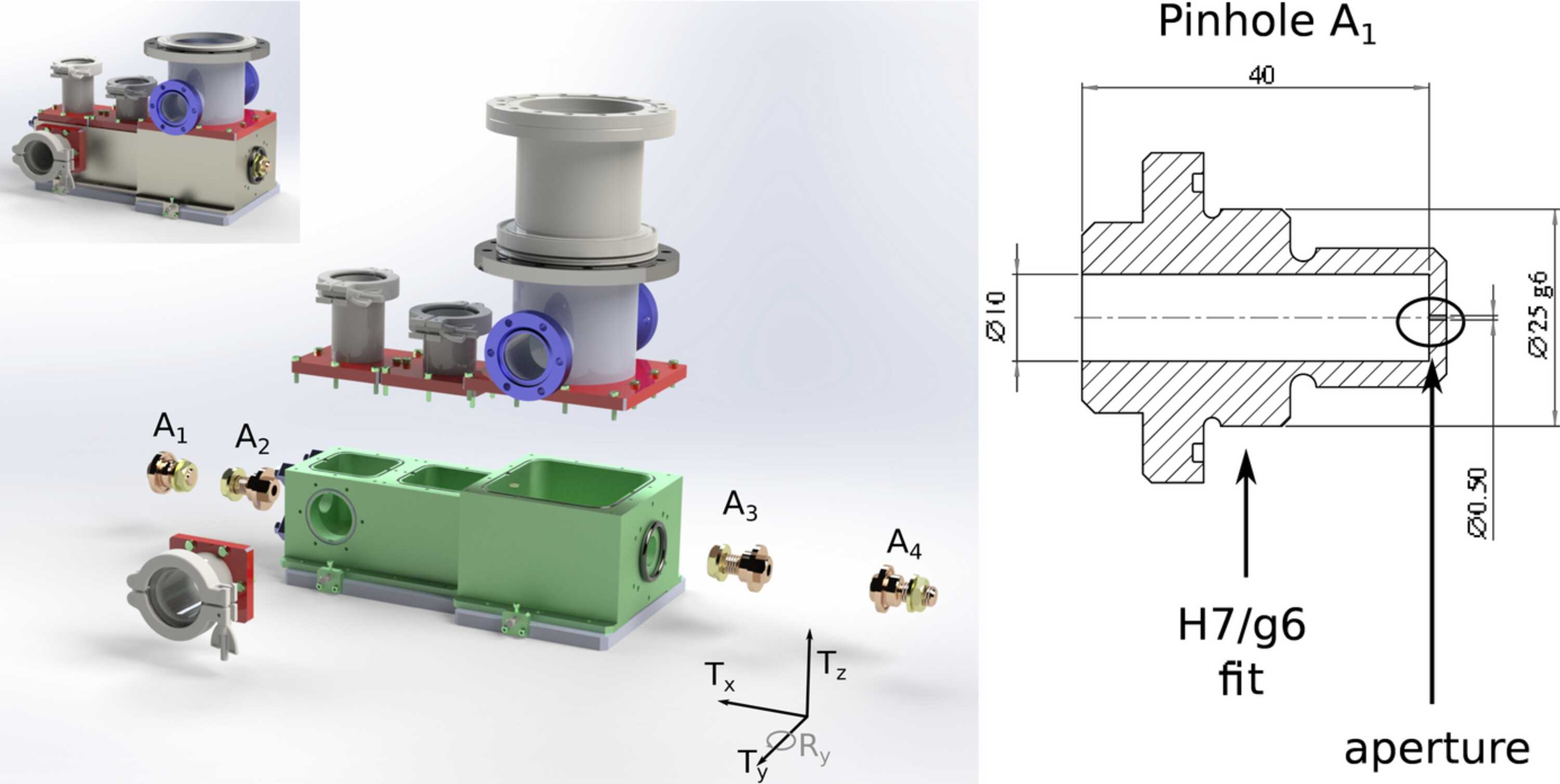

Figure 2
Mechanical assembly. (Left) 3D rendering along with an exploded view of the main components. (Right) Cross section of the A1 aperture with the reference surface and the aperture highlighted. The coordinate system is also shown. The beam propagates along x. Tx,y,z indicate the translations and Rx,y,z the rotations (only Ry is shown for clarity).
