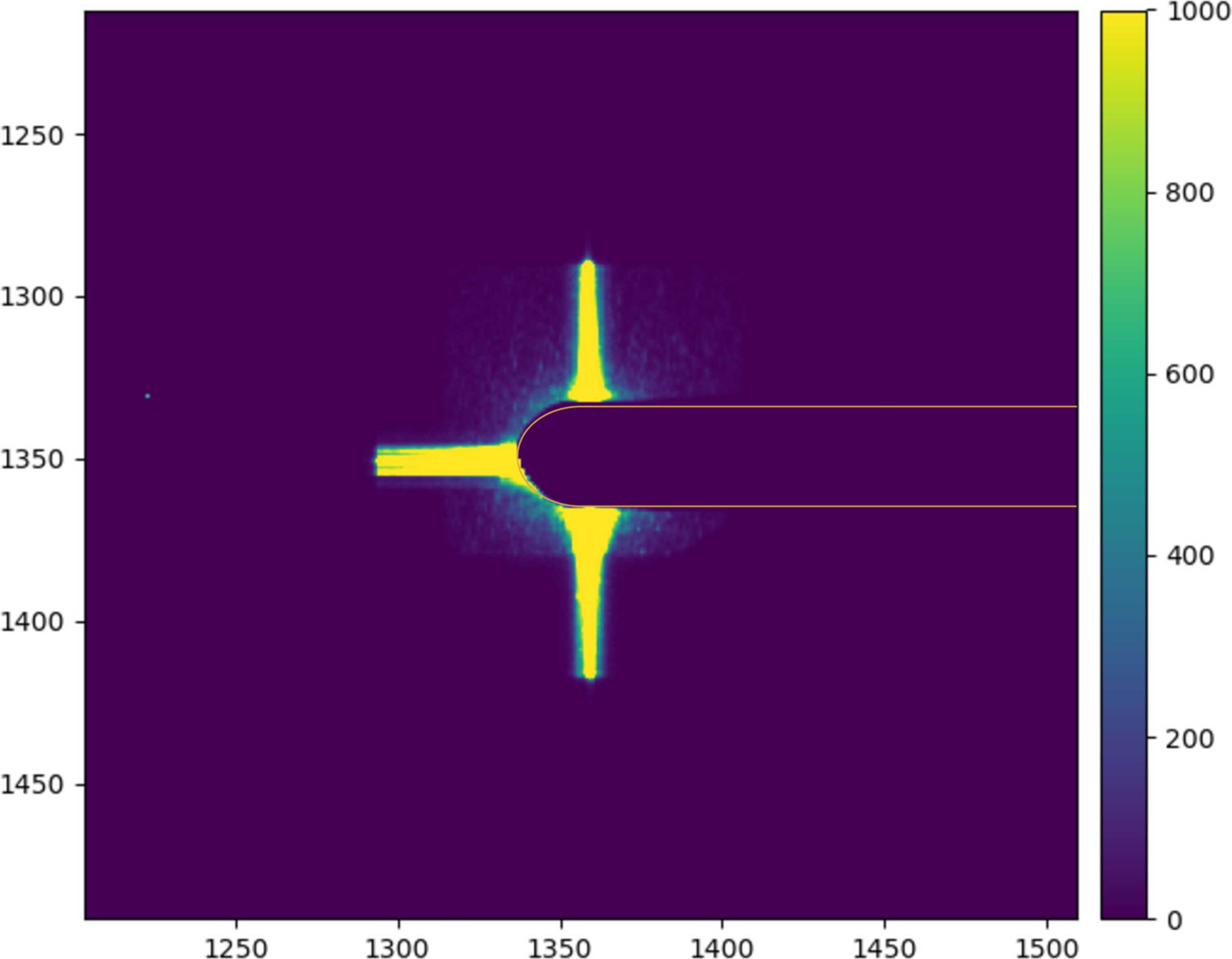

Figure 5
Background scattering measured with a pixelated detector positioned in forward scattering and 7 m from the sample. The data correspond to an integration time of 1 s exposure time (with a flux of ∼1.7 × 1012 photons s−1). Due to the DPU, no contributions are visible. Orange: the outline of the beamstop used to block the direct beam. The visible streaks (cross-like pattern) are due to diffraction from the polished slits.
