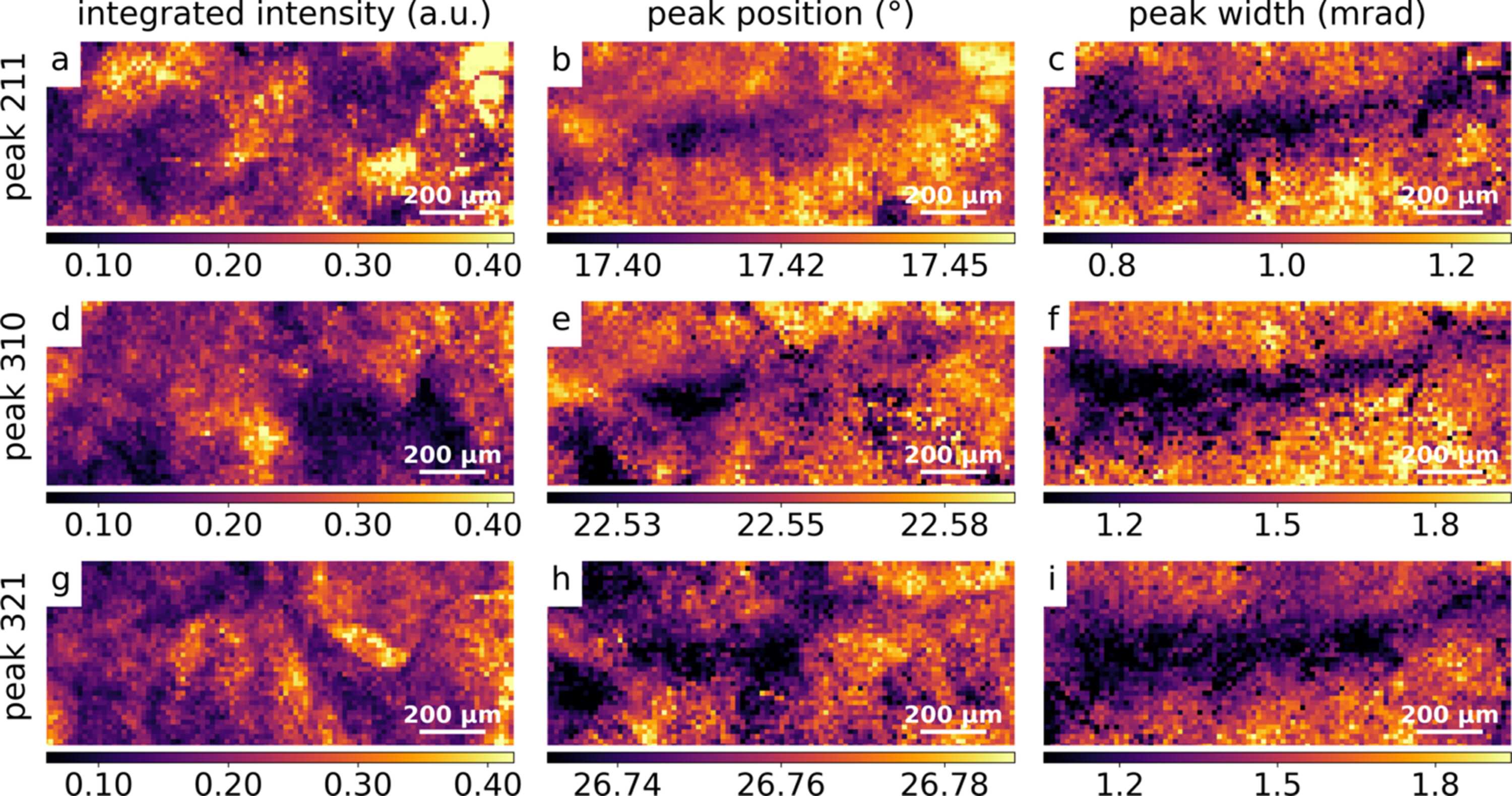

Figure 3
Maps from the overview scan showing integrated intensity (left column), peak position (middle column) and peak width (right column) for peaks [211], [310] and [321]. Rows correspond, respectively, to: peak [211] in (a–c), peak [310] in (d–f) and peak [321] in (g–i).
