Laser, vacuum and gas reaction chamber for operando measurements at NSLS-II's 28-ID-2

Moghimi, L.Y.; Johansson, P.K.; Paul, S.; Wang, Y.; Irvine, S.; Graham, R.; Dominguez, D.; Taylor, Z.; Martinez, A.A.; Markert, J.T.; Trunk, J.; Zhong, H.; Bai, J.; Ghose, S.; Dresselhaus-Marais, L.

doi:10.1107/S160057752500829X

Journal of Synchrotron Radiation Journal of
Synchrotron Radiation

IUCr IT WDC

home archive editors for authors for readers submit open access

view article

Figure 3

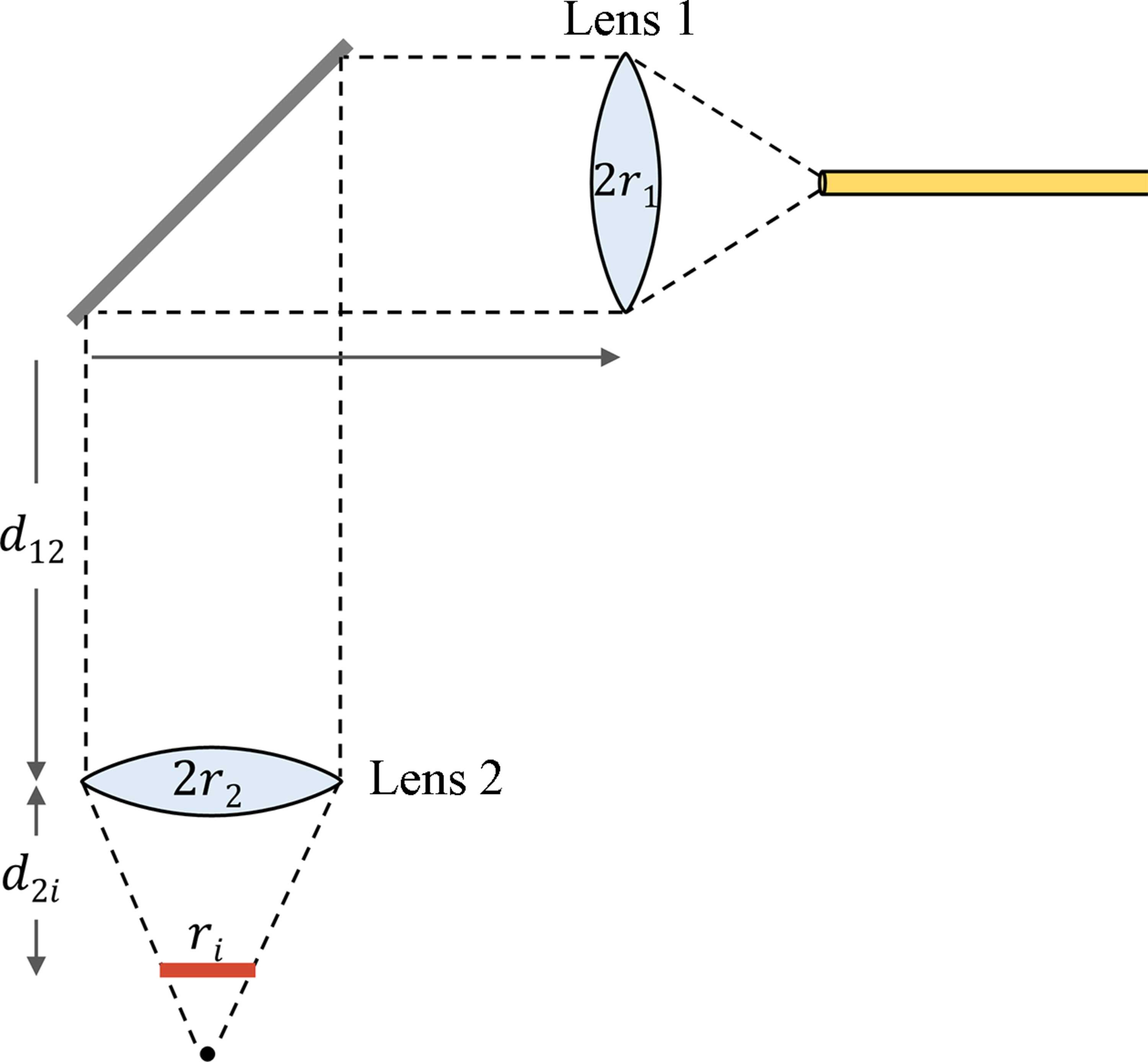

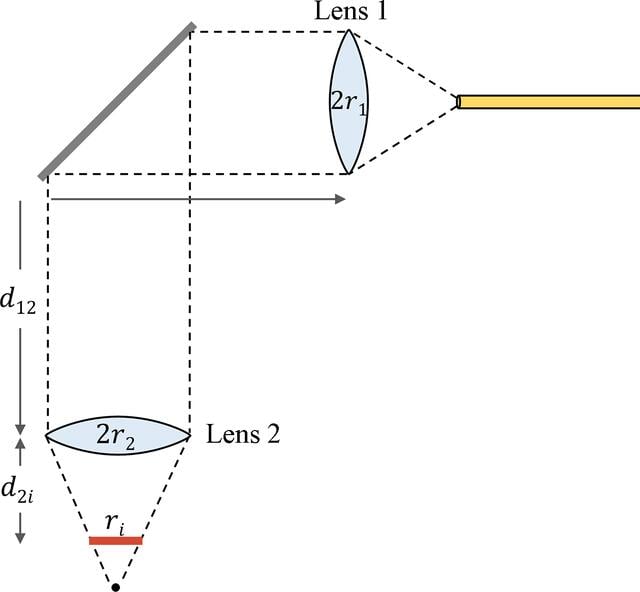

Schematic of the optics along the laser beam path, used to calculate the incident spot size r_i. The beam radius just after lens 1 is r₁ = 2 mm. The focal length of lens 2 is f = 100 mm. The distances d₁₂ and d_2i are 170 mm and 75 mm, respectively.

JOURNAL OF
SYNCHROTRON
RADIATION

ISSN: 1600-5775

Volume 32| Part 6| November 2025| Pages 1561-1568

https://doi.org/10.1107/S160057752500829X
