Figure 2

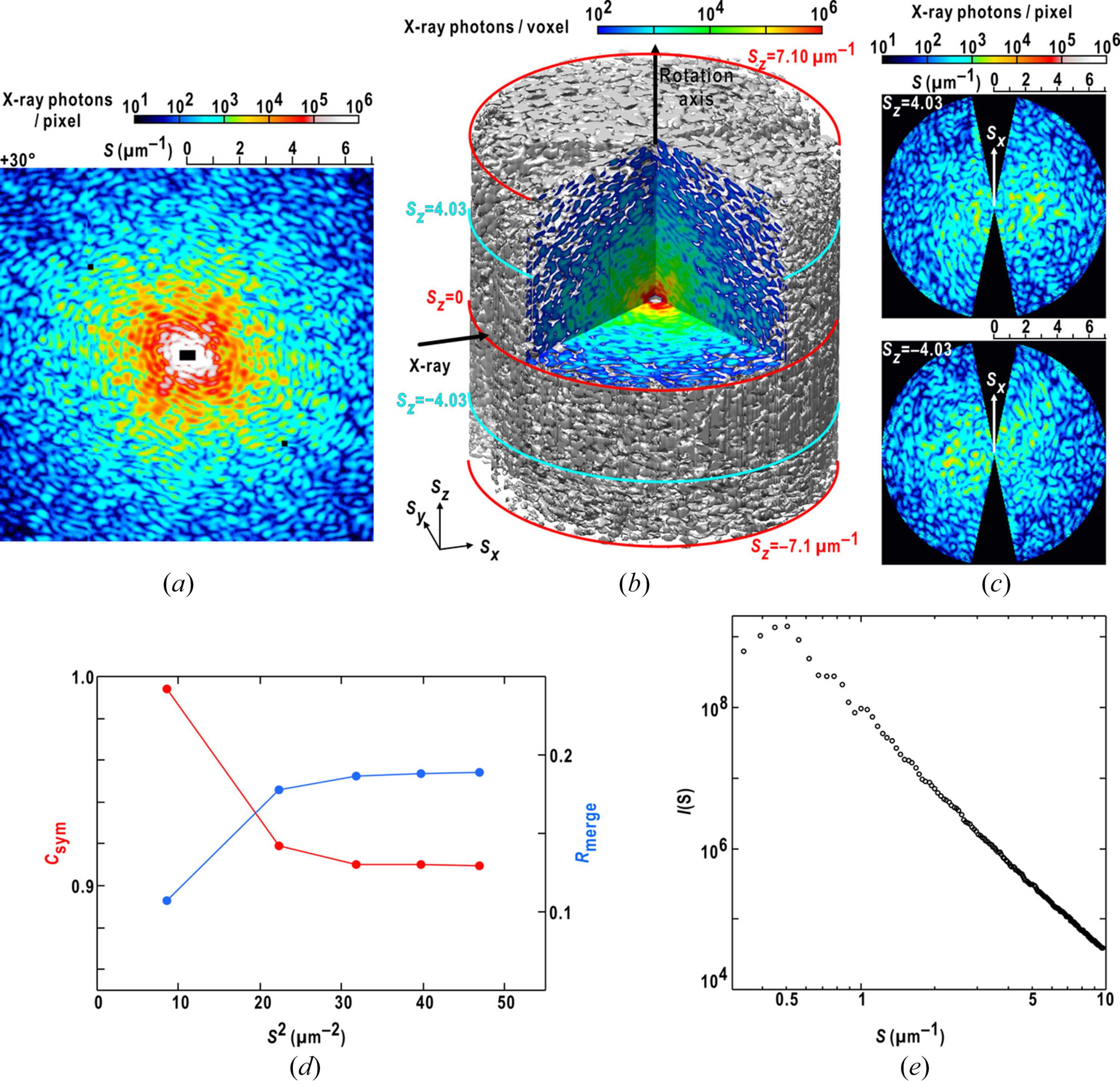

Diffraction data collected in the cXDI-TM experiment. (a) A representative diffraction pattern of the toner particle at +30°. (b) Distribution of diffraction intensity in reciprocal space up to a resolution of 7.1 µm−1. (c) Comparison of diffraction patterns in a pair of symmetry-related sections at ±4.03 µm−1. (d) Resolution-dependent variations in Csym and Rmerge plotted against the square of the scattering vector length to equalize the volumes of the resolution shells. (e) X-ray diffraction profile up to a resolution of 10 µm−1 calculated by summing the radial average of each diffraction pattern. Panel (b) was prepared using ChimeraX (Pettersen et al., 2021View full citation).
