Figure 3

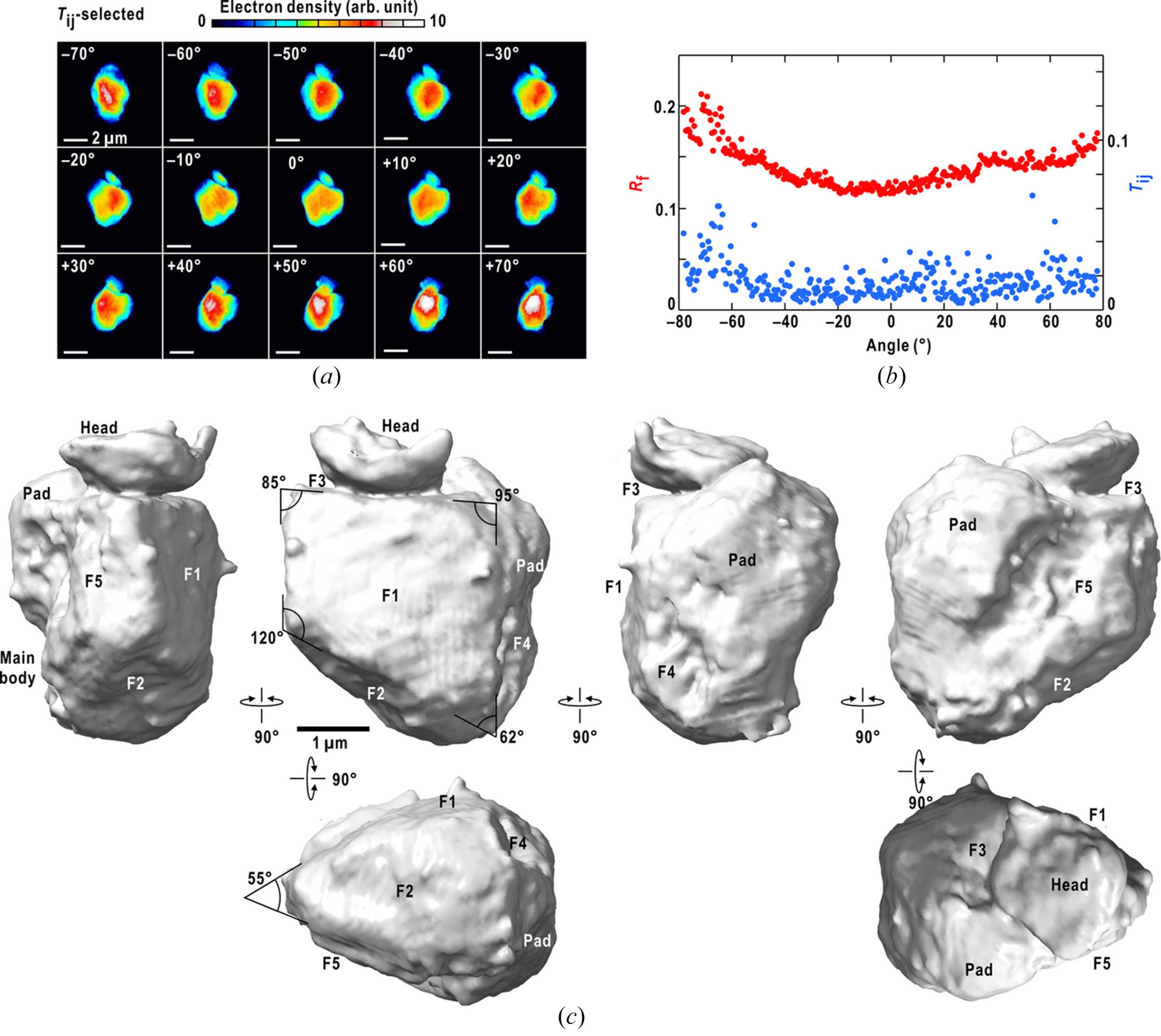

Three-dimensional reconstruction of the electron density distribution in the toner particle. (a) A set of projection electron density maps retrieved from the diffraction patterns at 10° intervals of the rotation. The maximum resolution used in the phase-retrieval calculation was 141 nm. The scale bar is 2 µm. (b) Crystallographic R-factor and similarity score of the selected map at each rotation angle. (c) Six views of the surface structures of the toner particle contoured at the 0.18 level of the relative electron density. The names of the parts and surfaces of the main body and certain edge-angle values are labeled (see the main text). This panel was prepared using ChimeraX (Pettersen et al., 2021View full citation).
