Figure 5

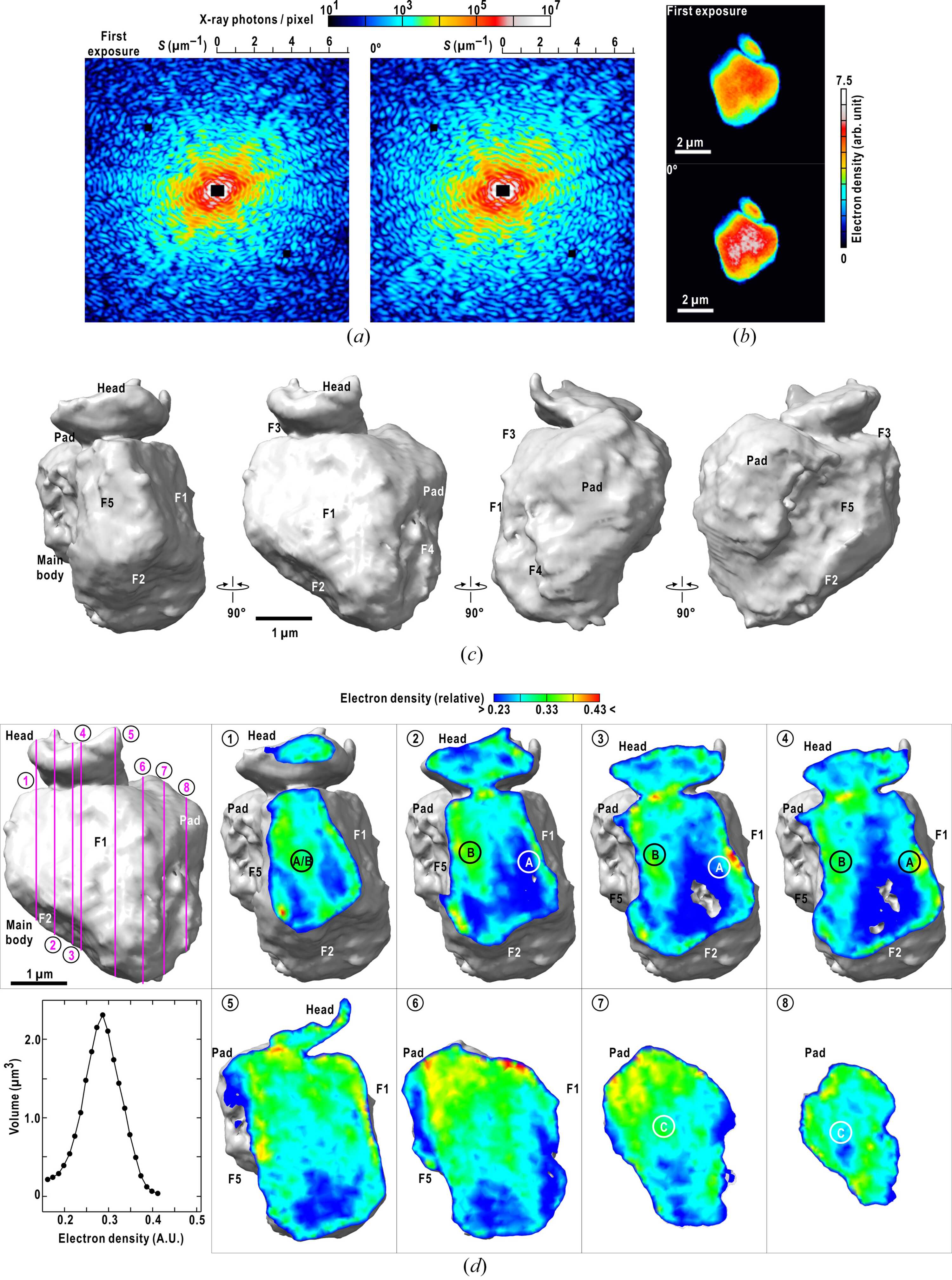

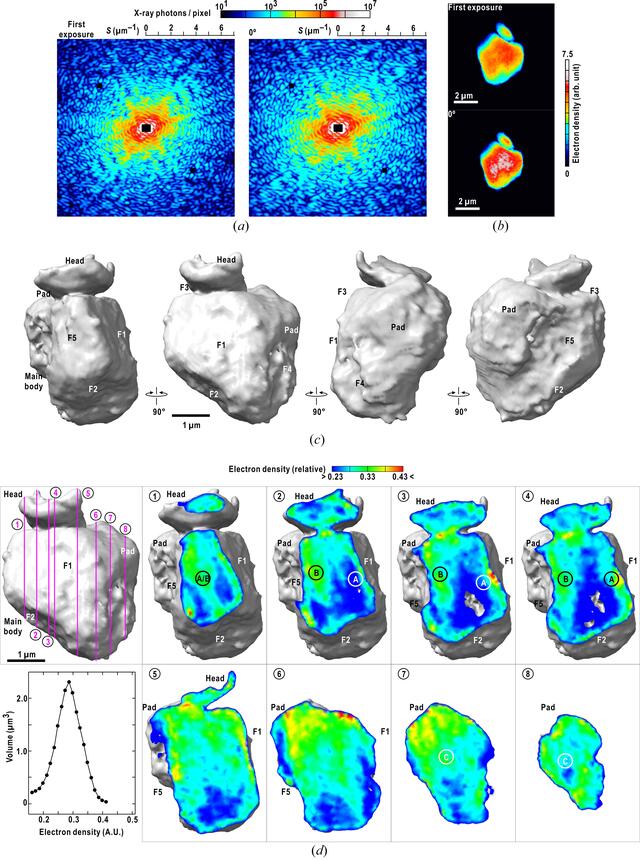

(a) Diffraction patterns collected at 298 K (left) and at 77 K (right) after the irradiation of 5.5 × 107 Gy. (b) Projection electron density maps retrieved from the diffraction patterns in panel (a). (c) Surface structure of a 3D map reconstructed from a set of diffraction patterns of the warmed-and-cooled toner particle. The diffraction patterns were collected from −80° to +80° at an angular step of 0.5°. The X-ray flux was 3.1 × 1010 photons s−1 and the exposure time was 100 s. Therefore, the diffraction intensities were scaled to those of the first experiment. (d) Sectional views of the 3D map. Panels (c) and (d) were prepared using ChimeraX (Pettersen et al., 2021View full citation).
