Figure 1

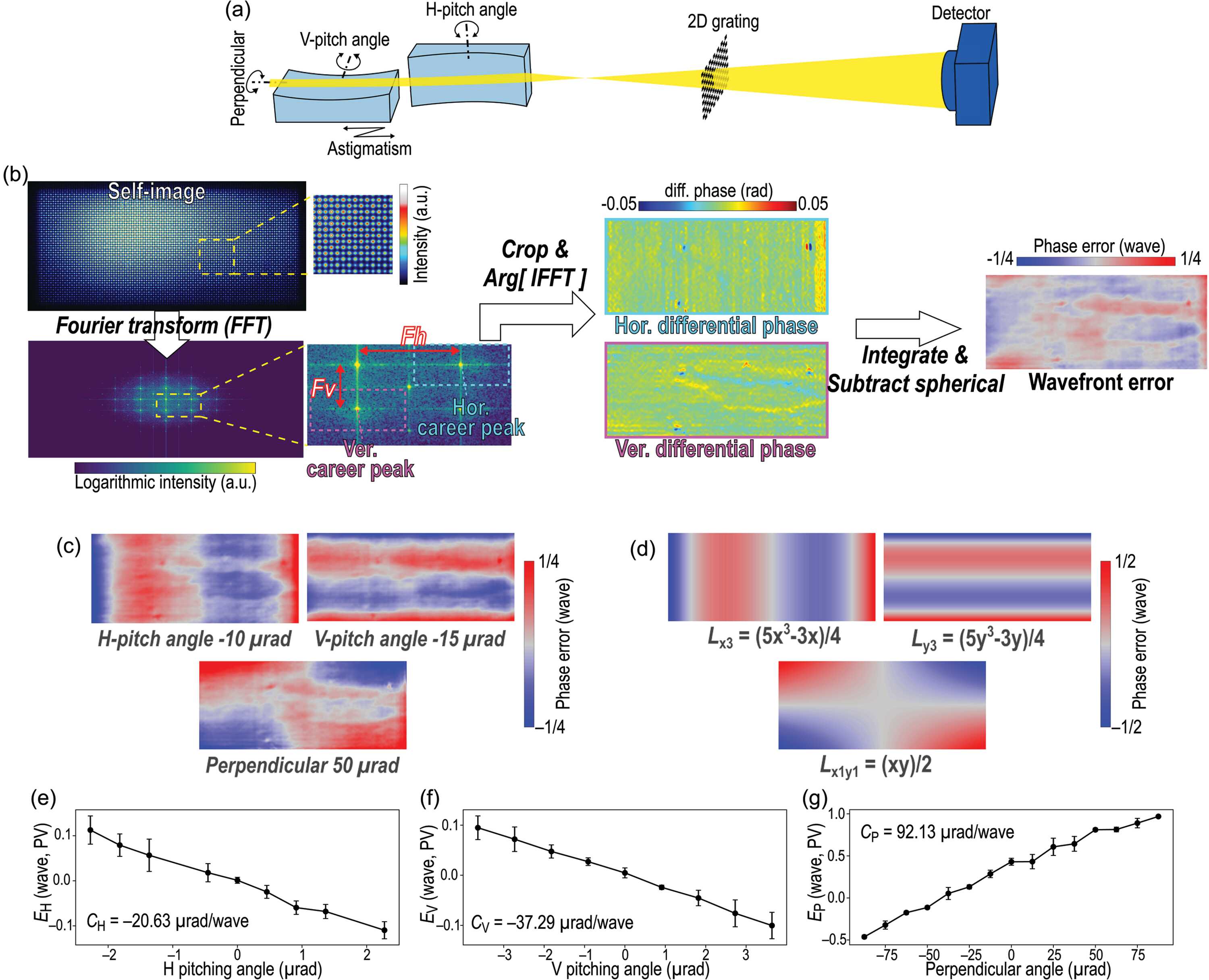

(a) Schematic illustration of the KB nanofocusing mirrors and a single-grating interferometer equipped in EH5 on BL3 at SACLA. (b) Workflow for calculating the wavefront error from the acquired self-image, based on the Fourier transform method. The abbreviations `Ver.' and `Hor.' indicate the vertical and horizontal directions, respectively. (c) Wavefront errors with purposely induced alignment errors. (d) Calculated profiles of the Legendre polynomials in equations (2)[link]–(4)[link][link]. (e)–(g) Obtained relationships between the fitted amplitudes of wavefront errors (EH, EV and EP) and corresponding angular misalignments for (e) horizontal pitching angle, (f) vertical pitching angle and (g) perpendicularity.
