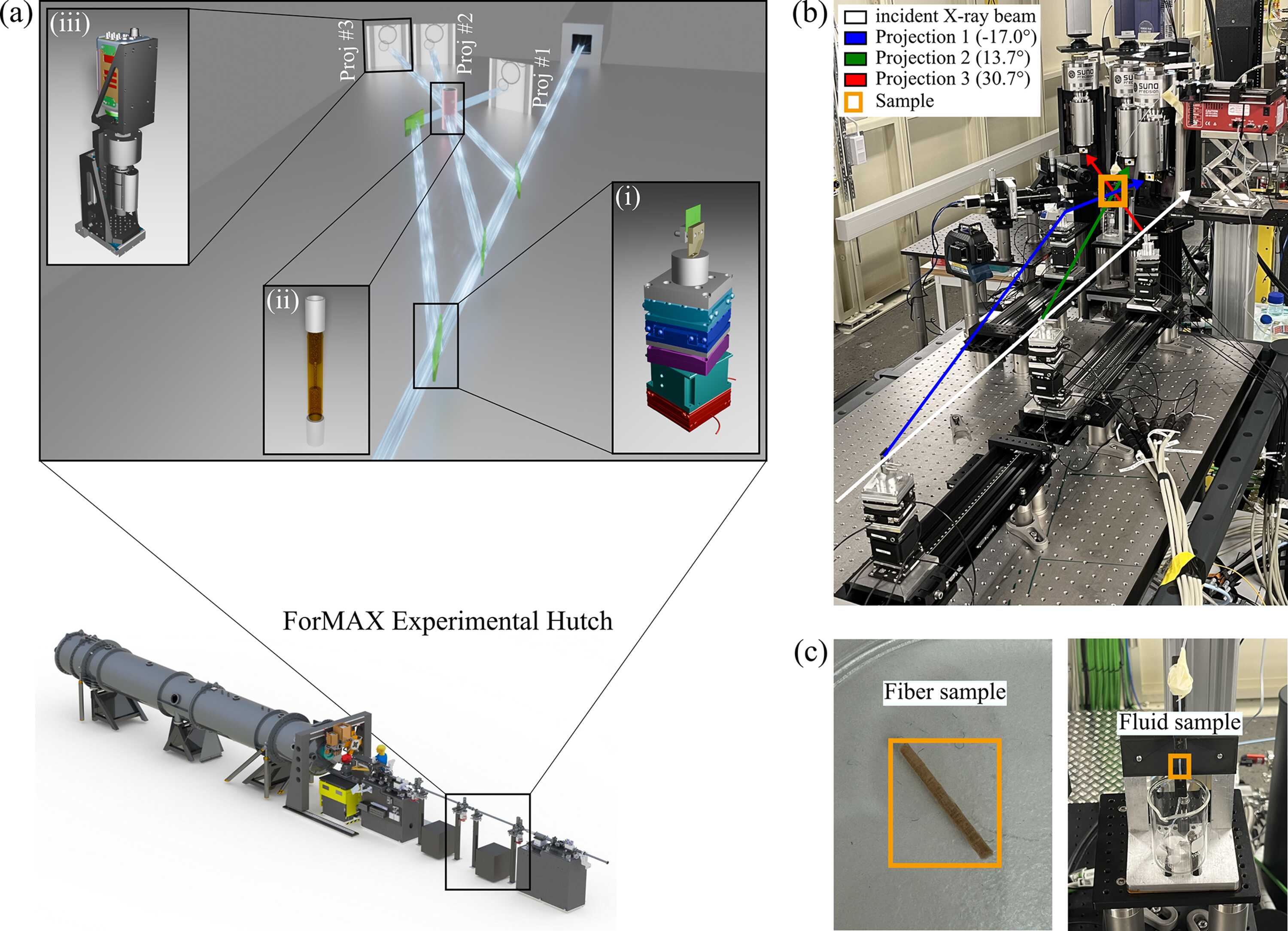

Figure 1
The XMPI setup at ForMAX. (a) The setup consists of beam splitters mounted on nanopositioners (i) for the generation of beamlets through spectral and amplitude splitting, that intersect at the sample environment position (ii), and an indirect detector system for each projection (iii). This illustration showcases an example study where the dynamics of interest concern the flow of particles through a capillary. The setup was commissioned upstream of the main sample station of ForMAX by modifying the box-marked segment in the beamline sketch. (b) A photograph of the setup in the ForMAX beamline with annotated projections. (c) Examples of samples that can be examined using XMPI: fiber (left) and fluid samples (right).
