Figure 3

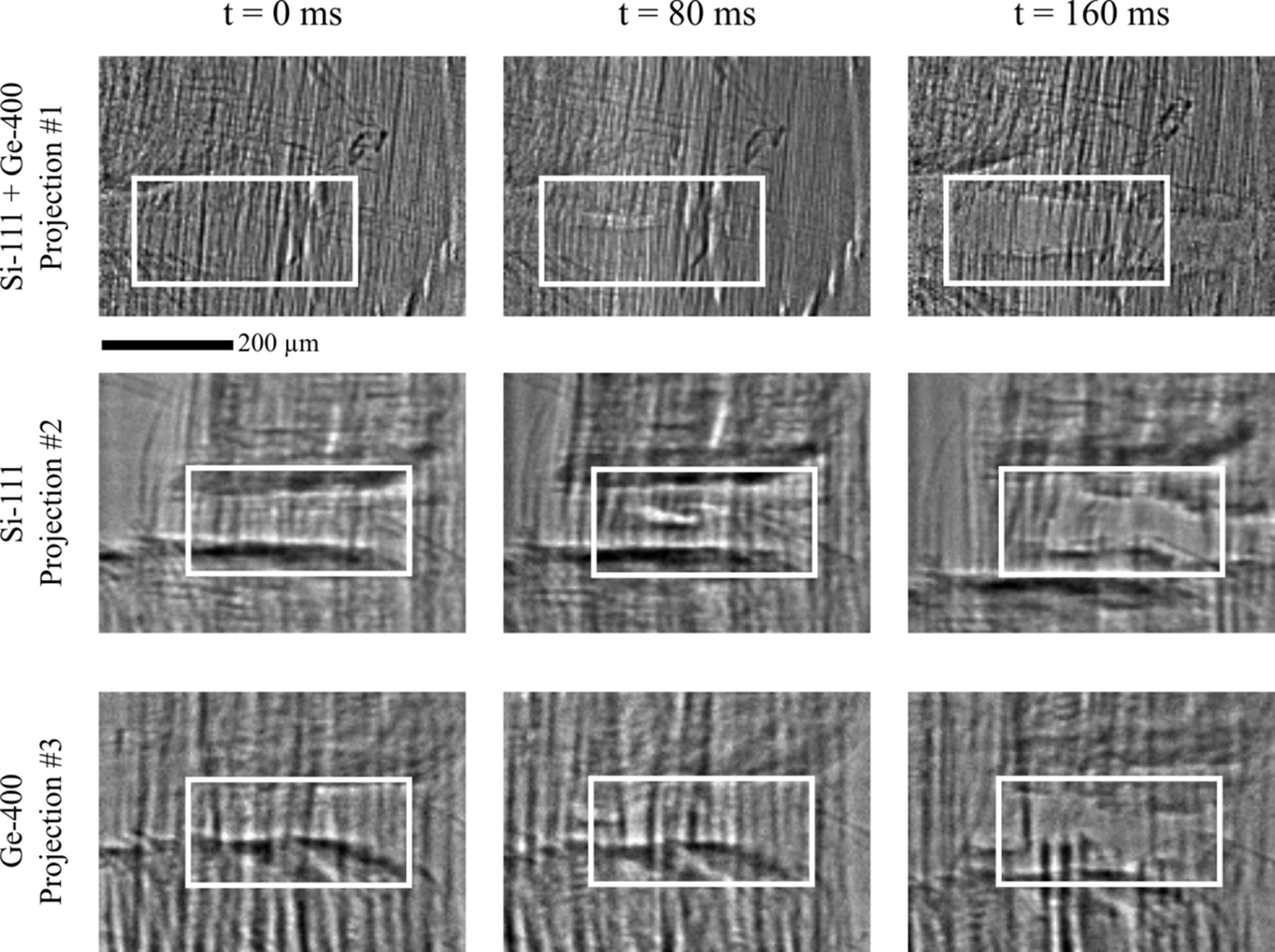

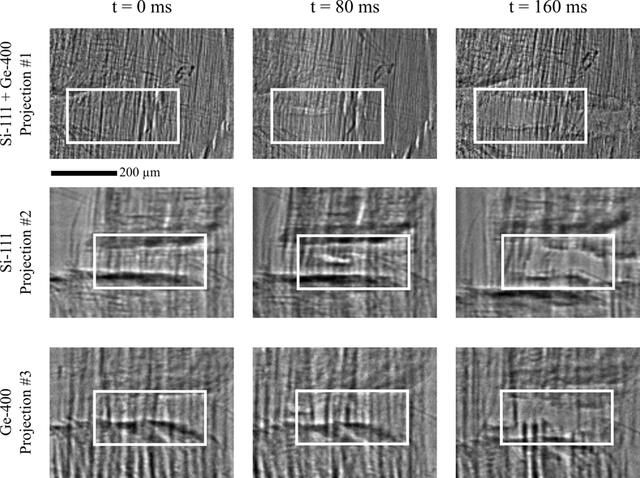

XMPI projections of wood fiber failure recorded at 12.5 kHz with an energy of 16.5 keV. The failure region is highlighted by a box. Three representative time stamps were selected (0 ms, 80 ms and 160 ms). The projections were flat-field-corrected using conventional flat-field correction. Projection #1 with −17.0°, #2 with 13.7° and #3 with 30.7° with respect to the primary beam axis were generated with a recombiner (Si-111 + Ge-400), Si-111 and Ge-400, respectively.
