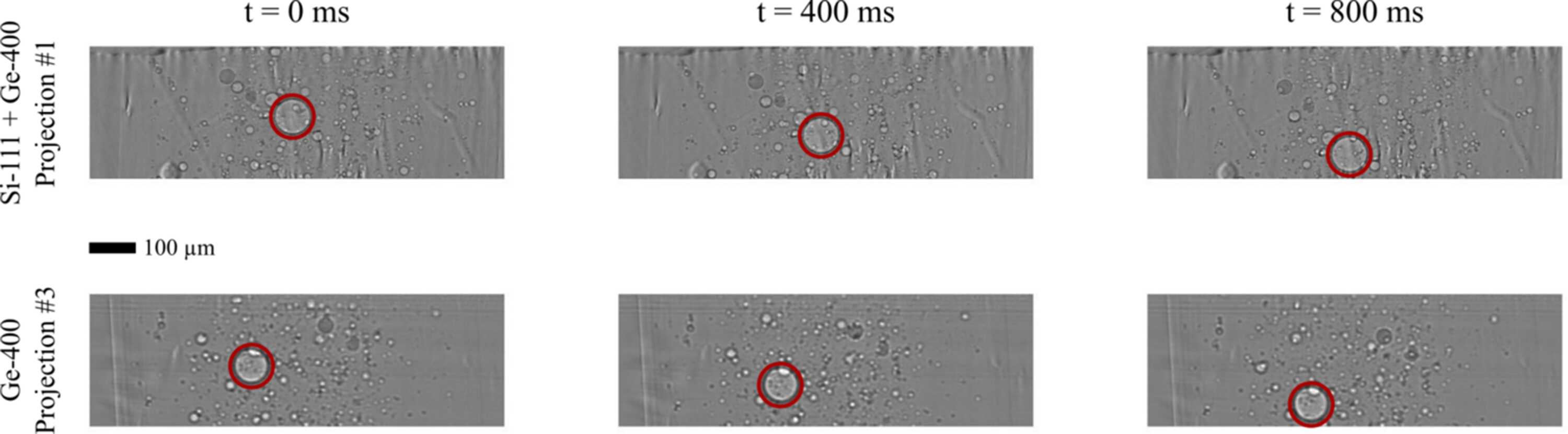

Figure 4
XMPI projections of SHGS suspended in glycerol recorded at 40 Hz with an energy of 16.5 keV. Three representative time stamps were selected (0 ms, 400 ms and 800 ms). The projections were flat-field-corrected using conventional flat-field correction. Projection #1 with −17.0° and #3 with 30.7° with respect to the primary beam axis were generated with a recombiner (Si-111 + Ge-400) and Ge-400, respectively. The same particle is highlighted in red in each frame to illustrate its movement with time.
