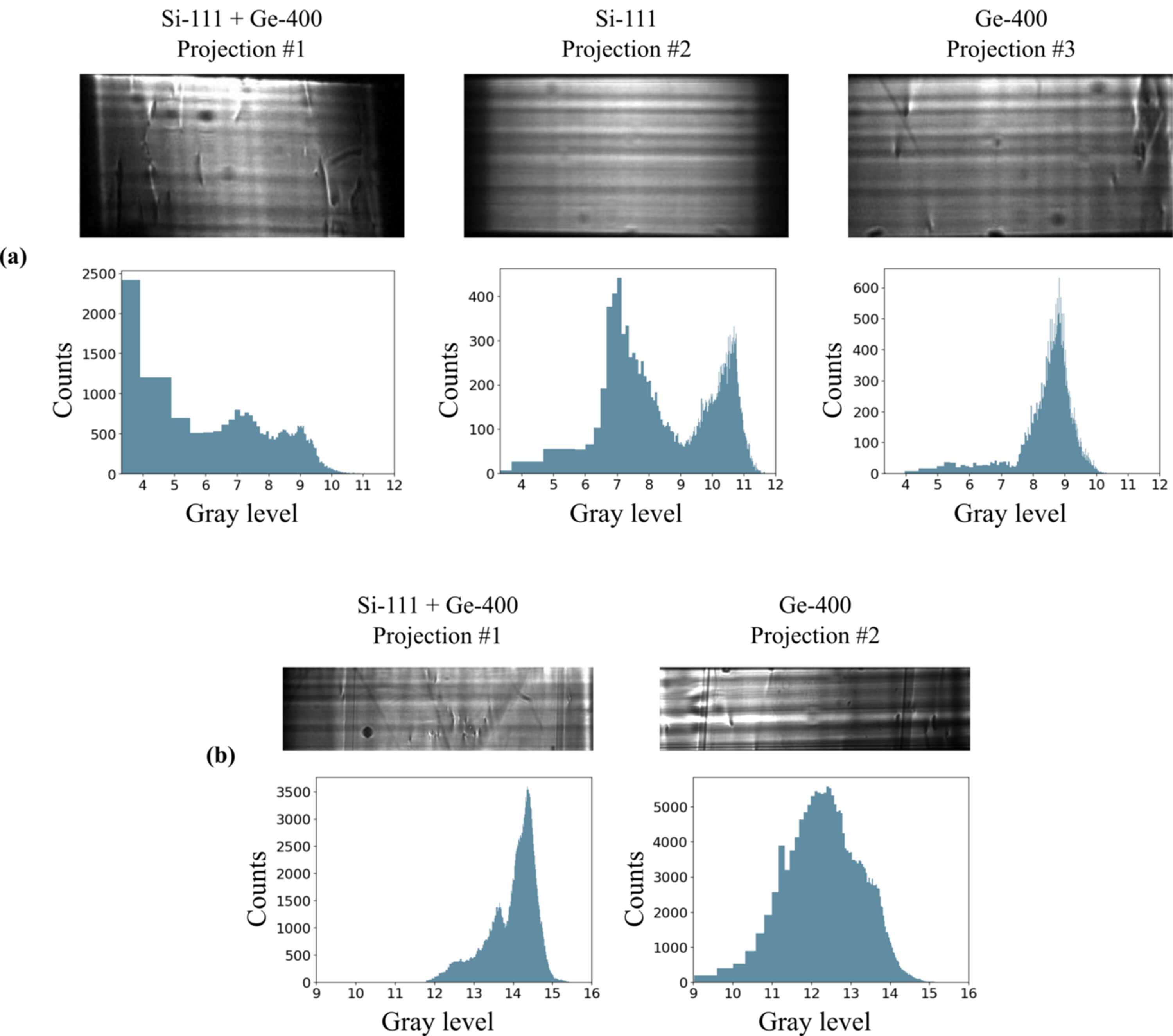

Figure 5
Flat-field images of two different experiments acquired at 12.5 kHz (a) and 40 Hz (b) with corresponding histograms. The x axis is log-scaled with base 2, and the tick labels indicate the exponent. (a) The high temporal resolution configuration covers an ADC range of 12 bit (Projection #1), 12 bit (Projection #2) and 11 bit (Projection #3). The full ADC range of the Photron Nova S16 is 12 bit. (b) The high spatiotemporal resolution configuration covers an ADC range of 16 bits for both projections, i.e. the full ADC range of the Andor Zyla 5.5.
