Figure 13

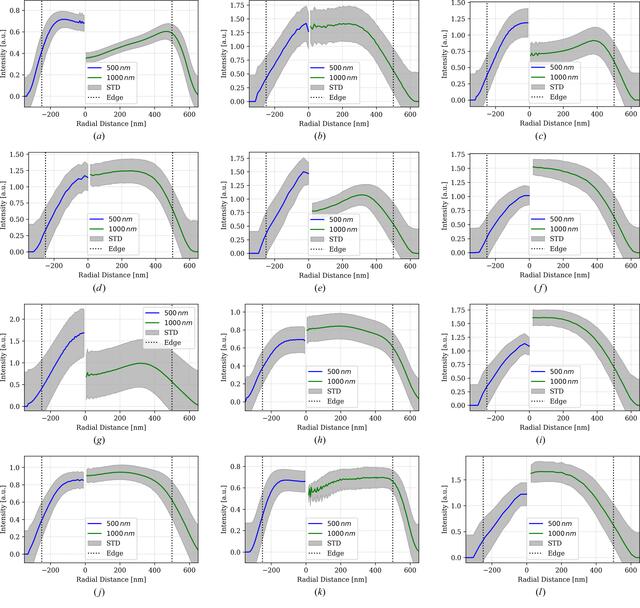

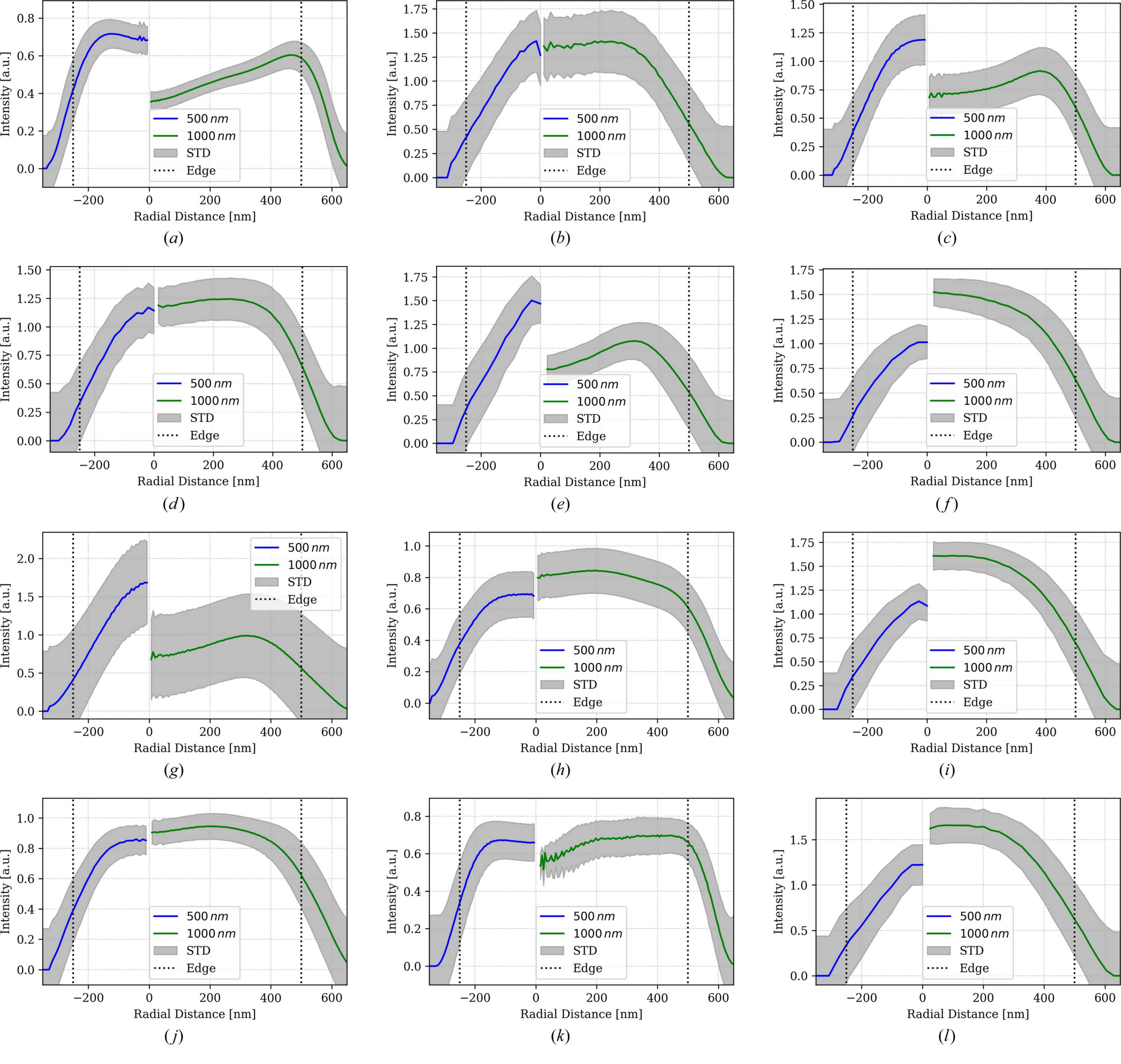

Average radial intensity profiles (calibrated to the mean and STD of air) from center to rim of the small (blue) and large (green) spheres: (a) Zeiss, (b) XRM Pt-BT, (c) XRM W-NT, (d) SPring-8 micro, (e) SPring-8 nano ab 53 nm, (f) SPring-8 nano ph 52 nm, (g) SPring-8 nano ab 22.5 nm, (h) SPring-8 nano ph 18 nm, (i) ESRF 50 nm, (j) ESRF 25 nm, (k) ESRF 15 nm, (l) DESY. The gray bands mark the intensity scattering. These profiles serve as the basis for the edge spread function analysis described in Section 4.4[link].
