Figure 4

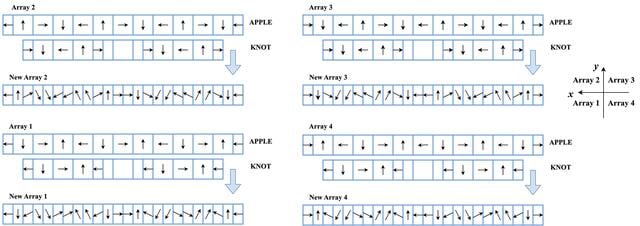

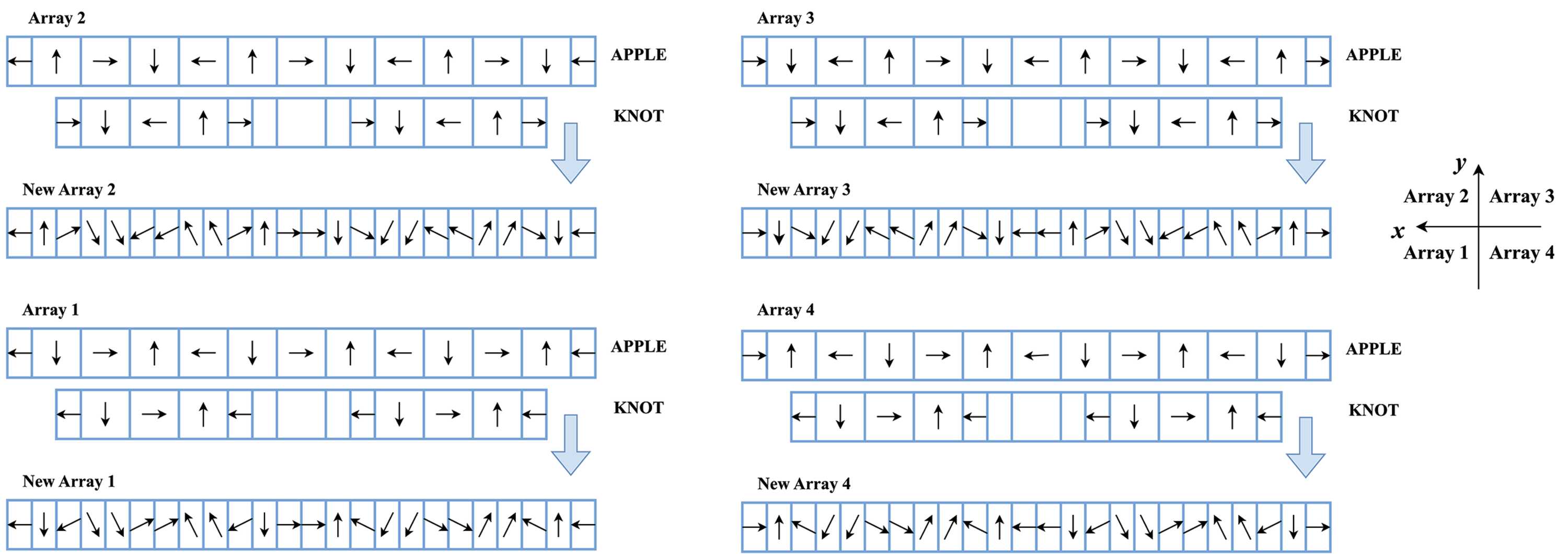

Schematic diagram of magnet merging of APPLE and KNOT arrays for the novel AK undulator. The arrow in each magnet block represents the magnetization direction, which is calculated from the field strength ratio of the APPLE to KNOT components.
