Figure 3

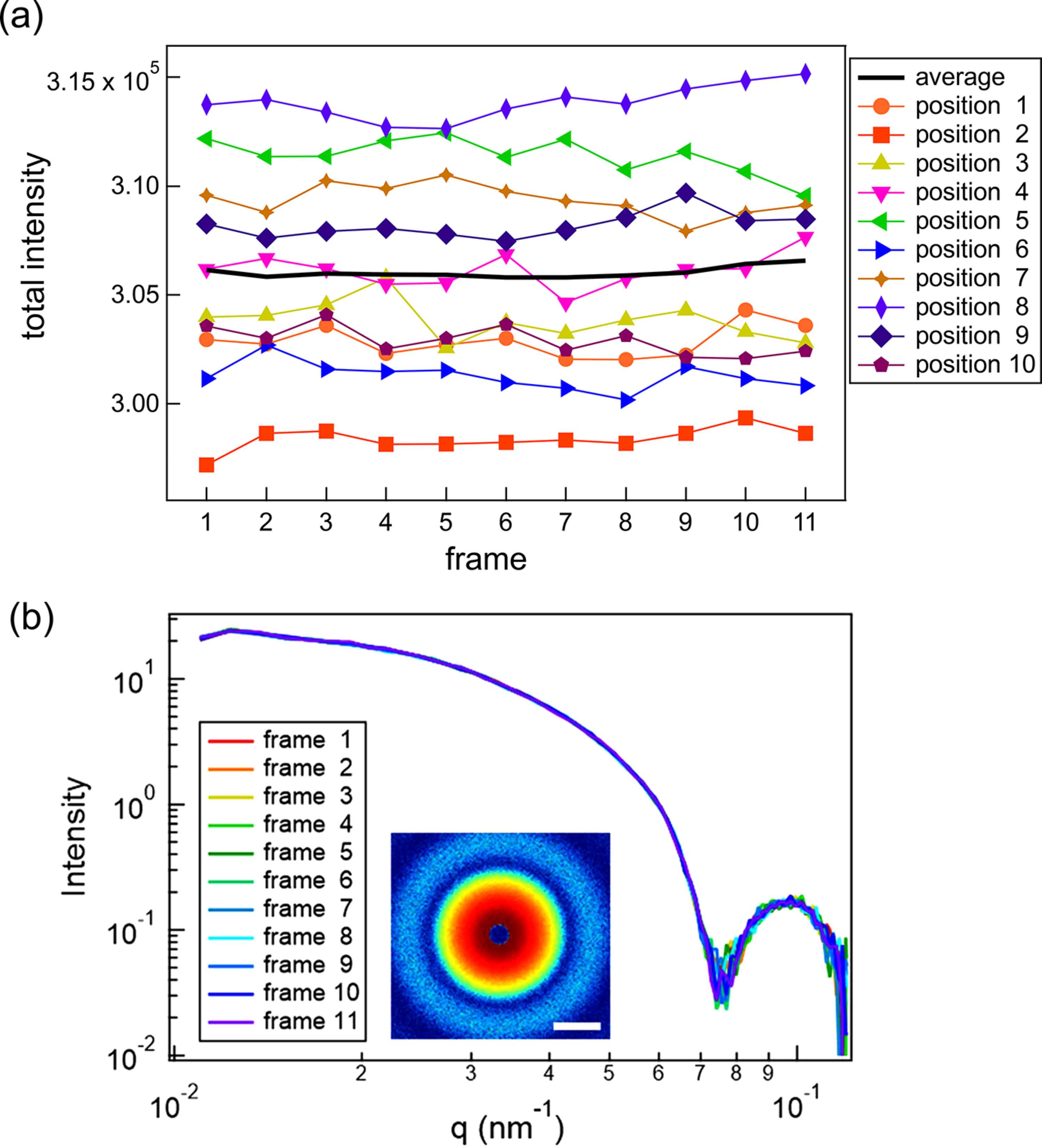

(a) Frame dependence of the total scattered intensity obtained from log-pulse time-resolved measurements. (b) Representative scattering profiles obtained from 11 frames, with the corresponding summed image. The intensity is displayed on a logarithmic scale and the scale bar corresponds to 0.05 nm−1.
