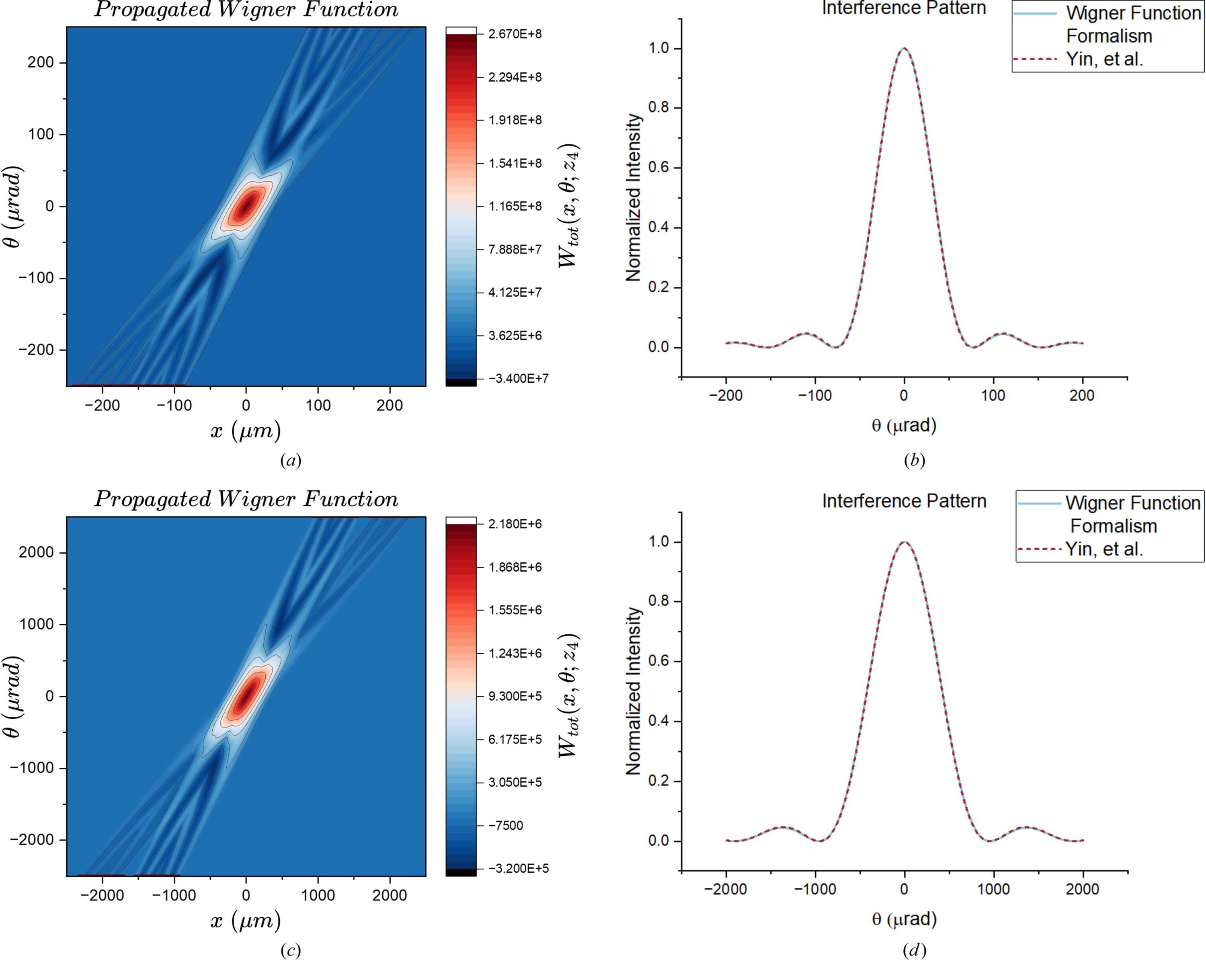

Figure 4
Comparison of the propagated, coherent WDF (on the left) projections versus the interference pattern derived in Yin et al. (2000View full citation). The two curves agree with each other. The drift lengths for both cases are fixed: z1 = 10 cm, z2 = 30 cm, z4 = 0.5 m, along with OPD = 1 cm. Parameters for (a) and (b): λ = 50 Å, m2 = 1, σx = 75 µm, a = 13 µm, N = 5. Parameters for (c) and (d): λ = 5000 Å, m2 = 1, σx = 750 µm, a = 75 µm, N = 7.
