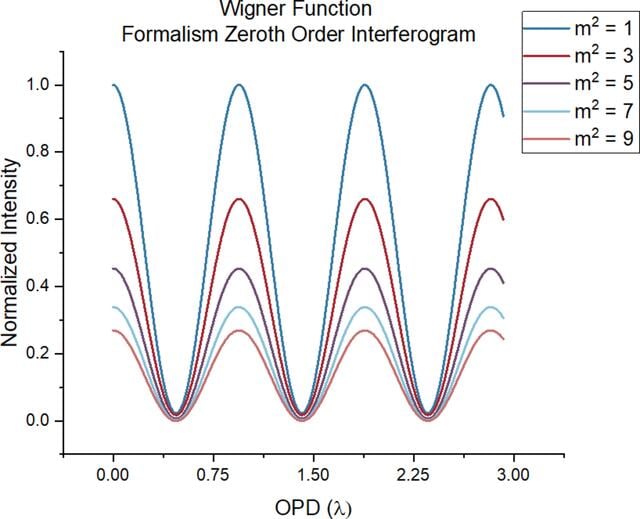

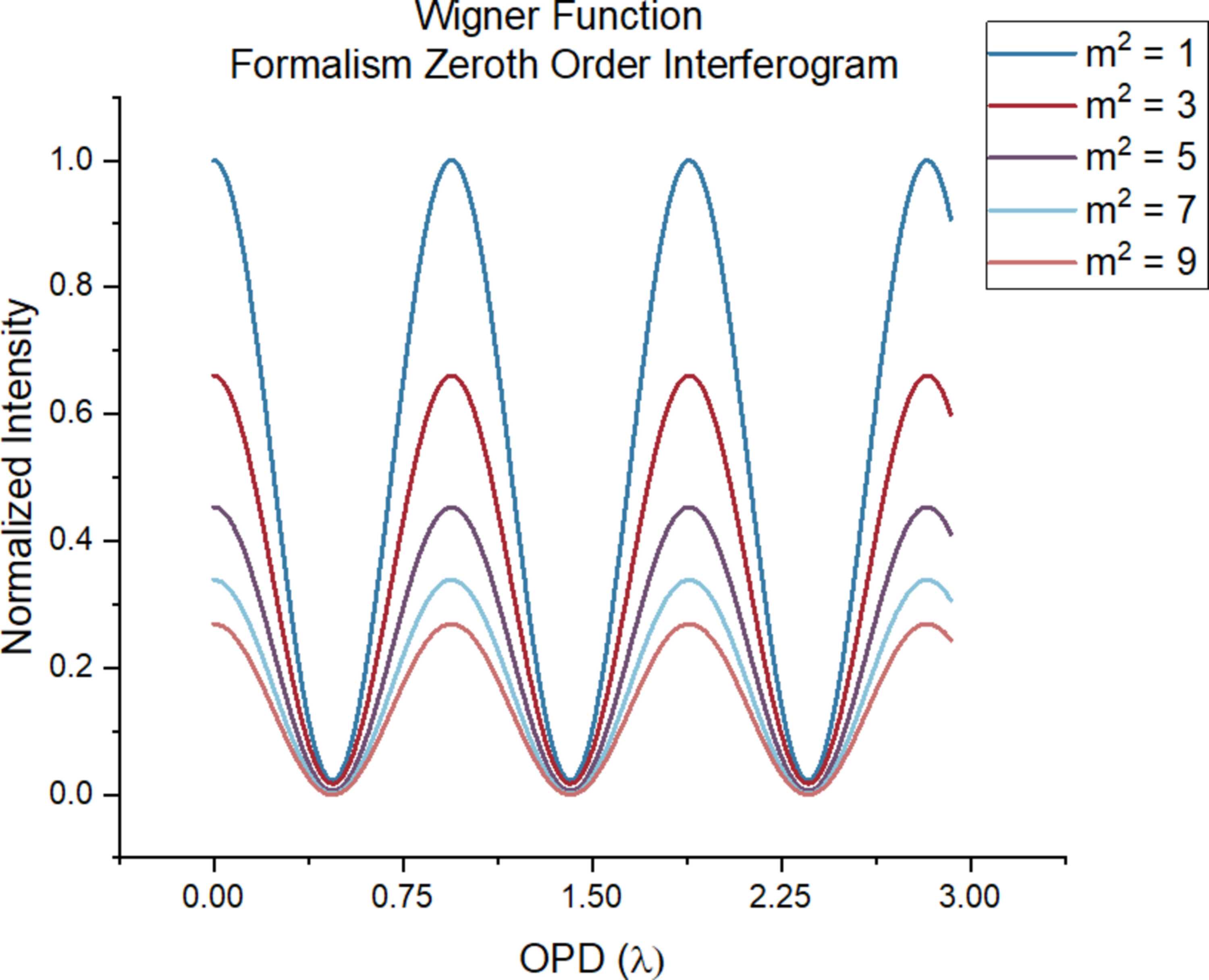

Figure 7
Interferogram with various values of m2. All interferograms are normalized to the m2 = 1 case to demonstrate the effect of deviation from coherence. Fixed parameters include: λ = 4.3 nm, N = 7, a = 5 µm, σx = 20 µm. For parameters of z1, see Table 3[link].

Journal logoJOURNAL OF
SYNCHROTRON
RADIATION
ISSN: 1600-5775
Volume 33| Part 2| March 2026| Pages 362-373
https://doi.org/10.1107/S1600577525011452
