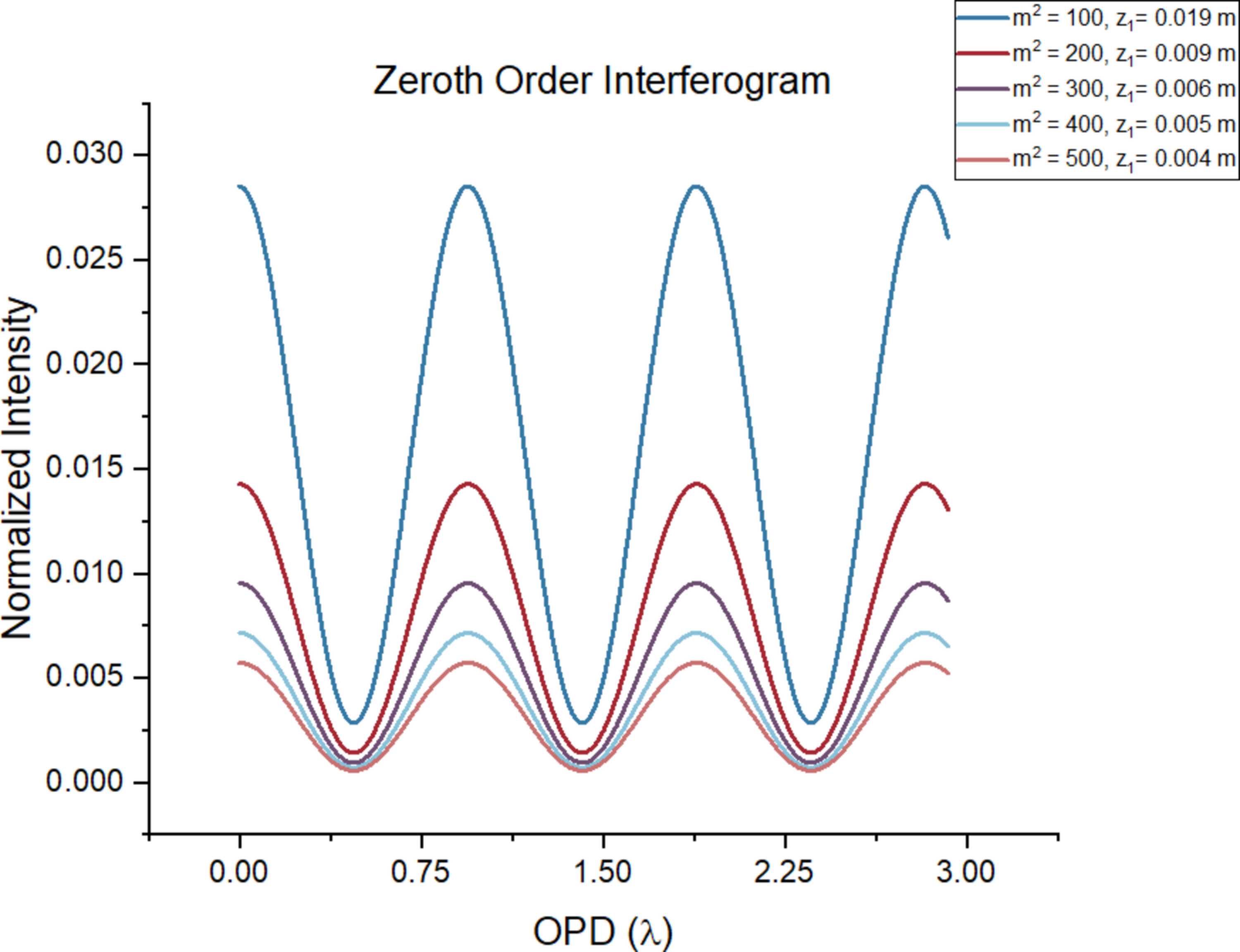

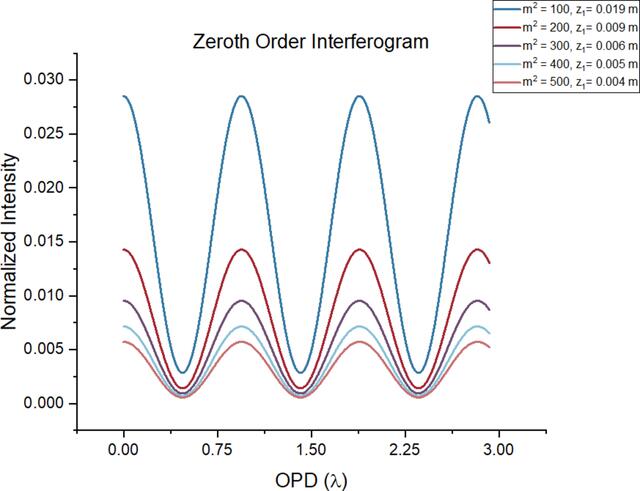

Figure 8
The same parameters as those presented in Fig. 7[link] are used with m2 in this case equal 100, 200, 300, 400 and 500. In the legend, the corresponding z1 in units of meters (calculated from matching the angular aperture with the FWHM of the incident radiation) is also presented.
