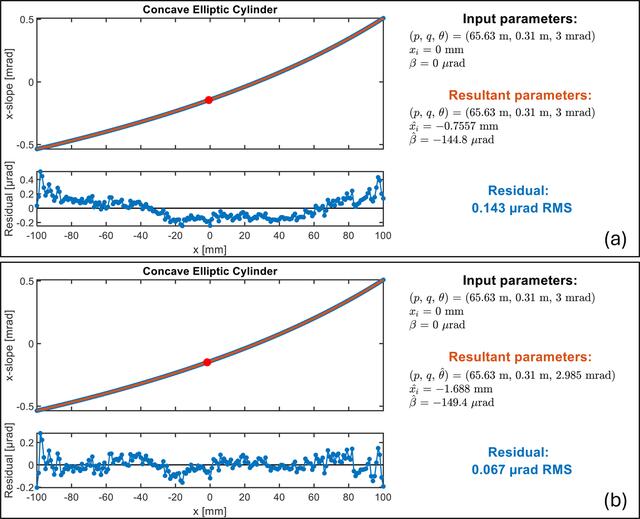

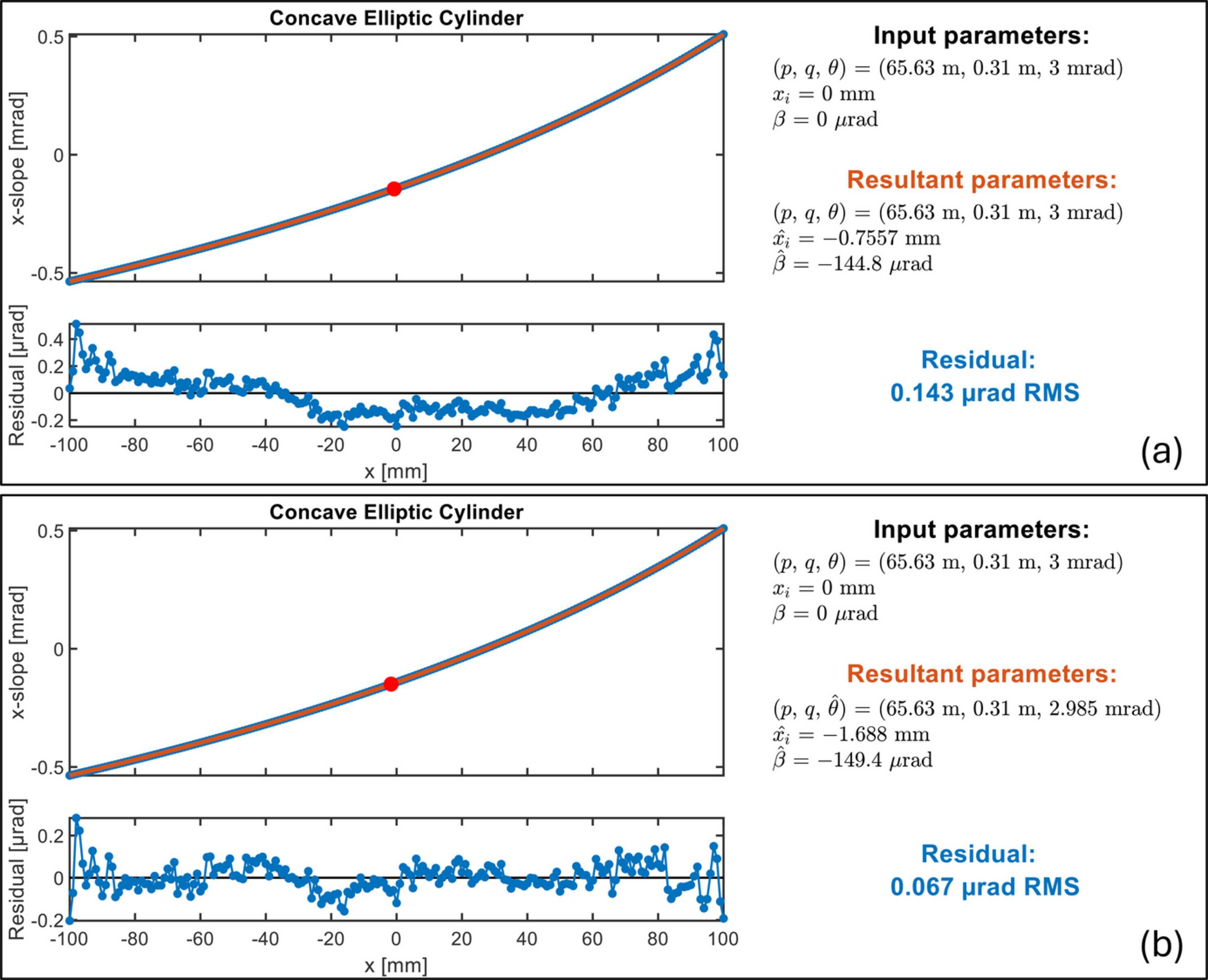

Figure 5
Fitting example with concave elliptic cylinder slope data. The red dot indicates the location of the chief ray intersection from the fitting. (a) Fitting results with fixed p, q, and θ, and optimized xi and β. (b) Fitting results by including θ in the optimization to further minimize coma-like residuals (a second-order curve in slope).
