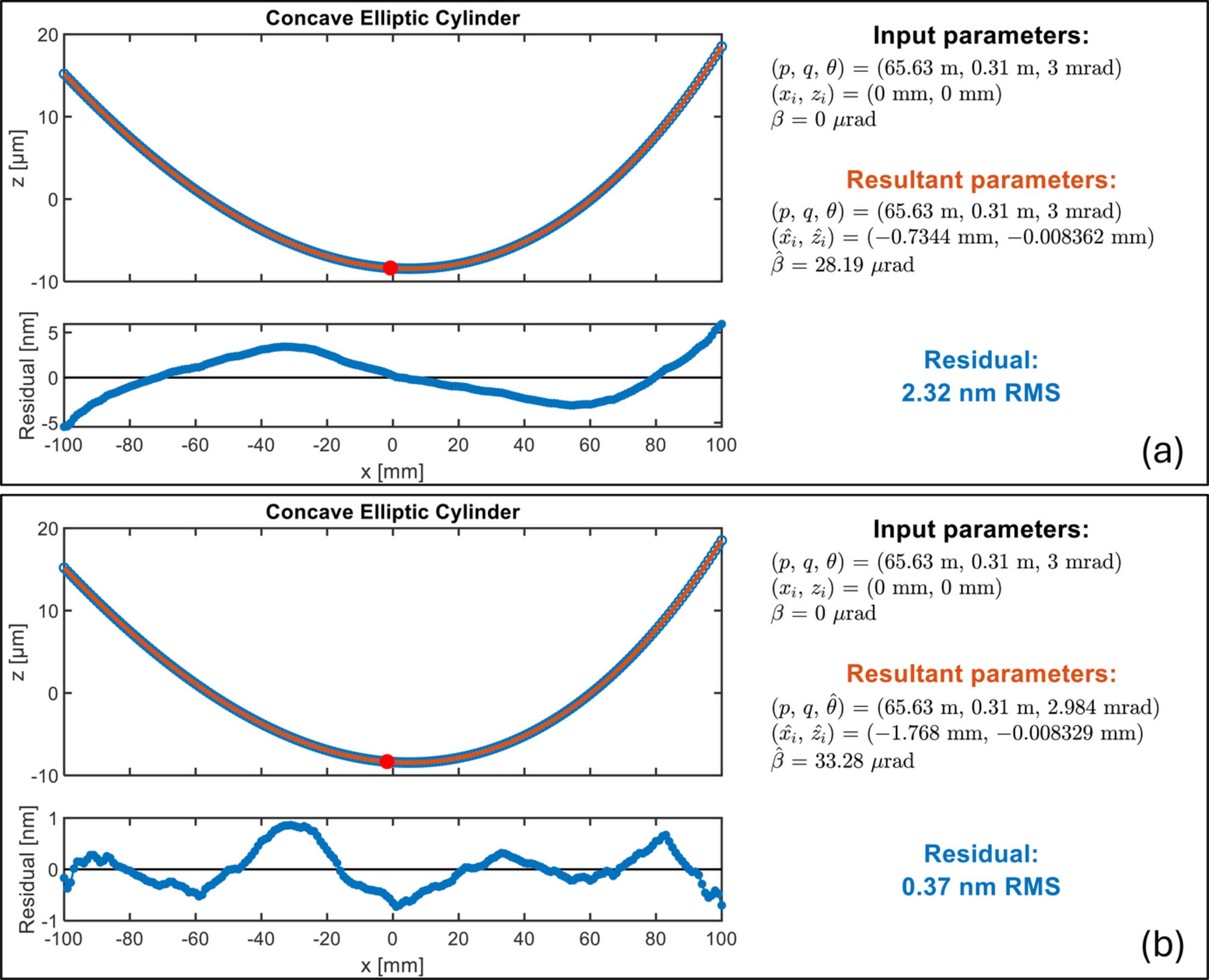

Figure 6
Fitting example with concave elliptic cylinder height data. The red dot indicates the location of chief ray intersection from the fitting. (a) Fitting results with fixed p, q, and θ, and optimized xi and β. (b) Fitting results by including θ in the optimization to further minimize coma-like residuals.
