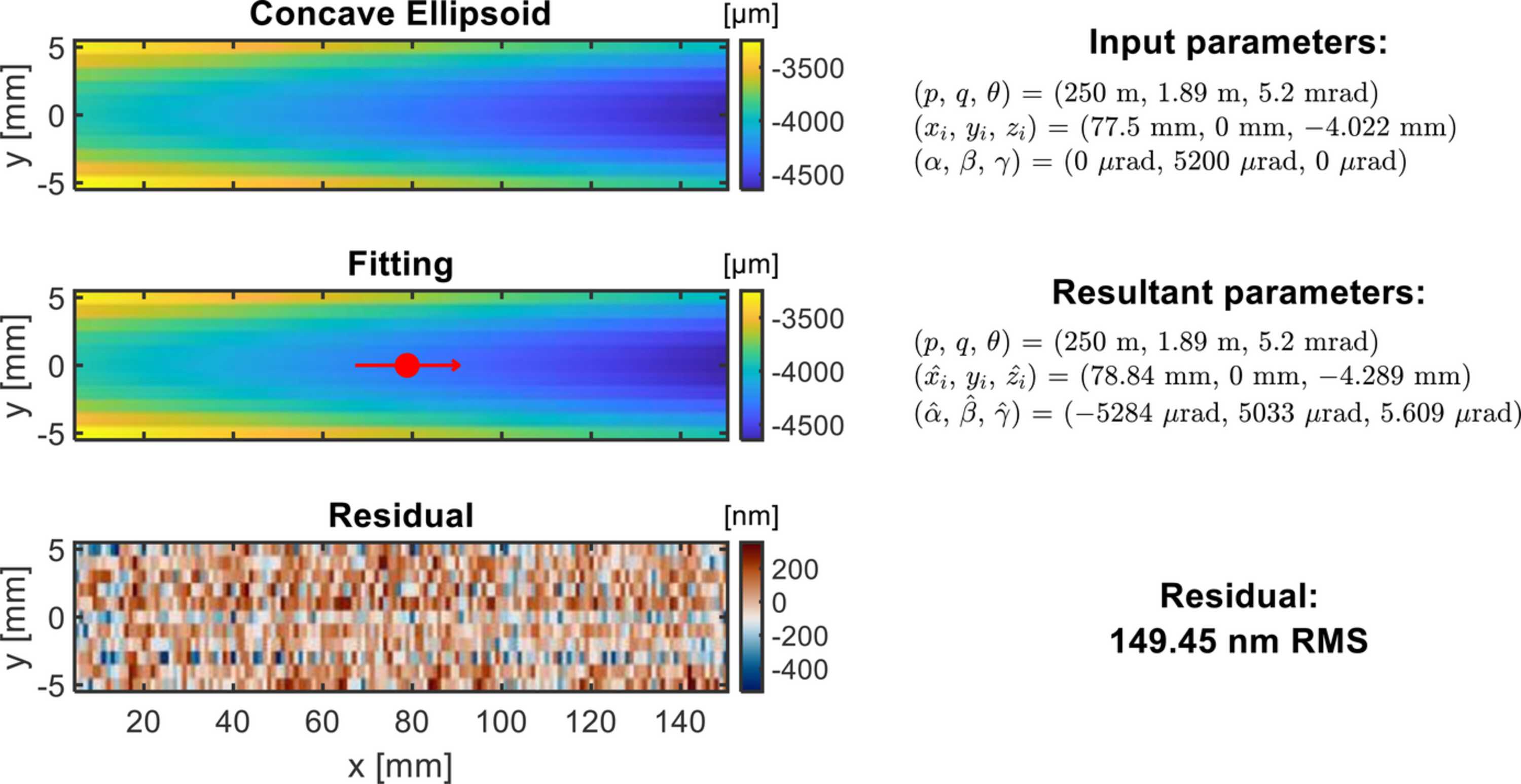

Figure 8
Fitting example with concave ellipsoid height data. The red dot indicates the location of the chief ray intersection from the fitting. The fitting is carried out with fixed p, q, θ, and yi, and optimized xi, zi, α, β, and γ.
