Figure 9

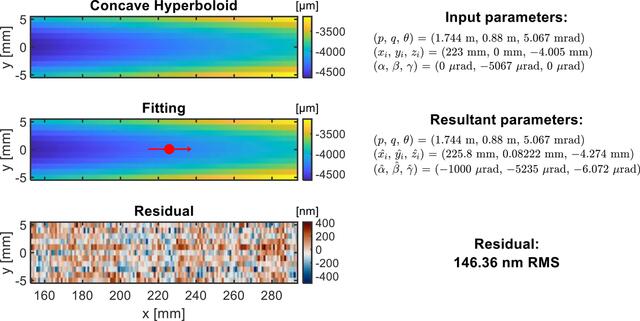

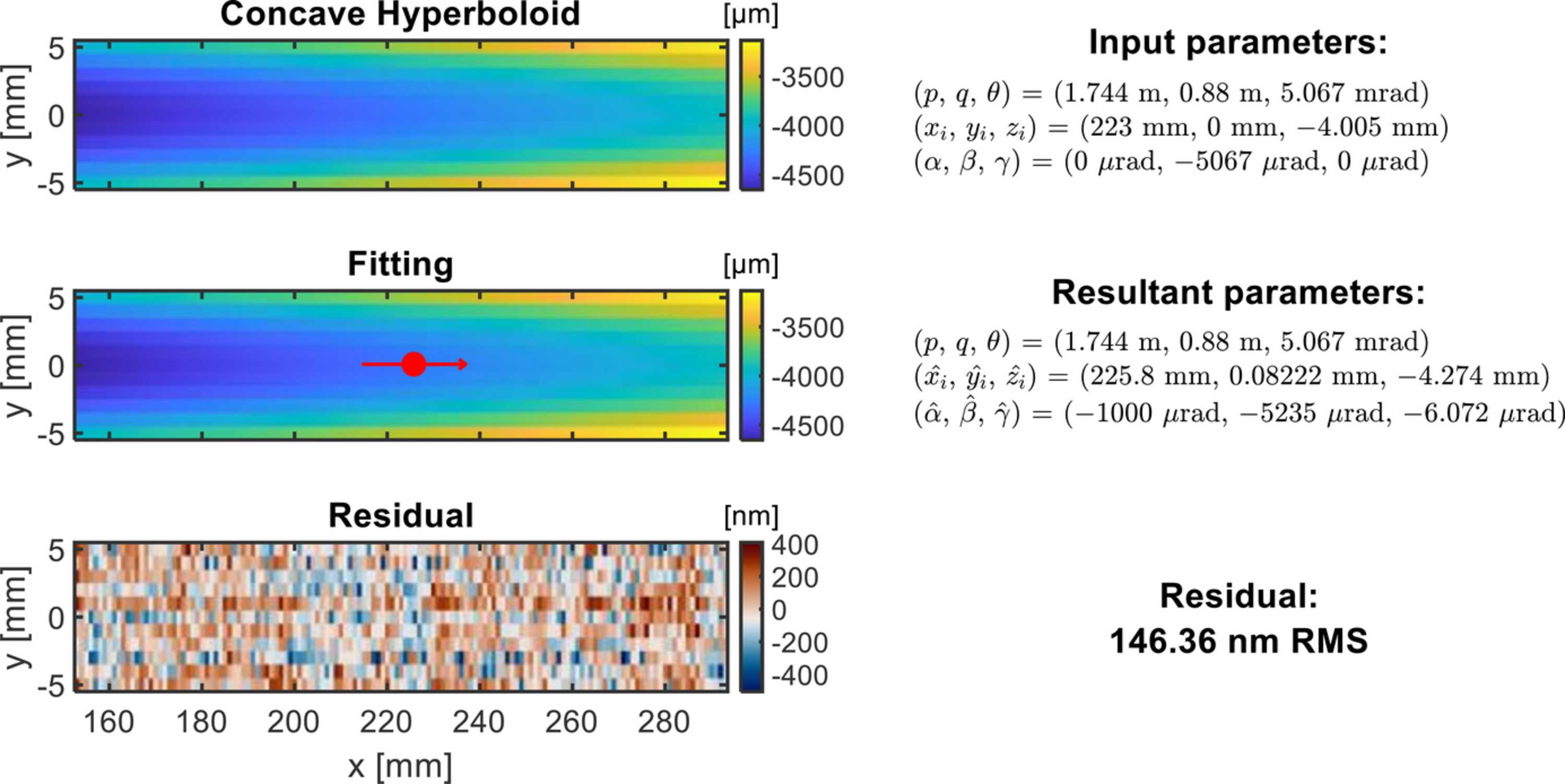

Fitting example with concave hyperboloid height data. The red dot indicates the location of the chief ray intersection from the fitting. The fitting is carried out with fixed p, q, and θ, and optimized xi, yi, zi, α, β, and γ with boundaries yi ∈ [−0.5 mm, 0.5 mm] and α ∈ [−1 mrad, 1 mrad].
