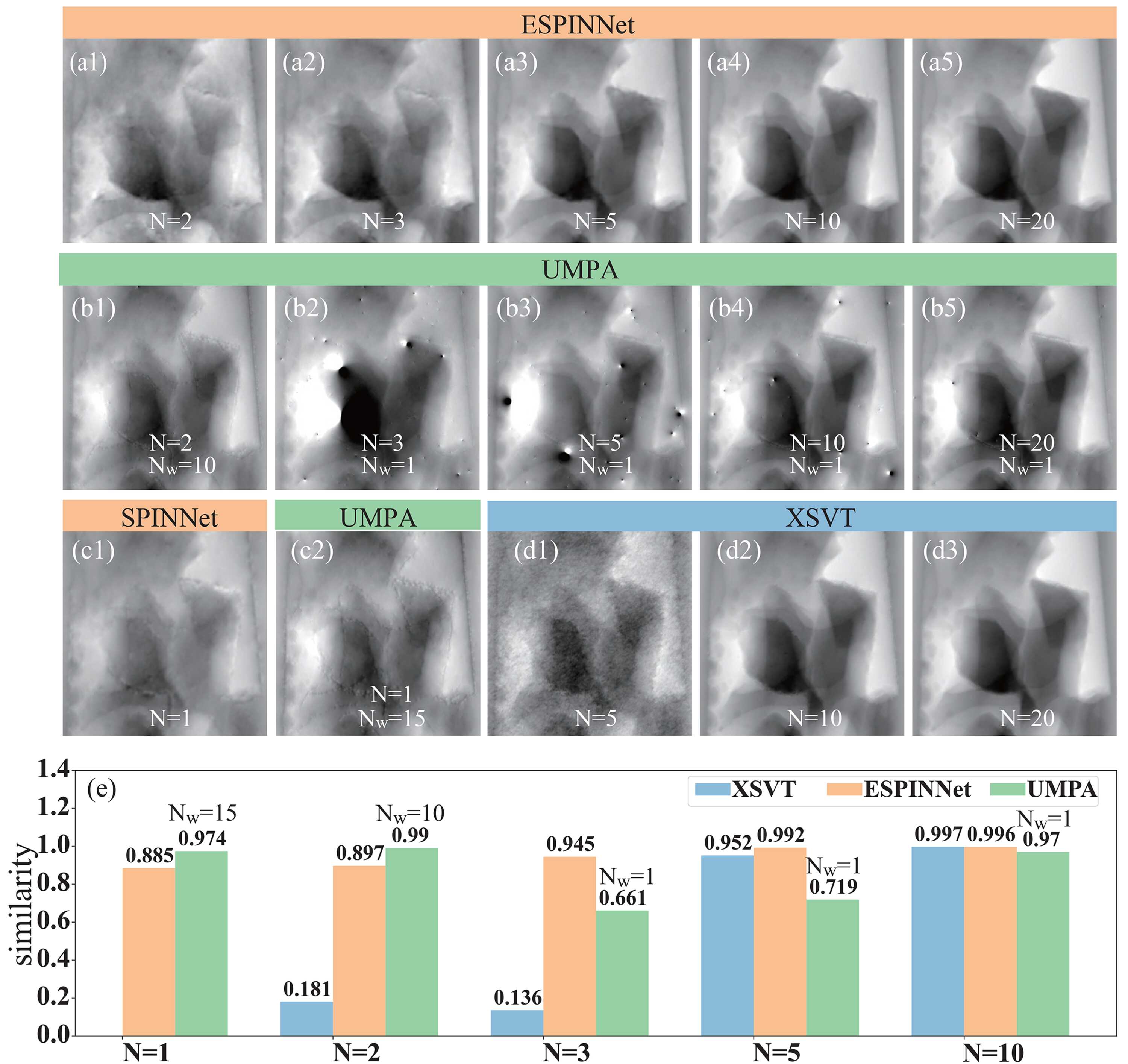

Figure 6
Reconstruction comparison with varying scan number N. (a1–a5) Recovered phase using the ESPINNet with N = 2, 3, 5, 10, 20; (b1–b5) Recovered phase using the UMPA with N = 2, 3, 5, 10, 20, while the window size used in UMPA is 10 for N = 2 and 1 for others; (c1) recovered phase using SPINNet with N = 1; (c2) recovered phase using UMPA with N = 1 and Nw = 15 [Nw is the analysis window size as described by De Marco et al. (2023View full citation)]; (d1–d3) recovered phase using the XSVT method with N = 5, 10, 20; (e) similarity of the recovered phase using different scan number N compared with scan number N = 20 for XSVT, UMPA, and ESPINNet. Data were acquired at the 1BM beamline of APS.
