Experience with the Jungfrau-1M detector at Diamond Light Source

Matheson, J.; Axford, D.; Bergamaschi, A.; Carulla, M.; Devenish, N.; Frisina, N.; Hinger, V.; Kedych, V.; Lane, C.; Mozzanica, A.; Gimenez-Navarro, E.; O'Hea, J.; Oram, D.; Owen, R.L.; Perl, D.; Prescott, A.; Schmitt, B.; Scully, S.; Taylor, A.; Yendell, G.; Winter, G.

doi:10.1107/S1600577526000342

Journal of Synchrotron Radiation Journal of
Synchrotron Radiation

IUCr IT WDC

home archive editors for authors for readers submit open access

view article

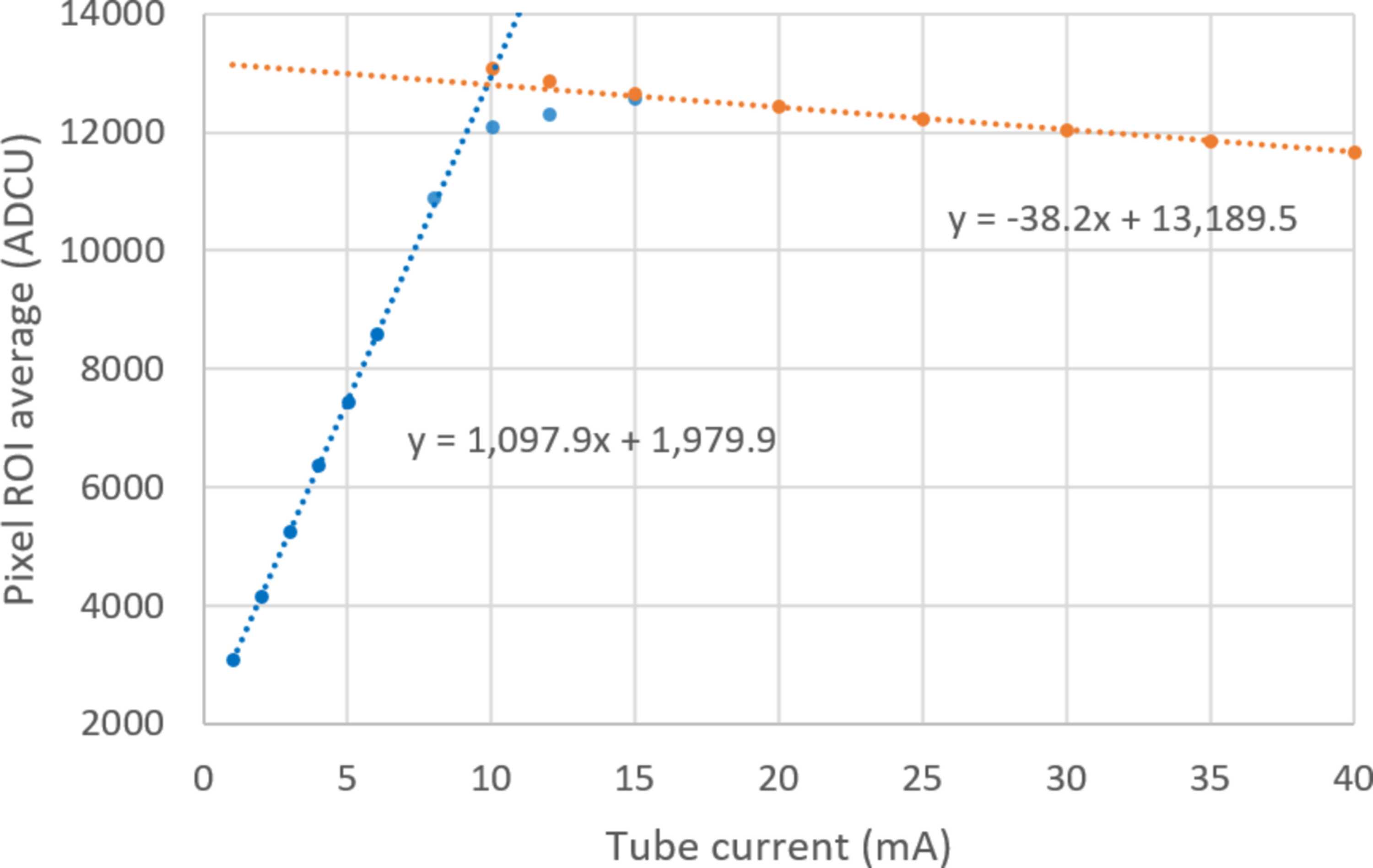

Figure 10
Output response in raw ADCU versus X-ray tube current. Note that the gain is positive for G0 (blue) and negative for G1 (orange), by design. Linear fits are shown to the two gain regions, excluding points from the switching region.
